Hoshizaki DCM-500BAH-OS Cubelet Icemaker, Air-Cooled, Hands Free Dispenser, Built In Storage Bin, 500lb/24h, High Production Capacity, Durable Stainless Steel Exterior, Energy-Efficient Operation, CleanCycle12 Self-Cleaning

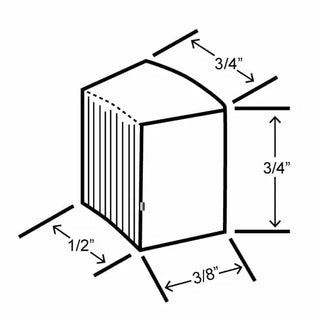

The DCM-500BAH-OS is capable of producing approximately 618 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 40 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Touchless Opti-Serve™ Technology: Features an infrared LED sensor that allows 100% hands-free dispensing for both ice and water—even with opaque containers—minimizing cross-contamination and bacterial transfer.
- High Production Capacity: Produces up to 618 lbs per 24 hours of popular, chewable cubelet (nugget-style) ice.
- Built-In Storage Bin: Equipped with an integrated 40 lb (1.3 cu. ft.) ice storage capacity within a compact footprint.
- CleanCycle12™ Self-Cleaning: Automatically initiates a 15-minute flush cycle every 12 hours to purge sediment and mineral buildup, ensuring clean ice and prolonging unit lifespan.
- Durable Stainless Steel Exterior: Heavy-duty, stainless steel cabinet design built to withstand demanding commercial healthcare, corporate, and foodservice environments.
- Versatile Installation: Designed for countertop placement or can be combined with optional floor stands (Hoshizaki SD-450 or SD-500) for freestanding use.
- Energy-Efficient Operation: Consumes only 5.62 kWh per 100 lbs of ice (at 90/70°F operating conditions).
Specifications
| Pruduct Overview | Details |
| Electrical Supply | 115V / 60 Hz / 1-Phase |
| Amperage | 12.9 Amps |
| Max Fuse / HACR Breaker | 20 Amps |
| Voltage Range | 104V – 127V |
| Energy Consumption | 5.62 kWh / 100 lbs @ 90/70°F |
| Potable Water Consumption | 12 gal / 100 lbs @ 90/70°F |
| Water Inlet Connection | 1/2″ FPT (Min. 1/4″ Nominal ID Copper Tubing or Equivalent) |
| Drain Outlet Connection | 3/4″ FPT (Min. 3/4″ Nominal ID Hard Pipe or Equivalent) |
| Ambient Temperature Range | 45°F – 100°F (7°C – 38°C) |
| Water Temperature Range | 45°F – 90°F (7°C – 32°C) |
| Water Pressure Range | 10 – 113 psig |
| Refrigerant Charge | R-404A (1 lb. 4.1 oz. / 570 g) |
| Shipping Weight | 255 lbs |
| Warranty | 3 Years Parts & Labor on entire machine (Serial # VxxxxxJ and after) |
