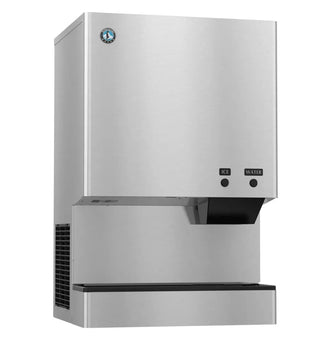

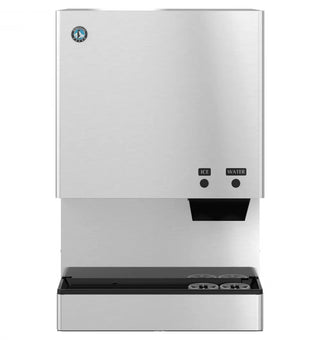

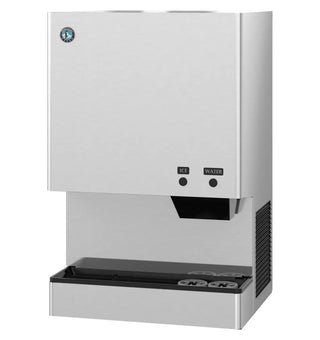

Hoshizaki DCM-500BAK Cubelet Ice Machine And Water Dispenser, Air-Cooled, Built-In Storage Bin, 500lb/24h, Advanced CleanCycle24 Technology, Durable Stainless Steel Construction, Greaseless Stainless Steel Auger, High Daily Ice Production

The DCM-500BAK produces up to 597 lbs. of Cubelet nugget-style ice per day with a built-in storage bin that holds up to 40 lbs. of ice at a time*. This air-cooled dispenser provides ice or water at the push of a button, with a user-friendly design that keeps ice contained and sanitary until it’s needed. The Advanced CleanCycle24™ design automatically performs a two-second purge every hour to maintain cleanliness. Designed for versatility, it can be placed on a countertop or paired with an optional stand.

*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft³ average ice density.

Features

  • High Daily Ice Production: Produces up to 597 lbs. of ice per 24 hours, making it ideal for high-traffic healthcare, foodservice, and commercial settings.
  • Integrated Built-In Storage: Features a 40 lbs. (1.3 cu. ft.) built-in storage bin to ensure ice is readily available during peak demand hours.

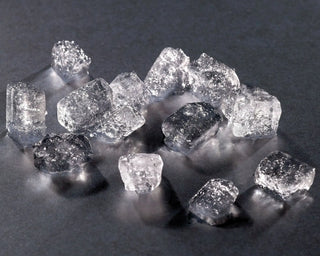

  • Chewable Cubelet Ice: Delivers soft, small nugget-style (cubelet) ice—highly preferred for patient hydration, breakrooms, and beverage service.
  • Dual Ice & Water Dispensing: Simple, intuitive push-button operation allows effortless dispensing of both ice and fresh water from a single unit.
  • Advanced CleanCycle24™ Technology: Automatically performs a 2-second purge every hour to flush out sediment, preventing scale buildup and ensuring maximum hygiene.
  • Durable Stainless Steel Construction: Premium, corrosion-resistant stainless steel exterior designed for commercial durability and easy sanitization.
  • Greaseless Stainless Steel Auger: Built with a heavy-duty stainless steel auger featuring greaseless bearings for reliable, low-maintenance operation.
  • Eco-Friendly R290 Refrigerant: Utilizes environmentally friendly R290 hydrocarbon refrigerant for energy-efficient, sustainable cooling.

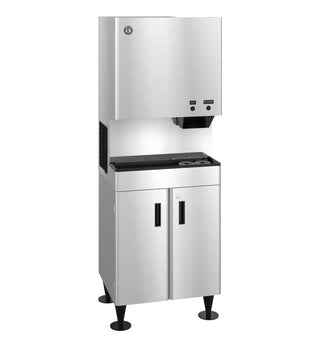

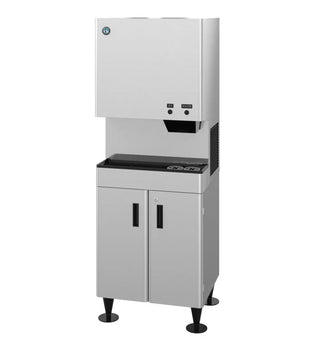

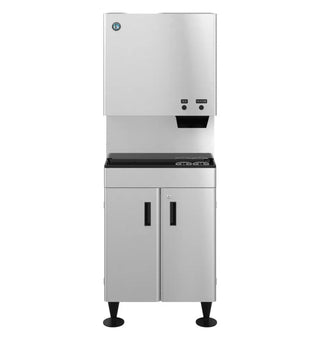

  • Flexible Installation Options: Designed for compact countertop placement (26″ W x 22-1/2″ D x 40″ H) or setup with the optional SD-500 stand.

Specifications

Pruduct Overview Details
Dimensions (W x D x H) 26″ W x 22-1/2″ D x 40″ H
Daily Ice Production Up to 597 lbs. per 24 hours
Storage Capacity 40 lbs. (1.3 cu. ft.)

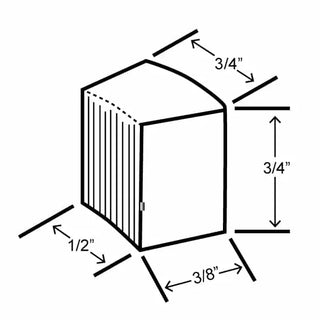

Ice Type Small Cubelet / Nugget-Style Ice
Electrical Requirements 115V / 60 Hz / 1-Phase, 6.7 Amps
Cord & Plug 6 ft. cord with NEMA 5-15P plug
Max Fuse / Breaker 20A HACR Breaker
Voltage Range 108 – 127V
Ambient Temperature Range 45 – 100°F
Water Temperature Range 45 – 90°F
Water Pressure Range 10 – 113 psig
Water Inlet Connection 1/2″ FPT (Min. 1/4″ Nominal ID Copper Tubing)
Drain Outlet Connection 3/4″ FPT (Min. 3/4″ Nominal ID Drain Hard Pipe)
Refrigerant R290 Hydrocarbon (4.7 oz.)
Heat Rejection 6,100 BTU/hr
Energy Consumption 4.7 kWh per 100 lbs. @ 90/70
Water Consumption 12 gal. per 100 lbs. @ 90/70
Shipping Weight 255 lbs.
Freight Class & Code Class 92.5 | NMFC Code: 123550-03
Warranty

3 Years: Parts & Labor (Entire Machine)


5 Years: Parts (Compressor & Air-Cooled Condenser Coil)
