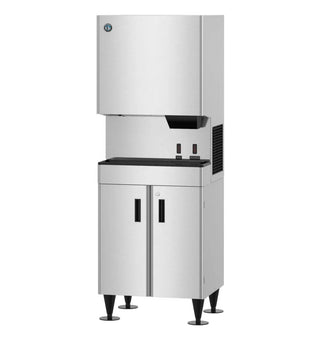

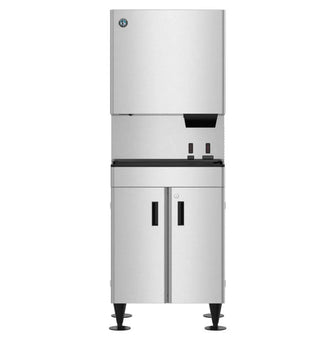

Hoshizaki DCM-500BAK-OS Cubelet Ice Machine And Water Dispenser, Air-Cooled, Hands Free, Built-In Storage Bin, 500lb/24h, Touchless Opti-Serve Operation, Durable Stainless Steel Construction, Eco-Friendly R290 Refrigerant, CleanCycle24 Self-Cleaning Technology
The DCM-500BAK-OS produces up to 597 lbs. of Cubelet nugget-style ice per day with a built-in storage bin that holds up to 40 lbs. of ice at a time*. This air-cooled dispenser provides ice or water with hands-free operation, with a user-friendly design that keeps ice contained and sanitary until it’s needed. The Advanced CleanCycle24™ design automatically performs a two-second purge every hour to maintain cleanliness. Designed for versatility, it can be placed on a countertop or paired with an optional stand.
*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft³ average ice density.
Features
- Touchless Opti-Serve™ Operation: Features an advanced LED sensor for 100% hands-free, touchless ice and water dispensing—compatible even with opaque containers to reduce cross-contamination.
- High Ice Yield & Built-In Storage: Produces up to 597 lbs. of ice per 24 hours with an integrated 40 lb. (1.3 cu. ft.) storage bin to meet peak demand.
- Chewable Cubelet Ice: Delivers popular small, soft, chewable nugget-style (cubelet) ice that cools beverages quickly.
- Durable Stainless Steel Construction: Built with a heavy-duty, corrosion-resistant stainless steel exterior for long-lasting performance in demanding commercial environments.
- Low-Maintenance Drive System: Heavy-duty stainless steel auger equipped with a greaseless bearing system for reduced maintenance and extended component lifespan.
- CleanCycle24™ Self-Cleaning Technology: Performs an automatic 2-second purge every hour to clear sediment, extend equipment life, and maintain peak sanitation.
- Eco-Friendly R290 Refrigerant: Utilizes natural, environmentally friendly R290 hydrocarbon refrigerant for energy-efficient operation and low environmental impact.
- Flexible Countertop Mounting: Compact 26" footprint fits standard countertops or can be paired with the optional Hoshizaki SD-500 floor stand.
Specifications
| Pruduct Overview | Details |
| Brand & Model | Hoshizaki DCM-500BAK-OS |
| Product Type | Cubelet Ice Machine & Water Dispenser |
| Ice Style | Small Cubelet (Chewable Nugget Style) |
| Daily Ice Yield | Up to 597 lbs. / 24 hours |
| Storage Capacity | 40 lbs. (1.3 cu. ft.) |
| Dispense Operation | Hands-Free (Opti-Serve™ LED Sensor) |
| Dimensions (W x D x H) | 26″ W x 22-1/2″ D x 40″ H |
| Electrical | 115V / 60Hz / 1-Ph, 6.7 A, NEMA 5-15P (6 ft. cord) |
| Circuit Protection | 20 A Max Fuse / HACR Breaker |
| Refrigerant | R290 Hydrocarbon (4.7 oz.) |
| Energy Consumption | 4.7 kWh per 100 lbs. @ 90°/70° |
| Water Consumption | 12 gal per 100 lbs. @ 90°/70° |
| Heat Rejection | 6,100 BTU/hr |
| Plumbing | 1/2″ FPT Water Inlet / 3/4″ FPT Drain Outlet |
| Shipping Weight | 255 lbs. (Freight Class 92.5 / NMFC 123550-03) |
| Warranty | 3-Year Parts & Labor (Full Machine) / 5-Year Parts (Compressor & Condenser Coil) |
