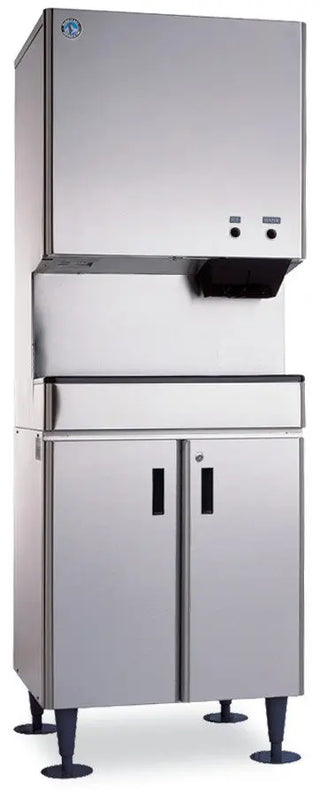

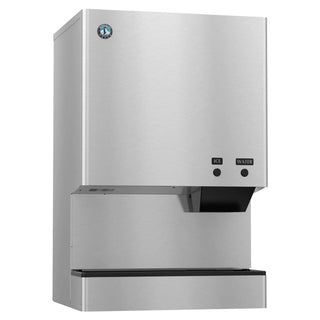

Hoshizaki DCM-500BWH Cubelet Icemaker, Water-Cooled, Built In Storage Bin, 500lb/24h, High-Volume Production, Durable Stainless Steel Cabinet, Intuitive Push-Button Dispensing, CleanCycle12 Technology
The DCM-500BWH is capable of producing approximately 590 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 40 lbs of ice* at a time. This Water-cooled icemaker has an Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- High-Volume Ice Production: Produces up to 590 lbs of ice per 24 hours, making it ideal for demanding commercial environments.
- Chewable Nugget Ice: Delivers popular, easy-to-chew small cubelet/nugget-style ice that cools beverages quickly.
- Built-in Storage & Compact Footprint: Features a 40 lbs (1.3 cu. ft.) self-contained storage bin with a space-saving countertop design.
- CleanCycle12™ Self-Cleaning System: Performs a 15-minute automatic purge cycle every 12 hours to maintain hygiene, reduce scale build-up, and extend unit life.
- Durable Stainless Steel Construction: Built with a high-grade stainless steel exterior for long-lasting performance and easy sanitization.
- Simple Push-Button Operation: User-friendly push-button interface allows for easy dispensing of ice or water.
- Flexible Placement Options: Designed for countertop placement or compatible with optional floor stands (SD-450, SD-500).
- Commercial Warranty Coverage: Backed by a 3-Year Parts & Labor warranty on the entire unit (Serial numbers VxxxxxJ and after) and a 5-Year Parts warranty on the compressor and air-cooled condenser coil.
Specifications
| Pruduct Overview | Details |
| Electrical Supply | 115V / 60Hz / 1 Phase |
| Amperage | 12.6 Amps |
| Max Fuse / HACR Breaker | 20 A |
| Voltage Range | 104 – 127V |
| Energy Consumption | 4.48 kWh per 100 lbs @ 90°F Air / 70°F Water |
| Potable Water Consumption | 12 gal per 100 lbs @ 90°F Air / 70°F Water |
| Refrigerant Charge | R-404A (11.5 oz. / 325 g) |
| Water Inlet Connection | 1/2″ FPT Inlet (Min. 1/4″ Nominal ID Copper Tubing or Equiv.) |
| Drain Outlet Connection | 3/8″ FPT Outlet (Min. 1/4″ Nominal ID Hard Pipe or Equiv.) |
| Ambient Temp Range | 45 – 100°F |
| Water Temp Range | 45 – 90°F |
| Water Pressure Range | 10 – 113 psig |
| Shipping Weight | 255 lbs |
| Warranty | 3 Years Parts & Labor on entire machine (Serial # VxxxxxJ and after) |
