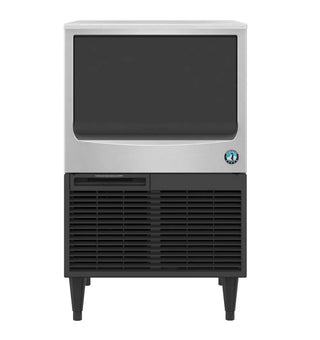

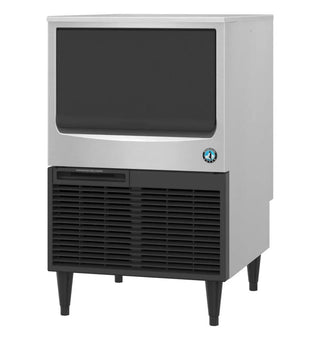

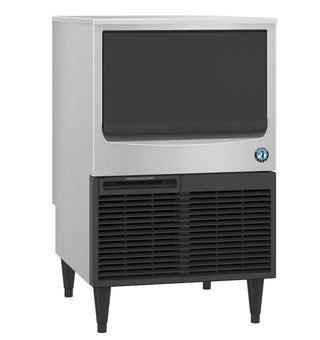

Hoshizaki KM-116BAK Crescent Cuber Ice Machine, Air-Cooled, Built-In Storage Bin, 116lb/24h, Front-Breathing Airflow, High Daily Ice Production, Integrated Ice Storage, Eco-Friendly - Energy Efficient, Compact Dimensions
The KM-116BAK produces up to 130 lbs. of crescent ice per day, perfect for small bars, hotel lobbies, and office break rooms. This air-cooled, self-contained unit features a built-in storage bin that stores up to 53 lbs. of ice at a time*, CycleSaver design, and includes the EverCheck alert system making the unit simple to maintain. With front-in, front-out airflow, it’s designed for efficient placement in a variety of operations.
*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft³ average ice density.
Features
- High Daily Ice Production: Produces up to 130 lbs. of crescent-shaped ice per 24 hours.
- Integrated Ice Storage: Built-in storage bin holds up to 53 lbs. (1.8 cu. ft.) of ice.
- Compact Dimensions: Measures 23-3/4″ W x 24″ D x 39″ H, ideal for space-saving undercounter installations.
- Crescent Ice Technology: Delivers crystal-clear, slow-melting crescent ice cubes with a durable stainless steel evaporator.
- Eco-Friendly & Energy Efficient: R290 hydrocarbon refrigerant with ENERGY STAR® qualification for maximum efficiency and environmental sustainability.
- Front-Breathing Airflow: Front-in, front-out airflow design allows for zero-clearance side and rear placement.
- Durable Construction: Features a heavy-duty stainless steel exterior cabinet for long-lasting commercial use.
- Smart Diagnostics: EverCheck™ alert system provides audible notifications for easy maintenance and troubleshooting.
- CycleSaver™ Technology: Reduces operating cycles to produce the same amount of ice, lowering energy consumption and extending component life.
- User-Friendly Design: Equipped with a convenient slide-in door and an easily removable, washable air filter.
Specifications
| Category | Overview | Details |
| Electrical Specs | Power Supply | 115V / 60 Hz / 1-Phase |
| Amperage | 3.4 A | |
| Max Fuse / HACR Breaker | 15 A | |
| Power Cord & Plug | 6.5 ft. cord with NEMA 5-15P plug | |
| Operating Limits | Ambient Temp Range | 45°F – 100°F (7.2°C – 37.8°C) |
| Water Temp Range | 45°F – 90°F (7.2°C – 32.2°C) | |
| Water Pressure Range | 10 – 113 psig | |
| Voltage Range | 108 – 122 V | |
| Heat Rejection | 2,500 BTU/hr | |
| Refrigerant Charge | R290 Hydrocarbon (3.2 oz.) | |
| Plumbing Specs | Water Inlet | 1/2″ FPT (Min. 1/4″ nominal ID copper tubing) |
| Drain Outlet | 3/4″ FPT (Min. 3/4″ nominal ID hard pipe) | |
| Utility Consumption | Energy Consumption | 5.2 kWh per 100 lbs. @ 90/70 |
| Water Consumption | 20 gal. per 100 lbs. @ 90/70 | |
| Shipping Info | Shipping Weight | 146 lbs. |
| NMFC Code | 123550-02 | |
| Freight Class | 150 | |
| Warranty | Entire Machine | 3-Year Parts & Labor |
| Compressor & Condenser Coil | 5-Year Parts |
