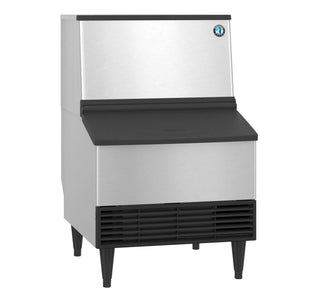

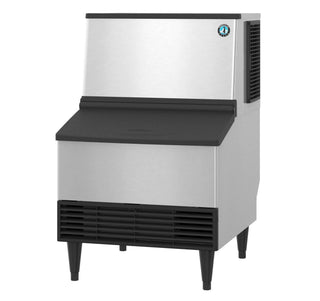

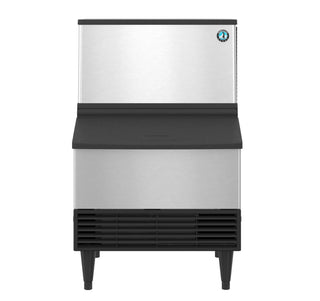

Hoshizaki KM-231BAJ Crescent Cuber Icemaker, Air-Cooled, Built In Storage Bin, 231lb/24h, ADA Compliant Design, Front In, Front Out Airflow, High Daily Output, Compact Footprint, Durable Stainless Steel Exterior
The KM-231BAJ is capable of producing approximately 213 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 80 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the Cycle Saver design and includes the Ever Check alert system making the unit simple to maintain. The KM-231BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- High Daily Output: Produces up to 213 lbs of ice per 24 hours, providing a steady supply of clear, long-lasting crescent ice cubes.
- Built-in Storage Bin: Features an integrated storage capacity of up to 80 lbs ($2.7\text{ ft}^3$) for high-demand hours.
- ADA Compliant Design: Bin opening is ADA compliant, offering convenient accessibility and effortless usage.
- Compact Footprint: Space-saving dimensions ($24\text{'' W} \times 28\text{'' D} \times 39\text{'' H}$) allow seamless undercounter or tight-space installation.
- Front In, Front Out Airflow: Intake and exhaust through the front panel eliminate the need for side clearance during setup.
- Cycle Saver Technology: Produces more ice per cycle with fewer operations, extending the unit's service life and conserving energy.
- Ever Check Alert System: Audible warning alerts notify operators of performance anomalies for rapid troubleshooting and minimal downtime.
- Durable Stainless Steel Exterior: Heavy-duty stainless steel cabinet resists corrosion and stands up to demanding commercial kitchen environments.
- Efficient Heat Rejection & Cooling: Operates with R-404A refrigerant (11.3 oz.) and delivers 3,750 BTU/hr heat rejection for reliable cooling performance.
Specifications
| Electrical Supply | 115V / 60 Hz / 1-Phase |
| Amperage | 6.5 Amps |
| Max Fuse / HACR Breaker | 15 A |
| Power Cord & Plug | 6.5 ft cord with NEMA 5-15P plug |
| Voltage Range | 104 – 127V |
| Plumbing - Water Inlet | 1/2″ FPT (Min. 1/4″ Nominal ID Copper Tubing or Equivalent) |
| Plumbing - Drain Outlet | 3/4″ FPT (Min. 3/4″ Nominal ID Hard Pipe or Equivalent) |
| Ambient Operating Temperature | $45^\circ\text{F} - 100^\circ\text{F}$ |
| Water Operating Temperature | $45^\circ\text{F} - 90^\circ\text{F}$ |
| Water Pressure Range | 10 – 113 psig |
| Heat Rejection | 3,750 BTU/hr |
| Refrigerant & Charge | R-404A (11.3 oz. / 320 g) |
| Energy Consumption | 8.4 kWh per 100 lbs @ $90^\circ\text{F}$ Air / $70^\circ\text{F}$ Water |
| Water Consumption | 23.5 gal per 100 lbs @ $90^\circ\text{F}$ Air / $70^\circ\text{F}$ Water |
| Shipping Weight | 180 lbs |
| Warranty (Entire Unit) | 3 Years Parts & Labor |
| Warranty (Compressor & Coil) | 5 Years Parts (Compressor & Air-Cooled Condenser Coil) |
