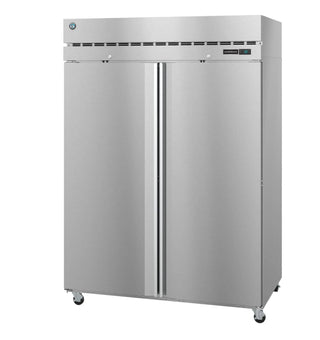

Refrigerator, Two Section Upright, Full Stainless Doors with Lock, Eco-Friendly R290 Hydrocarbon, Field-Reversible Door Design, 50.37 cu. ft. Net Capacity, Spacious 2-Section Capacity, Advanced Ducted Airflow
The R2A-FS Steelheart Series Upright two section refrigerator with full stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 50.37 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R2A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R2A-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 3.47 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Spacious 2-Section Capacity: Offers 50.37 cu. ft. of net usable interior space to accommodate high-volume commercial storage needs.
- All-Stainless Construction: Built with a durable stainless steel exterior (front, sides, and top) and a matching stainless steel interior for long-lasting performance and easy sanitation.
- Advanced Ducted Airflow: Equipped with a unique "ducted" air distribution system that ensures uniform cooling throughout the entire cabinet.
- Corrosion-Resistant Coil: Features an epoxy electrocoated (E-Coat) evaporator coil to protect against harsh environment corrosion and extend operational lifespan.
- Eco-Friendly R290 Hydrocarbon: Operates on energy-efficient R290 natural refrigerant to minimize environmental impact and lower running costs.
- Field-Reversible Door Design: Heavy-duty, lockable full stainless steel doors feature spring-assisted self-closing with a stay-open feature—completely field-reversible without requiring a conversion kit.
- Digital Temperature Control: Solid-state control system with a clear LED display ($^\circ\text{F}$ or $^\circ\text{C}$) and visual/audible temperature alarms for active monitoring.
- Bright Interior Illumination: Horizontally ceiling-mounted LED light bar delivers maximum visibility across all shelves.
- Top-Mounted Evaporator: Utilizes an energy-efficient non-electric hot gas condensate evaporation system located on top of the unit.
Specifications
| Category | Parameter | Detail / Value |
| Electrical Specs | Electrical Connection | NEMA 5-15P (115V / 60Hz / 1-ph) |
| Power Cord Length | 10 ft. cord and plug included | |
| Amperage | 9.5 A | |
| Max Fuse / HACR Breaker | 15 A | |
| Energy Consumption | 3.47 kWh / day | |
| Operating Limits | Ambient Temperature Range | 45°F – 100°F (7.2°C – 37.8°C) |
| Voltage Range | 104V – 126V | |
| Control Setpoint Range | 31°F – 52°F (-0.56°C – 11.11°C) | |
| Refrigerant Type | R290 Hydrocarbon | |
| Refrigeration Data | Compressor Horsepower | 1/2 HP |
| Nominal Capacity | 1545 BTU/hr | |
| Heat Rejection | 5.05 BTU/hr | |
| Storage & Dimensions | Interior Usable Capacity | 50.37 cu. ft. |
| Nominal Storage Capacity | 52.16 cu. ft. | |
| Shelves Included | (6) Adjustable wire shelves | |
| Door Clear Opening (W x H) | 21.75" W × 59.25" H | |
| Depth with Door Open 90° | 59.25" D | |
| Weight & Warranty | Shipping Weight | 560 lbs |
| Factory Warranty | 7 Years Parts / 7 Years Labor / 7 Years Compressor |
