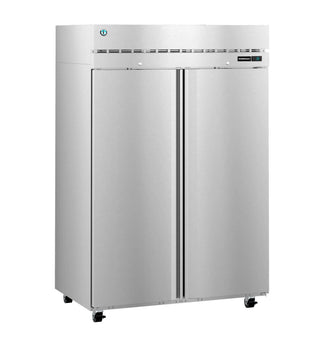

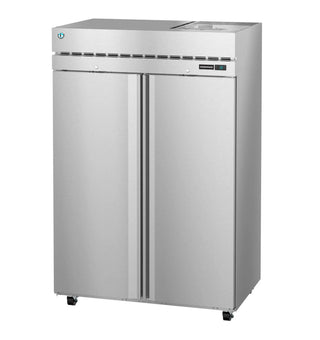

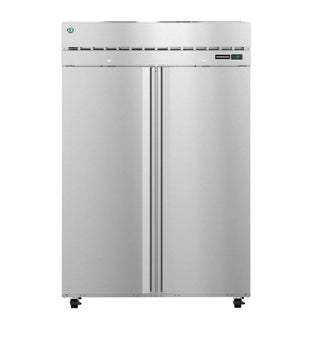

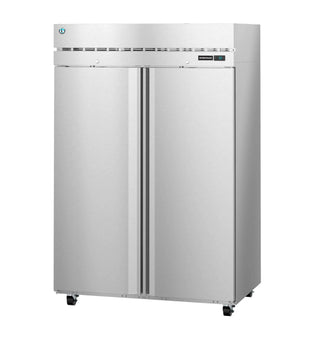

Hoshizaki R2A-FSN Refrigerator, Two Section Upright, Stainless Doors With Lock, Eco-Friendly R290 Refrigerant, Reversible And Spring-Assisted Doors, Ceiling-Mounted LED Lighting, 47.11 cu. ft. Net Capacity, Heavy-Duty Adjustable Shelving, Corrosion-Resistant Evaporator Coil
The R2A-FSN Steelheart Series Upright two section refrigerator with stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a storage capacity of 47.11 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R2A-FSN is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R2A-FSN also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 2.85 kWh/day at 8 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Overall Dimensions: 52″ W x 33.5″ D x 79.5″ H (width x depth x height excluding casters/legs)
- Usable Storage Capacity: Generous internal volumetric capacity of 47.11 cubic feet (cu. ft.)
- Commercial-Grade Construction: Heavy-duty stainless steel exterior (front, sides, and top) paired with a full stainless steel interior liner for maximum durability and effortless sanitation
- Advanced Ducted Air Distribution System: Engineered with a unique "ducted" airflow mechanism to maintain precise, even air circulation and rapid temperature recovery throughout the entire interior
- Corrosion-Resistant Evaporator Coil: Epoxy electrocoated (E-Coat) evaporator coil designed to actively resist harsh chemical corrosion, humidity, and food acids for significantly extended service life
- Secure Stainless Steel Locking Doors: Two full-length solid stainless steel doors equipped with integrated key locks for secure storage and inventory management
- Reversible & Spring-Assisted Doors: Field-reversible doors with spring-assisted self-closing hinges and a 90-degree stay-open feature for easy loading and unloading without requiring additional conversion kits
- Flush-Mount Aluminum Door Handles: Sleek, continuous one-piece extruded aluminum door handles mounted flush along the entire length of each door
- High-Density Polyurethane Insulation: Encased with 2 3/8″ thick, CFC-free foamed-in-place polyurethane insulation for exceptional thermal efficiency and structural stability
- Ceiling-Mounted LED Lighting: Horizontally mounted interior LED light bar positioned along the ceiling for optimal cabinet-wide illumination
- Solid-State Digital Controls: Electronic microprocessor temperature controller featuring a clear LED display with selectable Fahrenheit (°F) or Celsius (°C) readouts and built-in visual/audible temperature alarm warnings
- Eco-Friendly R290 Refrigerant: Uses environmentally safe R290 hydrocarbon refrigerant with ultra-low Global Warming Potential (GWP) and zero Ozone Depletion Potential (ODP)
- Heavy-Duty Adjustable Shelving: Includes 6 epoxy-coated wire shelves adjustable in fine 1″ increments on durable, heavy-duty stainless steel shelf supports
- Standard Caster Kit: Ships with four (4) 4″ stem casters included as standard, with two (2) front-locking brakes for easy mobility and safe positioning
- Non-Electric Evaporate Condensate System: Top-mounted, energy-efficient non-electric condensate evaporation system that eliminates the need for external drain lines or electrical pan heaters
- Refrigeration & Electrical Specs: Powered by a nominal 1/2 HP compressor generating 1545 BTU/hr, operating on a standard 115V / 60Hz / 1-Phase power supply with a pre-wired 10 ft. power cord and standard NEMA plug
- Shipping Dimensions & Gross Weight: Packaged shipping crate measures 58″ L x 37.5″ D x 81″ H with a total gross shipping weight of 562 lbs
- Comprehensive 7-7-7 Factory Warranty: Backed by an industry-leading 7-7-7 manufacturer warranty coverage (7 years parts, 7 years labor, and 7 years compressor replacement)
- Optional Field-Installable Accessories: Compatible with optional field kits including 6″ adjustable legs, additional epoxy or stainless steel shelves, sheet pan/tray slides, and hands-free foot pedal door openers
Specifications
| Pruduct Overview | Details |
| Electrical Connection | NEMA 5-15P, 115V / 60Hz / 1 Ph, 10 ft. cord and plug |
| Energy Consumption | 2.85 kWh/day |
| Amperage | 8.0 Amps |
| Max Fuse / HACR Breaker | 15 Amps |
| Ambient Temperature Range | 45°F to 100°F (7.2°C to 37.8°C) |
| Voltage Range | 104V to 126V |
| Control Setpoint Range | 31°F to 52°F (-0.5°C to 11.1°C) |
| Refrigerant | R290 Hydrocarbon |
| Compressor Power / Capacity | 1/2 HP Nominal (1545 BTU/hr) |
| Heat Rejection | 621 BTU/hr |
| Nominal Storage Capacity | 47.11 cu. ft. |
| Door Opening Dimensions | 20.25″ W x 59.25″ H |
| Depth with Door Open (90°) | 57.75″ D |
| Shelves Included | 6 Epoxy-coated wire shelves |
| Shipping Weight | 562 lbs |
| Factory Warranty | 7 Years Parts / 7 Years Labor / 7 Years Compressor |
