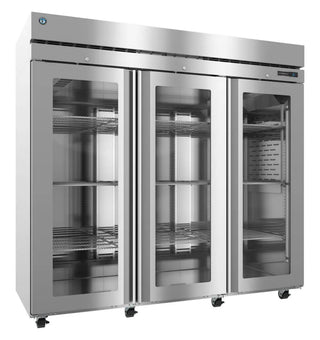

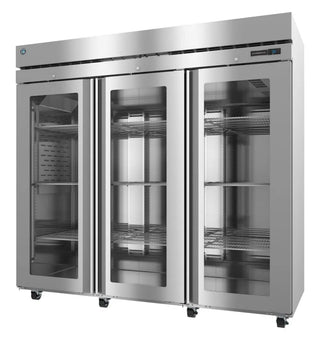

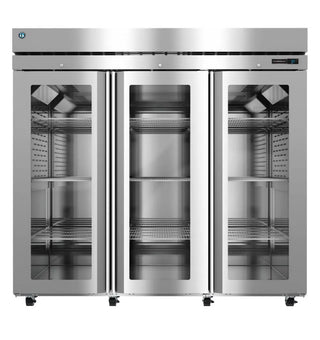

Hoshizaki R3A-FGE Refrigerator, Three Section Reach-In, Full Glass Doors With Locks, R290 Hydrocarbon Refrigerant, Heavy-Duty Construction, Energy-Efficient Interior LED Lighting, ENERGY STAR Qualified
The R3A-FGE Steelheart® Series three-section glass-door reach-in refrigerator delivers reliable temperature performance and quick ingredient identification for commercial kitchens. A solid-state digital control system with temperature alarms and an easy-to-read LED display (°F or °C) helps maintain consistent temperatures. Durable stainless steel construction withstands daily use and simplifies cleaning, while the front-breathing airflow design allows flexible placement in tight kitchen spaces.
Features
- Overall Dimensions: 82.5″ W x 33.5″ D x 79.5″ H (Height includes 4″ standard casters)
- Net Storage Capacity: 79.03 cu. ft.
- Airflow System: Unique ducted airflow design ensures consistent and even cooling throughout the entire cabinet
- Refrigerant Flow Control: Thermostatic Expansion Valve (TXV) system quickly and effectively regulates refrigerant flow for precise temperature recovery
- Digital Controls: Solid-state digital controller with integrated temperature alarms and LED display (°F or °C)
- Cabinet Insulation: Cabinet walls insulated with 2-3/8” thick CFC-free, foamed-in-place polyurethane
- Heavy-Duty Construction: Premium stainless steel exterior (front, sides, top) and a 100% stainless steel interior liner
- Door Configuration: Field-reversible, self-closing, lockable multi-pane argon-filled glass doors with a 90° stay-open feature
- Door Handles: Sleek extruded aluminum flush-mount door handles
- Interior Lighting: Energy-efficient interior LED lighting for maximum product visibility
- Corrosion Resistance: Epoxy electrocoated (E-Coat) evaporator coil helps fight corrosion for extended operational life
- Condensate Management: Energy-efficient automatic hot gas condensate evaporator
- Condenser Protection: Top-mounted refrigeration system comes standard with an easily accessible condenser filter
- Eco-Friendly Refrigerant: Environmentally friendly R290 hydrocarbon refrigerant
- Casters: (8) 4″ stem casters (4 with brakes) included standard
- Shelving: Includes (9) epoxy-coated wire shelves adjustable in 1″ increments on heavy-duty stainless steel supports
- Efficiency Certification: ENERGY STAR® Qualified
Specifications
| Attribute | Pruduct Overview |
| Electrical Connection | NEMA 5-15P |
| Electrical Requirements | 115V / 60 Hz / 1 Ph |
| Power Cord | 10 ft. cord and plug |
| Energy Consumption | 6.5 kWh/day |
| Amperage | 9.5 A |
| Max Fuse / HACR Breaker | 15 A |
| Ambient Temperature Range | 45°F – 100°F |
| Voltage Range | 104V – 126V |
| Control Setpoint Range | 31°F – 52°F |
| Refrigerant Type & Charge | R290 (4.6 oz.) |
| Nominal Compressor Capacity | 770 BTU/hr at 1/4 HP |
| Heat Rejection | 1,255 BTU/hr |
| Shipping Weight | 826 lbs. |
| Interior Storage Capacity | 79.03 cu. ft. |
| Door Opening Dimensions | 21.75″ W x 57″ H (per door) |
| Depth with Door Open 90° | 59.25″ D |
| Shelves Included | (9) Epoxy-coated wire shelves |
| Warranty Coverage | 7 Years Parts / 7 Years Labor / 7 Years Compressor |
