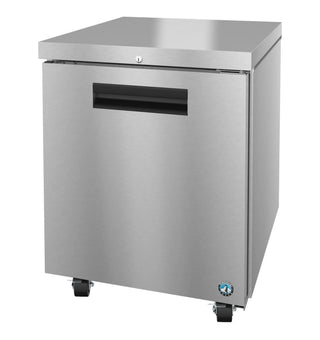

Hoshizaki UF27B-01 Freezer, Single Section Undercounter, Stainless Door With Lock, 6.21 cu.ft., Field Reversible Door, Factory-Installed Security, Advanced Airflow Distribution, High-Ambient Performance
The UF27B-01 Steelheart Series Undercounter single section freezer with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.21 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF27B-01 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UF27B-01 also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 2.4 kWh/day at 2.4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Includes cylinder locks (-01) (factory installed). The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Heavy-Duty Construction: Durable stainless steel exterior (front, sides, top) paired with a full stainless steel interior for optimal hygiene and effortless cleaning.
-
Factory-Installed Security: Features a factory-installed cylinder door lock (
-01suffix) to keep valuable inventory safe during non-operating hours. - Advanced Airflow Distribution: Innovative air distribution system evenly distributes cold air throughout the cabinet to maintain precise product temperatures.
- Field Reversible Door: Solid stainless steel door with an ABS interior liner and an extruded aluminum flush-mount handle. Features a spring-assisted self-closing mechanism with a stay-open feature (no conversion kit required).
- Eco-Friendly & Energy Efficient: Utilizes environmentally friendly R290 hydrocarbon refrigerant and 2″ CFC-free, foamed-in-place polyurethane insulation.
- High-Ambient Performance: Engineered to reliably maintain food-safe temperatures even in demanding ambient conditions up to 100°F.
- Industry-Leading Warranty: Backed by Hoshizaki's 7-7-7 warranty coverage (7 years labor, 7 years parts, 7 years compressor).
Specifications
| Category | Parameter | Details |
| Electrical Specifications | Electrical Connection | NEMA 5-15P (10 ft. cord and plug included) |
| Voltage / Frequency / Phase | 115V / 60 Hz / 1-Phase | |
| Amperage | 2.4 Amps | |
| Energy Consumption | 2.4 kWh/day | |
| Max Fuse / HACR Breaker | 15 A | |
| Operating Limits | Ambient Temperature Range | 45°F to 100°F |
| Voltage Range | 104V to 126V | |
| Control Setpoint Range | -10°F to +10°F | |
| Refrigerant | R290 Hydrocarbon | |
| Refrigeration Data | Compressor Capacity | Nominal 798 BTU/hr at 1/5 HP |
| Heat Rejection | 489 BTU/hr | |
| Storage & Capacity | Gross Capacity | 7.21 cu. ft. |
| Net / Interior Capacity | 6.21 cu. ft. | |
| Door Opening Dimensions | 22.75″ W × 23″ H | |
| Depth with Door Open 90° | 55.5″ D | |
| Included Shelves | (1) Epoxy-coated wire shelf | |
| Dimensions & Weight | Overall Unit Dimensions (W x D x H) | 27″ W × 30″ D × 33.75″ H |
| Shipping Crate Dimensions (L x D x H) | 34″ L × 31.5″ D × 36.5″ H | |
| Shipping Weight | 175 lbs. | |
| Warranty | Manufacturer Coverage | 7-7-7 Warranty (7 Years Labor / 7 Years Parts / 7 Years Compressor) |
