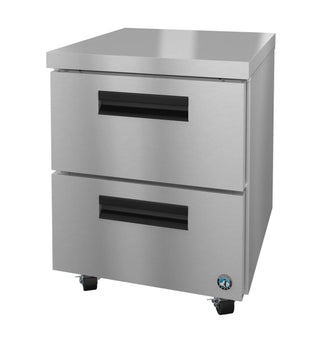

Hoshizaki UF27B-D2 Freezer, Single Section Undercounter, Stainless Drawers, 6.21 cu. ft., Superior Thermal Performance, Automatic Defrost, Advanced Airflow And Evaporator Protection, Durable Stainless Steel Construction
The UF27B-D2 Steelheart Series Undercounter single section freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.21 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF27B-D2 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UF27B-D2 also includes Drawers capacity: Top: (1) 12″ x 20″ full size pan and (2) 1/4 size pans. Bottom: (1) full size pan (pans by others), (4) 4″ stem casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 2.4 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Overshelves, Stainless steel back, Drawer divider bars, Rail adapter bars. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Durable Stainless Steel Construction: Premium stainless steel exterior (front, sides, top) and interior for maximum durability, easy cleaning, and long-lasting corrosion resistance.
- Heavy-Duty Stainless Drawers: Includes (2) fully welded, securely fastened stainless steel drawers equipped with 16-gauge stainless steel slides, durable acetal rollers, and extruded aluminum flush-mount handles.
- Optimized Pan Capacity:
- Top Drawer: Holds (1) 12″ x 20″ full-size pan and (2) 1/4 size pans.
- Bottom Drawer: Holds (1) 12″ x 20″ full-size pan (pans sold separately).
- Superior Thermal Performance: Engineered to maintain food-safe storage temperatures even in high-ambient environments up to 100°F.
- Advanced Airflow & Evaporator Protection: Innovative air distribution system ensures even temperature cabinet-wide, paired with an enamel-coated evaporator coil for extended service life.
- Eco-Friendly & Energy Efficient: Powered by environmentally friendly R290 hydrocarbon refrigerant and insulated with 2″ CFC-free, foamed-in-place polyurethane.
- Automatic Defrost: Features a time-initiated heated defrost cycle for hassle-free maintenance and continuous operation.
- Standard Mobility: Equipped with (4) 4″ stem casters (2 with brakes) for easy maneuvering and secure positioning.
- Electrical & Refrigeration: 1/5 HP compressor (1354 BTU/hr nominal power), 115V/60Hz/1-ph electrical connection with a 10 ft. power cord and plug.
- Industry-Leading Warranty: Backed by Hoshizaki's 7-7-7 coverage (7 years parts, 7 years labor, and 7 years compressor warranty).
Specifications
| Pruduct Overview | Details |
| Model | Hoshizaki UF27B-D2 (Steelheart Series) |
| Overall Dimensions (W x D x H) | 27″ W x 30″ D x 33.75″ H |
| Depth with Drawer Extended | 52″ D |
| Nominal Storage Capacity | 7.21 cu. ft. |
| AHAM Net Storage Capacity | 6.21 cu. ft. |
| Drawers Included | (2) Heavy-Duty Stainless Steel Drawers |
| Pan Capacity (Top Drawer) | (1) 12″ x 20″ Full-Size Pan & (2) 1/4 Size Pans |
| Pan Capacity (Bottom Drawer) | (1) 12″ x 20″ Full-Size Pan |
| Electrical Connection | 115V / 60 Hz / 1-Phase |
| Plug & Cord | NEMA 5-15P plug with 10 ft. cord |
| Amperage / Max Fuse | 3.0 Amps / 15A HACR Breaker |
| Energy Consumption | 2.4 kWh/day |
| Compressor Power / Heat Rejection | 1/5 HP (1354 BTU/hr Nominal) / 489 BTU/hr |
| Refrigerant | R290 Hydrocarbon (Eco-Friendly) |
| Control Setpoint Range | -10°F to +10°F |
| Ambient Temp Range | 45°F to 100°F |
| Voltage Range | 104V – 126V |
| Defrost Type | Automatic time-initiated heated defrost |
| Casters | (4) 4″ Stem Casters (2 with brakes) |
| Shipping Weight | 207 lbs |
| Warranty | 7-Year Parts / 7-Year Labor / 7-Year Compressor |
