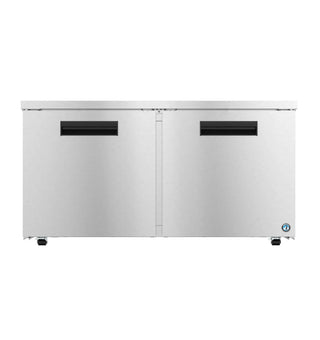

Hoshizaki UF60B-LP Low Profile Freezer, Two Section Undercounter, Stainless Doors, Net Capacity Of 15.1 cu. ft., Adjustable Shelving, ENERGY STAR Qualified, Innovative Air Distribution System, Self-Closing Door Mechanism, Stands At Just 31.9″High
The UF60B-LP Steelheart Series Undercounter two section low profile freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 15.1 cubic feet this efficient undercounter low profile freezer and front air flow design is perfect for hot/tight kitchens. The UF60B-LP is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UF60B-LP also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 2.25″ stem casters (2 with brakes) are standard, plus field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 3.95 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 4″ or 6″ casters, Epoxy wire shelf, Stainless steel back, Overshelves (single or double), Foot pedal kit (left or right hinge), See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ADA Compliant, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- ADA Compliant Low-Profile Design: Stands at just 31.9″ high, making it fully compliant with ADA (Americans with Disabilities Act) height requirements.
- Heavy-Duty Stainless Steel Construction: Stainless steel exterior (front, sides, top) and stainless steel interior for maximum durability and sanitation.
- Stainless Steel Doors: (2) solid stainless steel doors featuring easy-to-clean ABS interior door liners.
- Self-Closing Door Mechanism: Spring-assisted, self-closing doors with a stay-open feature that requires no extra kits.
- Field-Reversible Hinges: Reversible door hinges allow flexible installation in any kitchen or lab layout.
- Flush-Mounted Handles: Premium extruded aluminum flush-mounted door handles for a sleek, ergonomic grip.
- Innovative Air Distribution System: Circulates air evenly throughout the cabinet to maintain uniform product temperatures.
- High Ambient Performance: Engineered to maintain food-safe storage temperatures even in 100°F ambient conditions.
- Corrosion-Resistant Evaporator: Enamel-coated evaporator coil for long-lasting operational performance.
- Eco-Friendly Refrigerant: Operates using environmentally friendly R290 hydrocarbon refrigerant.
- Compressor Capacity: Powered by a 1/3+ HP compressor producing 1,426 BTU/hr.
- Spacious Interior: Generous 15.1 cu. ft. net storage capacity.
- Superior Insulation: Insulated with 2″ thick, CFC-free, foamed-in-place polyurethane.
- Adjustable Shelving: (2) epoxy-coated wire shelves, adjustable in 1/2″ increments on anodized aluminum supports.
- ENERGY STAR® Qualified: Optimized energy efficiency for lower operating costs.
- Electrical Requirements: 115V / 60Hz / 1-Phase with a 10 ft. power cord and plug included.
- Standard Mobility: Includes (4) 2.25″ stem casters (2 with brakes).
- 7-7-7 Warranty Coverage: Backed by a 7-year parts, 7-year labor, and 7-year compressor warranty.
- Overall Dimensions: 60″ W x 30″ D x 31.9″ H
- Shipping Specifications: Crate dimensions of 62.5″ L x 34″ D x 35.5″ H with a shipping weight of 310 lbs.
- Optional Field Kits & Accessories: 4″ or 6″ casters, additional epoxy wire shelves, stainless steel back panel, single/double overshelves, and foot pedal kits (left or right hinge).
Specifications
| Category | Detail |
| Electrical Connection | NEMA 5-15P, 115V / 60Hz / 1-Phase (10 ft. cord & plug) |
| Energy Consumption | 3.95 kWh/day |
| Amperage | 4.0 A |
| Max Fuse / HACR Breaker | 15 A |
| Ambient Temp Range | 45°F to 100°F |
| Voltage Range | 104V to 126V |
| Control Setpoint Range | -18°F to +10°F |
| Refrigerant | R290 Hydrocarbon |
| Compressor Power | 1/3 HP (Nominal 1,426 BTU/hr) |
| Heat Rejection | 727 BTU/hr |
| Nominal Storage Capacity | 15.1 cu. ft. |
| Interior Storage Capacity | 15.1 cu. ft. |
| Door Opening Dimensions | 25.5″ W x 23″ H |
| Depth (Door Fully Extended) | 57.5″ D |
| Shelves Included | (2) Epoxy-Coated Wire Shelves |
| Shipping Weight | 310 lbs |
| Warranty | 7 Years Labor / 7 Years Parts / 7 Years Compressor |
