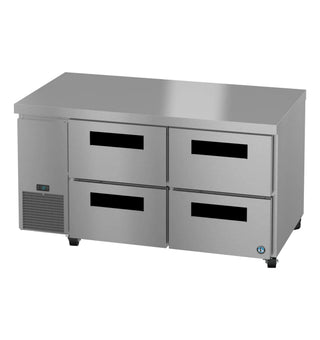

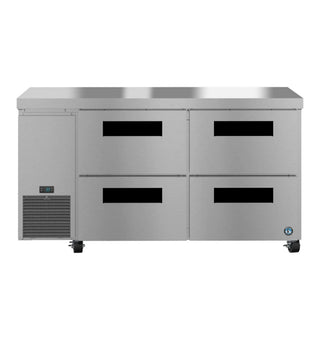

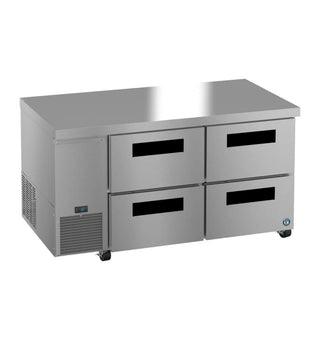

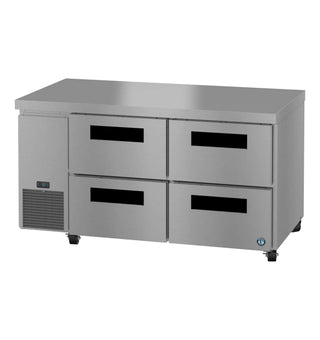

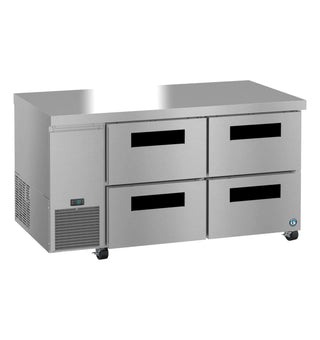

Hoshizaki ULR60B-D4 Side Mount Refrigerator, Two Section Undercounter, Stainless Drawers, 17.22 cu.ft. Capacity, High-Ambient Performance, R290 Natural Hydrocarbon, Coated Evaporator Coil, Advanced Air Distribution
The ULR60B-D4 Steelheart Series Undercounter two section side mount refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 17.22 cubic feet this efficient undercounter side mount refrigerator and front air flow design is perfect for hot/tight kitchens. The ULR60B-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The ULR60B-D4 also includes Drawers capacity: (2) 12″ x 10” half size pans and (2) 12″ x 6.5” 1/3 size pans, 6” deep pans (pans by others), (4) 4″ stem casters (2 with brakes) are standard, plus the drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers. Electrical consumption of 1.26 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2″ or 6″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Drawer locks. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Dimensions & Capacity: Measures 60″ W x 33.25″ D x 33.875″ H with a generous 17.22 cu. ft. net storage capacity.
- All-Stainless Construction: Features a durable stainless steel exterior (front, sides, top) and interior lining.
- Heavy-Duty Drawer System: Includes (4) fully welded stainless steel drawers with 14-gauge stainless steel slides, durable acetal rollers, and extruded aluminum flush-mount handles.
- Pan Capacity: Accepts (2) 12″ x 10″ half-size and (2) 12″ x 6.5″ 1/3-size pans up to 6″ deep per drawer (pans sold separately).
- Advanced Air Distribution: Innovative airflow design distributes cold air evenly throughout the cabinet to maintain product temperatures.
- Coated Evaporator Coil: Enamel-coated evaporator coil provides extended operating life and corrosion resistance.
- Thermal Insulation: Built with 2″ CFC-free, foamed-in-place polyurethane insulation.
- High-Ambient Performance: Engineered to safely maintain food temperatures in ambient environments up to 100°F.
- Eco-Friendly Refrigerant: Utilizes R290 hydrocarbon natural refrigerant for efficient cooling.
- Standard Mobility: Ships standard with (4) 4″ stem casters (2 featuring brakes).
- Electrical & Refrigeration: Powered by a 1/5 HP compressor (1354 BTU/hr nominal rating) operating on 115V / 60Hz / 1-ph with a 10 ft. cord and plug.
- Extended Warranty Protection: Backed by Hoshizaki's 7-7-7 warranty (7 years labor, 7 years parts, and 7 years compressor).
- Optional Accessories & Kits: Compatible with optional 2″ or 6″ casters, single or double overshelves, stainless steel back cover, vertical/horizontal drawer divider bars, and drawer locks.
Specifications
| Pruduct Overview | Details |
| Electrical Connection | 115V / 60Hz / 1-Phase, NEMA 5-15P plug with 10 ft. cord |
| Amperage | 3.0 A |
| Max Fuse / HACR Breaker | 15 A |
| Energy Consumption | 1.26 kWh/day |
| Ambient Temperature Range | 45°F – 100°F |
| Voltage Range | 104V – 126V |
| Control Setpoint Range | 28°F – 45°F |
| Refrigerant | R290 Natural Hydrocarbon |
| Compressor | 1/5 HP (Nominal: 1354 BTU/hr) |
| Heat Rejection | 305 BTU/hr |
| Storage Capacity | 17.22 cu. ft. |
| Drawers Included | (4) Stainless steel drawers |
| Depth with Drawer Extended | 57.5″ D |
| Shipping Weight | 408 lbs |
| Warranty Coverage | 7 Years Labor / 7 Years Parts / 7 Years Compressor |
