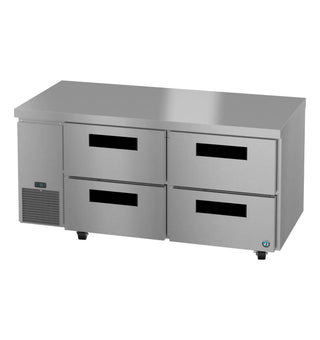

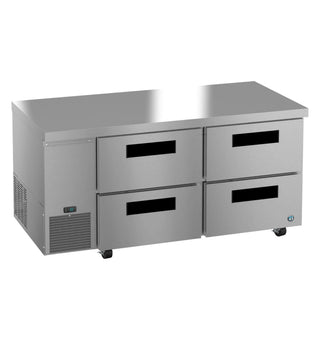

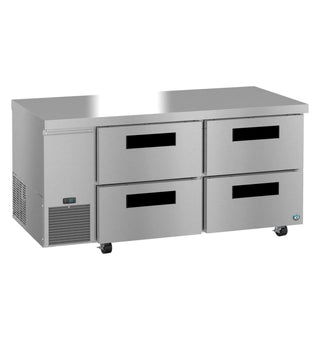

Hoshizaki ULR67B-D4 Side Mount Refrigerator, Two Section Undercounter, Stainless Drawers, 19.97 cu. ft., Corrosion-Resistant Evaporator, High Ambient Performance, Insulated With 2″ Thick
The ULR67B-D4 Steelheart Series Undercounter two section side mount refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 19.97 cubic feet this efficient undercounter side mount refrigerator and front air flow design is perfect for hot/tight kitchens. The ULR67B-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The ULR67B-D4 also includes Drawers capacity: (2) 12″ x 20″ full size, 6″ deep pans (pans by others), (4) 4″ stem casters (2 with brakes) are standard, plus the drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers. Electrical consumption of 1.33 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2″ or 6″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Drawer locks. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Storage & Dimensions: Offers a generous 19.97 cu. ft. net capacity with overall dimensions of 67″ W x 33.25″ D x 33.875″ H.
- Advanced Airflow: Innovative air distribution system ensures even cooling throughout the interior to maintain strict food-safe product temperatures.
- All-Stainless Construction: Built with a heavy-duty stainless steel exterior (front, sides, top) and a full stainless steel interior for maximum durability and easy cleaning.
- Corrosion-Resistant Evaporator: Enamel-coated evaporator coil provides extended operating life and superior protection against corrosion.
- Industrial Drawer Slides: Drawer slides are constructed from 14-gauge stainless steel equipped with durable acetal rollers for smooth, heavy-duty operation.
- Sleek Flush Handles: Designed with extruded aluminum flush-mount drawer handles for a clean profile and easy opening.
- Fully Welded Drawers: Features (4) stainless steel drawers with fully welded construction, securely fastened into the cabinet frame.
- Full-Size Pan Capacity: Each drawer accommodates (2) 12″ x 20″ full-size, 6″ deep food pans (pans sold separately).
- High Ambient Performance: Engineered to maintain proper holding temperatures even in demanding kitchen conditions up to 100°F ambient temperature.
- Eco-Friendly Refrigerant: Utilizes environmentally friendly R290 hydrocarbon refrigerant for efficient operation.
- Superior Thermal Insulation: Insulated with 2″ thick, CFC-free foamed-in-place polyurethane for optimal temperature retention.
- Reliable Refrigeration System: Powered by a 1/5 HP compressor rated at 1354 BTU/hr nominal capacity (115V / 60 Hz / 1-ph with 10 ft. power cord and plug).
- Included Casters: Ships standard with (4) 4″ stem casters (2 with locking brakes) for easy mobility and placement.
- Industry-Leading Warranty: Backed by Hoshizaki's 7-7-7 Warranty (7 years parts, 7 years labor, 7 years compressor coverage).
- Shipping Specs: Crate dimensions are 70.75″ L x 35.75″ D x 36″ H with a total shipping weight of 443 lbs.
- Optional Field Accessories: Compatible with optional 2″ or 6″ casters, single or double overshelves, stainless steel back panel, horizontal or vertical drawer divider bars, and drawer locks.
Specifications
| Feature | Details |
| Model / Series | Hoshizaki ULR67B-D4 Steelheart Series |
| Storage Capacity | 19.97 cu. ft. (Nominal / Interior) |
| Number of Drawers | 4 Stainless Steel Drawers |
| Depth (Drawer Open) | 57.5 in. (Fully extended) |
| Electrical Rating | 115V / 60 Hz / 1-ph |
| Amperage | 3.0 Amps |
| Max Fuse / HACR Breaker | 15 A |
| Plug Type | NEMA 5-15P (10 ft. power cord included) |
| Energy Consumption | 1.33 kWh/day |
| Refrigerant | R290 Hydrocarbon |
| Compressor Horsepower | 1/5 HP |
| Nominal Compressor Capacity | 1354 BTU/hr |
| Heat Rejection | 381 BTU/hr |
| Control Setpoint Range | 28°F to 45°F |
| Ambient Temperature Range | 45°F to 100°F |
| Voltage Range | 104V to 126V |
| Shipping Weight | 443 lbs. |
| Warranty | 7 Years Parts / 7 Years Labor / 7 Years Compressor |
