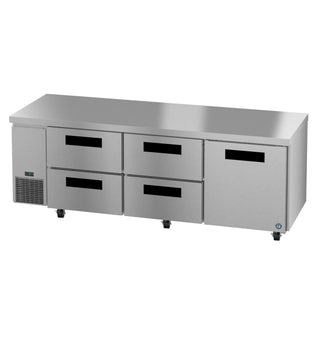

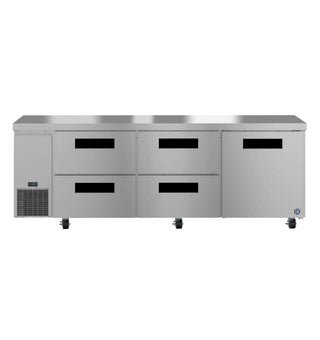

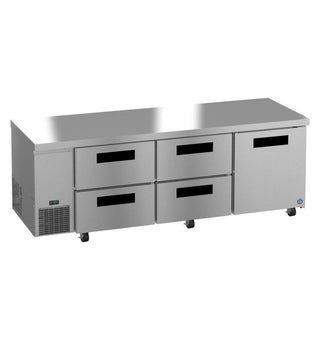

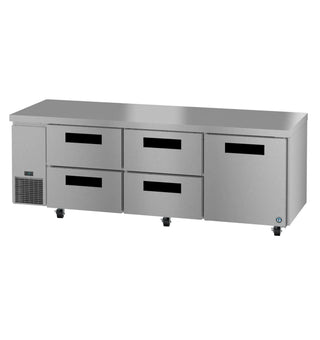

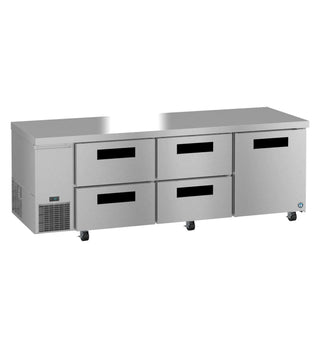

Hoshizaki ULR93B-D4 Side Mount Refrigerator, Three Section Undercounter, Drawer Door Combo, 30.17 cu. ft. Capacity, Heavy-Duty Construction, High-Ambient Performance, Eco-Friendly Refrigeration
The ULR93B-D4 Steelheart Series Undercounter three section side mount refrigerator with drawer/door combo is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 30.17 cubic feet this efficient undercounter side mount refrigerator and front air flow design is perfect for hot/tight kitchens. The ULR93B-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The ULR93B-D4 also includes (2) epoxy coated wire shelves and (4) stainless steel drawers each with (1) divider bar, (4) 4″ stem casters (2 with brakes) are standard, plus the drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers. Electrical consumption of 1.879 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2″ or 6″ casters, Overshelves (single or double), Epoxy wire shelf, Stainless steel shelf, Foot pedal kit (left or right hinge), See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Dimensions & Capacity: Measures 93″ W × 33.25″ D × 33.875″ H with a net capacity of 30.17 cu. ft.
- Storage Configuration: Includes (1) stainless steel door and (4) stainless steel drawers (each drawer equipped with 1 divider bar) plus (2) epoxy-coated wire shelves.
- Heavy-Duty Construction: Built with stainless steel interior and exterior (front, sides, and top) for maximum durability.
- Durable Drawer Slides: Drawer slides constructed of 14-gauge stainless steel with smooth acetal rollers.
- Sleek Handles: Features extruded aluminum flush-mount handles on door and drawers.
- Advanced Insulation: Insulated with 2″ CFC-free, foamed-in-place polyurethane.
- High-Ambient Performance: Engineered to maintain food-safe temperatures even in 100°F ambient conditions.
- Even Air Distribution: Innovative air distribution system distributes cold air evenly throughout the cabinet.
- Corrosion Protection: Enamel-coated evaporator coil for extended lifespan and performance.
- Eco-Friendly Refrigeration: Powered by environmentally friendly R290 refrigerant.
- Compressor Rating: Nominal compressor output of 2,431 BTU/hr at 1/3 HP.
- Electrical Specifications: Operates on 115V/60Hz/1-phase power with an included 10 ft. cord and plug.
- Mobility Included: Comes standard with (4) 4″ stem casters (2 with locking brakes).
- Shipping Specs: Shipping crate dimensions 95.25″ L × 34.5″ D × 36″ H; total shipping weight 545 lbs.
- Energy Efficiency: ENERGY STAR® Qualified.
- Industry-Leading Warranty: Backed by a 7-7-7 Warranty (7 years labor, 7 years parts, 7 years compressor).
- Optional Accessories: Available kits include 2″ or 6″ casters, single/double overshelves, extra epoxy or stainless steel shelves, and foot pedal kits (left or right hinge).
Specifications
| Category | Overview | Value |
| Electrical Specs | Electrical Connection | 115V / 60Hz / 1-Phase (NEMA 5-15P plug, 10 ft. cord) |
| Amperage | 5.0 A | |
| Max Fuse / HACR Breaker | 15 A | |
| Energy Consumption | 1.879 kWh/day | |
| Operating Limits | Ambient Temperature Range | 45°F – 100°F |
| Voltage Range | 104V – 126V | |
| Control Setpoint Range | 28°F – 45°F | |
| Refrigerant Type | R290 | |
| Refrigeration Data | Compressor Power | Nominal 2,431 BTU/hr at 1/3 HP |
| Heat Rejection | 448 BTU/hr | |
| Storage Specs | Nominal Storage Capacity | 30.17 cu. ft. |
| Interior Storage Capacity | 30.17 cu. ft. | |
| Door Opening Dimensions | 22.5″ W × 23″ H | |
| Depth with Door Extended | 57.75″ D | |
| Shelves Included | 4 | |
| Weight | Shipping Weight | 545 lbs |
| Warranty | Warranty Coverage | 7-7-7 Warranty (7 Years Labor / 7 Years Parts / 7 Years Compressor) |
