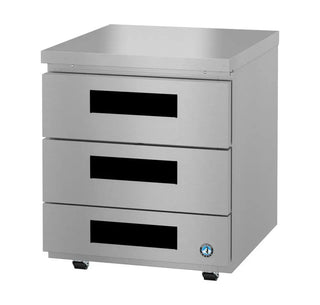

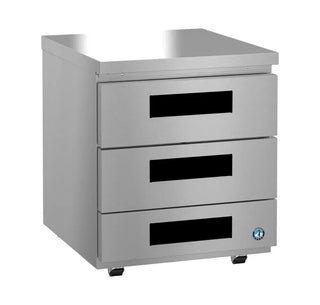

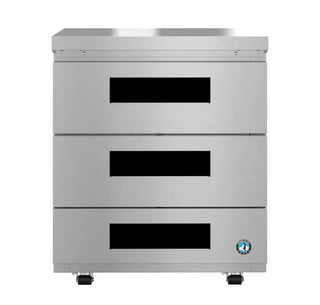

Hoshizaki UR27B-LPD3 Low Profile Refrigerator, Single Section Undercounter, Stainless Drawers, 6.21 cu. ft. Capacity, Flush-Mount Handles, Efficient Air Distribution, R290 Eco-Friendly Refrigerant
The UR27B-LPD3 Steelheart Series Undercounter single section low profile refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.21 cubic feet this efficient undercounter low profile refrigerator and front air flow design is perfect for hot/tight kitchens. The UR27B-LPD3 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR27B-LPD3 also includes drawers capacity: each drawer will accommodate (1) 12 x 20 full size pan (pans by others), (4) 2.25″ stem casters (2 with brakes) are standard, plus the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 0.65 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 4″ or 6″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bar. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ADA Compliant, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Design & ADA Compliance: Low-profile design at 31.9″ high, fully ADA compliant.
- Construction: Stainless steel exterior (front, sides, top) and stainless steel interior with extruded aluminum flush-mount handles.
- Storage Capacity: Net capacity of 6.21 cu. ft. with (3) stainless steel drawers of fully welded construction.
- Pan Capacity: Accommodates (1) 12″ x 20″ full-size pan per drawer (top & middle: up to 6″ deep; bottom: up to 4″ deep).
- Drawer Slides: 16-gauge stainless steel construction with acetal rollers.
- Airflow & Temperature: Innovative air distribution system maintains food-safe temperatures in 100°F ambient conditions.
- Evaporator Coil: Enamel-coated evaporator coil for extended life.
- Refrigerant & Compressor: Environmentally friendly R290 refrigerant with a nominal compressor capacity of 798 BTU/hr (1/6 HP).
- Insulation: 2″ CFC-free, foamed-in-place polyurethane insulation.
- Dimensions: Unit dimensions: 27″ W x 30″ D x 31.9″ H | Shipping crate: 34″ L x 31.5″ D x 35.5″ H.
- Weight: Shipping weight of 203 lbs.
- Electrical: 115V / 60Hz / 1Ph with a 10 ft. cord and plug.
- Casters: (4) 2.25″ stem casters included standard (2 with brakes).
- Warranty: 7-7-7 coverage (7 years labor, 7 years parts, 7 years compressor).
- Optional Accessories: 4″ or 6″ casters, single or double overshelves, stainless steel back, and drawer divider bars.
Specifications
| Pruduct Overview | Details |
| Electrical Connection | NEMA 5-15P plug with 10 ft. cord |
| Electrical Requirements | 115V / 60Hz / 1Ph |
| Amperage | 3.0 A |
| Max Fuse / HACR Breaker | 15 A |
| Energy Consumption | 0.65 kWh/day |
| Ambient Temp Range | 45°F – 100°F |
| Voltage Range | 104V – 126V |
| Control Setpoint Range | 32°F – 52°F |
| Refrigerant | R290 |
| Compressor Capacity | Nominal 798 BTU/hr at 1/6 HP |
| Heat Rejection | 152 BTU/hr |
| Net / Interior Capacity | 6.21 cu. ft. |
| Drawers Included | 3 |
| Drawer Opening Dimensions | 22.75″ W x 6.75″ H |
| Depth (Fully Extended Drawer) | 45.75″ D |
| Shipping Weight | 203 lbs |
| Warranty | 7-7-7 Coverage (7 Years Labor / 7 Years Parts / 7 Years Compressor) |
