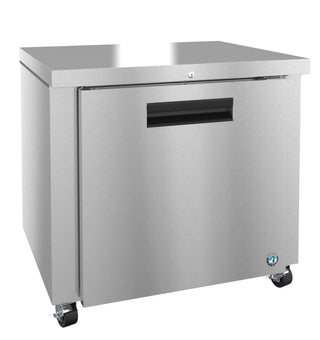

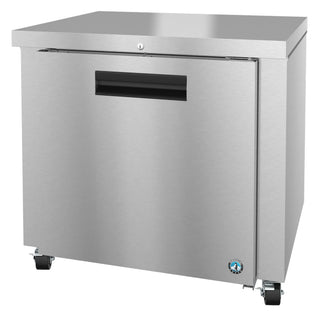

Hoshizaki UR36B-01 Refrigerator, Single Section Undercounter, Stainless Door With Lock, 8.64 cu. ft.
SKU: UR36B-01
Regular price $9,360.00 $3,768.00 60% off
Unit price
per
Fast & Reliable Shipping

Typically 5-7 Business Days

Regulatory Compliant

Registered & Certified Medical Equipment

Support

Need help?

Contact us

New
Sale

Hoshizaki UR36B-01 Refrigerator, Single Section Undercounter, Stainless Door With Lock, 8.64 cu. ft.

SKU: UR36B-01
Regular price $9,360.00 $3,768.00 60% off
Unit price
per
Availability

?
Inventory levels are dynamic and subject to change due to high demand.

Standard Warranty: 7 year labor & parts warranty , 7 years warranty on compressor

(0 in cart)
SSL SecureSecure Checkout Secure Checkout
Shipping calculated at checkout.

Fast & Reliable Shipping

Typically 5-7 Business Days

Regulatory Compliant

Registered & Certified Medical Equipment

Support

Need help?

Contact us

1

Hoshizaki UR36B-01 Refrigerator, Single Section Undercounter, Stainless Door With Lock, R290 Hydrocarbon Refrigerant, Net Capacity 8.64 cu. ft., Eco-Friendly Refrigeration, High-Ambient Performance, Advanced Air Distribution And Cooling

The UR36B-01 Steelheart Series Undercounter single section refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 8.64 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR36B-01 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The UR36B-01 also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 0.69 kWh/day at 2.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Includes cylinder locks (-01) (factory installed). The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.

Features

  • Dimensions & Capacity: 36″ W × 30″ D × 33.75″ H with a net storage capacity of 8.64 cu. ft.
  • Advanced Air Distribution & Cooling: Innovative air distribution system maintains uniform product temperatures; enamel-coated evaporator coil provides extended life.
  • Stainless Steel Construction: Stainless steel exterior (front, sides, top) and stainless steel interior for maximum durability and hygiene.
  • Reversible & Lockable Door:
  • Includes factory-installed key cylinder lock (-01 model).
  • Field-reversible, spring-assisted self-closing door with stay-open feature (no kit required).
  • (1) solid stainless steel door with ABS interior liner and an extruded aluminum flush-mount door handle.
  • Insulation & Shelving: 2″ CFC-free, foamed-in-place polyurethane insulation; includes (1) epoxy-coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports.
  • High-Ambient Performance: Engineered to maintain food-safe temperatures even in high 100°F ambient conditions.
  • Eco-Friendly Refrigeration: Uses environmentally safe R290 hydrocarbon refrigerant.
  • Mobility: Equipped with (4) 4″ stem casters standard (2 with brakes).
  • Defrost System: Features an automatic off-cycle defrost system.
  • Electrical & Compressor: 1/6 HP compressor (988 BTU/hr nominal rating); 115V / 60Hz / 1 Ph with a 10 ft. power cord and plug.
  • Shipping Dimensions & Weight: Shipping crate measures 40.5″ L × 34″ D × 36.5″ H at 204 lbs shipping weight.
  • Certifications & Warranty: ENERGY STAR® qualified; backed by a 7-7-7 Warranty (7 years parts, 7 years labor, 7 years compressor).

Specifications

Category Pruduct Overview Detail
Electrical Specs Electrical Connection 115V / 60Hz / 1 Ph, NEMA 5-15P (10 ft. cord and plug)
Amperage 2.5 A
Energy Consumption 0.69 kWh/day
Max Fuse / HACR Breaker 15 A
Operating Limits Ambient Temp Range 45°F – 100°F
Voltage Range 104V – 126V
Control Setpoint Range 32°F – 52°F
Refrigerant R290
Refrigeration Data Compressor Power / Capacity 1/6 HP (Nominal 988 BTU/hr)
Heat Rejection 184 BTU/hr
Storage & Dimensions Nominal Capacity 9.9 cu. ft.
Interior Net Capacity 8.64 cu. ft.
Door Opening 25.5″ W × 23″ H
Depth with Door Extended 58.5″ D
Shelves Included 1 epoxy-coated wire shelf
Shipping & Weight Shipping Weight 204 lbs
Warranty Coverage 7-7-7 Warranty (7 Years Labor, 7 Years Parts, 7 Years Compressor)
