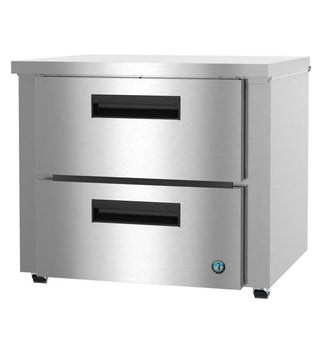

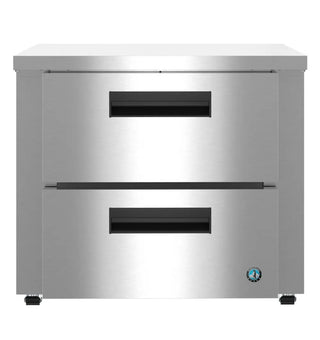

Hoshizaki UR36B-LPD2 Low Profile Refrigerator, Single Section Undercounter, Stainless Drawers, 8.64 cu. ft. Net Interior Capacity, ADA-Compliant Design, Heavy-Duty Performance, All-Stainless Steel Construction, Rugged Drawer Slides
The UR36B-LPD2 Steelheart® Series low profile undercounter two drawer refrigerator provides reliable refrigerated storage in a compact, ADA-compliant design. Engineered to maintain food safe temperatures in 100°F ambient conditions, it delivers consistent performance in busy commercial kitchens. With 8.64 cubic feet of net capacity, its reduced height and front airflow allow flexible installation beneath counters and work surfaces. The UR36B-LPD2 features durable stainless steel construction for long-lasting use and easy cleaning.
Features
- ADA-Compliant Design: Dimensions of 36″ W x 30″ D x 31.9″ H specifically engineered to fit under standard 34″ ADA-compliant work surface height counters.
- Storage Capacity: Generous 8.64 cu. ft. net interior capacity.
- Advanced Airflow System: Innovative air distribution technology ensures uniform cooling to maintain consistent product temperatures.
- Heavy-Duty Performance: Engineered to strictly maintain NSF-7 food storage temperatures in ambient environments up to 100°F.
- Front-Breathing Design: Front-breathing airflow allows for tight, zero-clearance installations against side walls and adjacent equipment.
- All-Stainless Steel Construction: Heavy-gauge stainless steel exterior (front, sides, top) and interior for maximum durability and effortless sanitation.
- Eco-Friendly Insulation: Insulated with 2″ CFC-free, foamed-in-place polyurethane for optimal thermal efficiency.
- Heavy-Duty Drawers: Features (2) stainless steel drawers with fully welded construction, securely anchored to the main cabinet.
- Rugged Drawer Slides: Constructed with 14-gauge stainless steel drawer slides and smooth, long-lasting acetal rollers.
- High Dynamic Load Capacity: Heavy-duty drawers are rated to support up to 150 lbs. dynamic load.
- Versatile Pan Capacity:
- Top Drawer: Holds (1) 12″ x 20″ full-size pan and (3) 1/6 size pans.
- Bottom Drawer: Holds (1) 12″ x 20″ full-size pan (Pans supplied by others).
- Sleek Drawer Handles: Flush-mounted extruded aluminum handles provide a clean look and prevent snagging in tight kitchen aisles.
- Hot Gas Condensate Removal: Energy-efficient automatic hot gas condensate evaporator system.
- Protective Evaporator Coating: Enamel-coated evaporator coil protects against corrosion for extended operational life.
- Environmentally Friendly: Operates on eco-friendly R290 hydrocarbon refrigerant with near-zero Global Warming Potential (GWP).
- Included Mobility Package: Comes standard with (4) 2.25″ stem casters (2 featuring locking brakes) for easy maneuvering and cleaning access.
Specifications
| Category | Feature / Attribute | Details |
| Electrical Specs | Electrical Connection | 115V / 60Hz / 1 Ph |
| Plug Type | NEMA 5-15P (10 ft. cord and plug included) | |
| Energy Consumption | 0.69 kWh/day | |
| Amperage | 3.0 Amps | |
| Max Fuse / HACR Breaker | 15 Amps | |
| Operating Limits | Ambient Temp Range | 45°F – 100°F |
| Voltage Range | 104V – 126V | |
| Control Setpoint Range | 32°F – 52°F | |
| Refrigerant Type & Charge | R290 (2.3 oz.) | |
| Refrigeration Data | Compressor Power | 1/6 HP (Nominal 988 BTU/hr) |
| Heat Rejection | 184 BTU/hr | |
| Storage Specs | Interior Capacity | 8.64 cu. ft. |
| Drawers Included | 2 Stainless Steel Drawers | |
| Drawer Opening | 25.5″ W x 23″ H | |
| Depth (Fully Extended) | 52″ D | |
| Weight & Warranty | Shipping Weight | 232 lbs. |
| Warranty Coverage | 7 Years Parts / 7 Years Labor / 7 Years Compressor |
