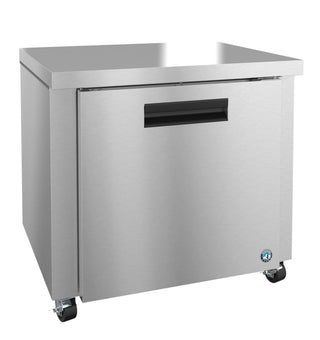

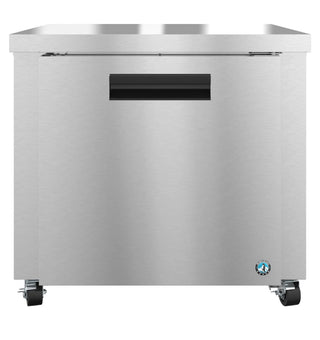

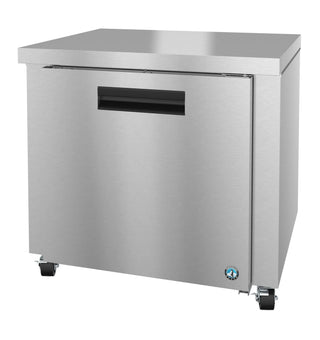

Hoshizaki UR36B Refrigerator, Single Section Undercounter, Stainless Door, Net Capacity 8.64 cu. ft., Natural R290 refrigerant, Self-Closing And Stay-Open Feature, Extreme Duty Performance, ENERGY STAR Qualified
The UR36B Steelheart Series Undercounter single section refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 8.64 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR36B is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR36B also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 0.69 kWh/day at 2.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Epoxy wire shelf, Stainless steel shelf, Overshelves, Lock, See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Dimensions: 36″ W x 30″ D x 33.75″ H
- Net Capacity: 8.64 cubic feet
- Construction: Full stainless steel exterior (front, sides, top) and stainless steel interior
- Door Specs: (1) Stainless steel door with ABS interior liner and extruded aluminum flush-mount handle
- Door Functionality: Field-reversible, spring-assisted self-closing door with stay-open feature (no kit required)
- Insulation: 2″ CFC-free, foamed-in-place polyurethane insulation
- Refrigeration System: Natural R290 refrigerant with an automatic off-cycle defrost
- Airflow & Cooling: Innovative air distribution system distributes air evenly to maintain product temperature
- Ambient Rating: Engineered to maintain food-safe temperatures in 100°F ambient conditions
- Evaporator Coil: Enamel-coated evaporator coil for extended operational life
- Compressor Rating: Nominal compressor capacity of 988 BTU/hr at 1/6 HP
- Shelving: (1) Epoxy-coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports
- Electrical: 115V / 60Hz / 1 Ph with a 10 ft. power cord and standard plug included
- Casters: (4) 4″ stem casters (2 with brakes) standard
- Shipping Specs: Shipping crate dimensions of 40.5″ L x 34″ D x 36.5″ H at a total shipping weight of 204 lbs
- Efficiency & Certifications: ENERGY STAR® qualified
- Warranty: 7-7-7 Warranty (7 years labor, 7 years parts, 7 years compressor)
- Optional Accessories: 2.25″ or 6″ casters, additional epoxy wire shelves, stainless steel shelves, overshelves, door lock, and more
Specifications
| Category | Parameter | Value |
| Electrical Specs | Electrical Connection / Plug | NEMA 5-15P (10 ft. cord and plug included) |
| Voltage / Frequency | 115V / 60Hz / 1 Ph | |
| Energy Consumption | 0.69 kWh/day | |
| Amperage | 2.5 A | |
| Max Fuse / HACR Breaker | 15 A | |
| Operating Limits | Ambient Temperature Range | 45°F – 100°F (7.2°C – 37.8°C) |
| Voltage Range | 104V – 126V | |
| Control Setpoint Range | 32°F – 52°F (0°C – 11.1°C) | |
| Refrigerant | R290 Hydrocarbon | |
| Refrigeration Data | Compressor Capacity / Power | Nominal 988 BTU/hr at 1/6 HP |
| Heat Rejection | 184 BTU/hr | |
| Storage Specs | Nominal Storage Capacity | 9.9 cu. ft. |
| Interior Storage Capacity (Net) | 8.64 cu. ft. | |
| Door Opening Dimensions ($W \times H$) | 25.5″ W x 23″ H | |
| Depth with Door Fully Extended | 58.5″ D | |
| Shelves Included | 1 (Epoxy-coated wire) | |
| Weight | Shipping Weight | 204 lbs |
| Warranty | Warranty Coverage | 7 Years Labor / 7 Years Parts / 7 Years Compressor |
