Key specs
See all specifications- Capacity
- 12.0 cu.ft. (340 L)
- Temperature
- 0° C to 11.1° C
- Door
- Solid, reversible hinge
- Size (W × D × H)
- 48.0" × 30.0" × 33.75"
Key specs
See all specifications- Capacity
- 12.0 cu.ft. (340 L)
- Temperature
- 0° C to 11.1° C
- Door
- Solid, reversible hinge
- Size (W × D × H)
- 48.0" × 30.0" × 33.75"
Overview
From the manufacturer

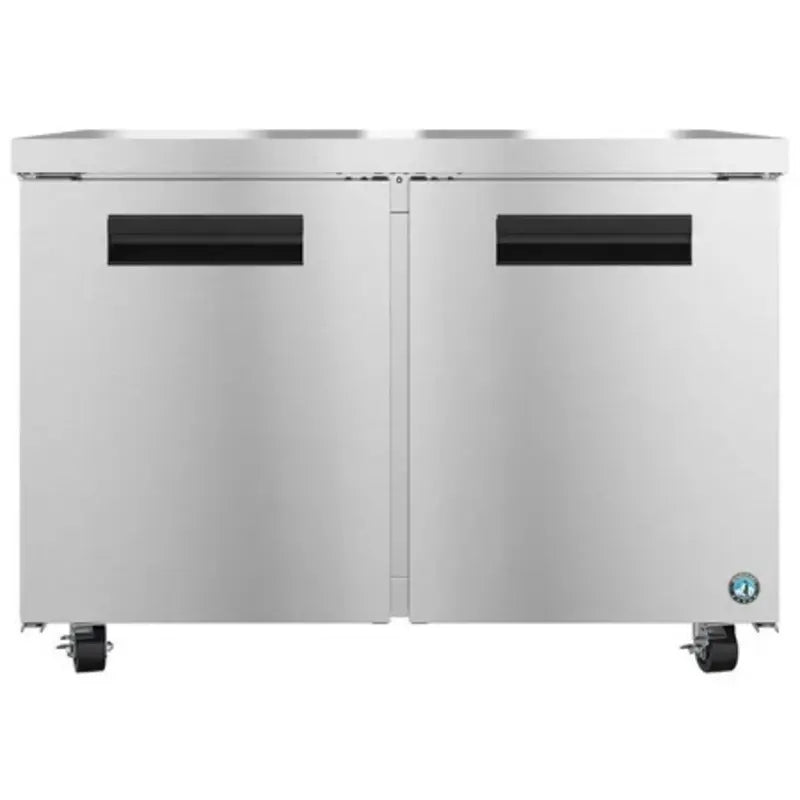

The UR48B Steelheart Series Undercounter two section refrigerator with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR48B is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR48B also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 1.05 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Epoxy wire shelf, Stainless steel shelf, Overshelves, See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
Key features
- Exterior & Interior Construction: Heavy-duty stainless steel exterior (front, sides, and top) paired with a clean stainless steel interior.
- Storage Capacity & Dimensions: 12 cu. ft. net storage capacity; overall dimensions measure 48″ W × 30″ D × 33.75″ H.
- Door Design & Hardware: Features (2) solid stainless steel doors with ABS interior liners and sleek extruded aluminum flush-mount handles.
- Self-Closing & Reversible Doors: Field-reversible, spring-assisted self-closing doors with a built-in stay-open feature (no kit required).
- Advanced Airflow System: Innovative air distribution system distributes cold air evenly throughout the cabinet to maintain product temperature.
- High Ambient Cooling: Engineered to maintain food-safe storage temperatures even in demanding 100°F ambient kitchen environments.
- Eco-Friendly Refrigerant: Utilizes R290 hydrocarbon refrigerant for superior thermal efficiency and low environmental impact.
- Evaporator Protection: Enamel-coated evaporator coil provides extended operating life and corrosion resistance.
- Defrost System: Equipped with an automatic off-cycle defrost system for hassle-free maintenance.
- Cabinet Insulation: Insulated with 2″ CFC-free, foamed-in-place polyurethane for maximum thermal efficiency.
- Adjustable Shelving: Comes with (2) epoxy-coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports.
- Compressor & Electrical: 1/5 HP compressor (798 BTU/hr nominal capacity); operates on 115V / 60Hz / 1-ph and includes a 10 ft. cord with plug.
- Casters Included: Comes standard with (4) 4″ stem casters (2 equipped with brakes).
- Shipping Specifications: Crate dimensions are 52.5″ L × 34″ D × 36.5″ H with a total shipping weight of 249 lbs.
- Energy Efficiency & Certification: ENERGY STAR® qualified for reduced energy consumption and lower utility costs.
- Comprehensive Warranty: Backed by an industry-leading 7-7-7 Warranty (7 years labor, 7 years parts, 7 years compressor).
- Optional Add-ons: Compatible with optional 2.25″ or 6″ casters, additional epoxy-coated or stainless steel shelves, overshelves, and other factory accessories.
Specifications
Manufacturer data. Imperial with metric in brackets.
Category Overview Details
- Electrical Data
- Electrical Connection, NEMA Plug Type, Amperage, Max Fuse / HACR Breaker, Energy Consumption
- Operating Limits
- Ambient Temperature Range, Voltage Range, Control Setpoint Range, Refrigerant Type
- Refrigeration Data
- Compressor Power / Capacity, Heat Rejection
- Storage & Dimensions
- Nominal Storage Capacity, Interior Storage Capacity, Door Opening (W × H), Depth with Door Open (90°), Shelves Included
- Weight & Shipping
- Shipping Weight
- Warranty
- Warranty Coverage
Documents
Files from the manufacturer
Shipping & returns
Ships by freight or parcel depending on size. The shipping cost is calculated and confirmed at checkout.
View the return policy for this itemWarranty
5 year labor & parts warranty. 7 years warranty on the compressor.
Optional CPS protection plans can be added before checkout.
