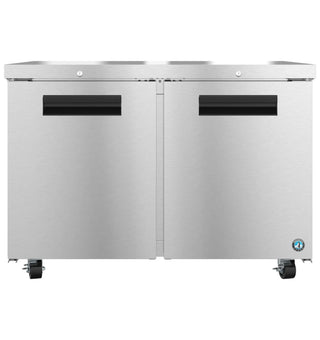

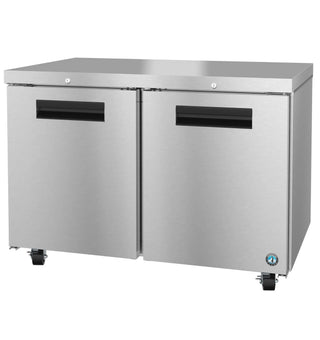

Hoshizaki UR48B-01 Refrigerator, Two Section Undercounter, Stainless Doors With Lock, R290 Hydrocarbon Refrigerant, Adjustable Storage Shelving, 12 cu. ft. Net Capacity, Factory-Installed Door Locks
The UR48B-01 Steelheart Series Undercounter two section refrigerator with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR48B-01 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR48B-01 also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 1.05 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Includes cylinder locks (-01) (factory installed). The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Generous Interior Capacity & Compact Footprint: Exterior dimensions of 48″ W x 30″ D x 33.75″ H with a 12 cu. ft. net interior storage capacity.
- All-Stainless Construction: Built with a durable stainless steel exterior (front, sides, top) and a matching stainless steel interior for maximum sanitation and longevity.
- Factory-Installed Door Locks (-01 Model): Includes standard factory-installed cylinder key locks for added security.
- Innovative Air Distribution System: Advanced airflow circulation ensures cold air is evenly distributed to maintain stable product temperatures throughout the cabinet.
- High-Ambient Performance: Engineered to reliably maintain food-safe temperatures even in demanding 100°F ambient kitchen environments.
- Extended-Life Evaporator Coil: Features an enamel-coated evaporator coil for enhanced corrosion resistance and long operating life.
- User-Friendly Solid Doors:
- Two (2) solid stainless steel doors with ABS interior liners.
- Field-reversible, spring-assisted self-closing design with a stay-open feature (no conversion kit required).
- Extruded aluminum flush-mount door handles.
- Eco-Friendly & Energy Efficient: Uses green R290 hydrocarbon refrigerant and is ENERGY STAR® qualified.
- Superior Thermal Insulation: Insulated with 2″ thick, CFC-free foamed-in-place polyurethane for maximum cold retention and energy savings.
- Adjustable Storage Shelving: Includes two (2) epoxy-coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports.
- Easy Mobility: Equipped standard with four (4) 4″ stem casters (2 with brakes).
- Reliable Refrigeration Specs: Powered by a 1/5 HP compressor (798 BTU/hr nominal capacity); comes with a 115V/60Hz/1-ph electrical connection and a 10 ft. cord and plug.
- Automatic Defrost: Features an automatic off-cycle defrost system to prevent ice buildup.
- 7-7-7 Warranty Protection: Backed by an industry-leading 7-year labor, 7-year parts, and 7-year compressor warranty.
Specifications
| Category | Overview | Details |
| Dimensions & Capacity | Exterior Dimensions (W × D × H) | 48″ × 30″ × 33.75″ |
| Depth with Door Fully Extended | 52.5″ D | |
| Door Opening Dimensions (W × H) | 19.5″ W × 23″ H | |
| Nominal Storage Capacity | 13.66 cu. ft. | |
| Net Interior Storage Capacity | 12.0 cu. ft. | |
| Shelves Included | (2) Epoxy-coated wire shelves | |
| Electrical Data | Voltage / Frequency / Phase | 115V / 60 Hz / 1-Phase |
| Plug Type & Cord | NEMA 5-15P with 10 ft. cord and plug | |
| Amperage | 3.0 Amps | |
| Max Fuse / HACR Breaker | 15 Amps | |
| Energy Consumption | 1.05 kWh/day | |
| Refrigeration & Performance | Refrigerant | R290 |
| Compressor Power / Nominal Capacity | 1/5 HP / 798 BTU/hr | |
| Heat Rejection | 278 BTU/hr | |
| Defrost Type | Automatic off-cycle defrost | |
| Operating Limits | Ambient Temperature Range | 45°F – 100°F |
| Voltage Range | 104V – 126V | |
| Control Setpoint Range | 32°F – 52°F | |
| Shipping Data | Shipping Crate Dimensions (L × D × H) | 52.5″ L × 34″ D × 36.5″ H |
| Shipping Weight | 249 lbs | |
| Warranty | Warranty Coverage | 7-7-7 (7 Years Labor / 7 Years Parts / 7 Years Compressor) |
