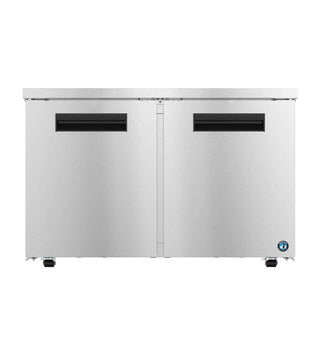

Hoshizaki UR48B-LP Low Profile Refrigerator, Two Section Undercounter, Stainless Doors, R290 Hydrocarbon Refrigerant, ADA Compliant Low Profile Design, Advanced Airflow Performance, ENERGY STAR Qualified, Adjustable Shelving, Flush Mount Handles
The UR48B-LP Steelheart Series Undercounter two section low profile refrigerator with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter low profile refrigerator and front air flow design is perfect for hot/tight kitchens. The UR48B-LP is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR48B-LP also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 2.25″ stem casters (2 with brakes) are standard, plus field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 1.05 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 4″ or 6″ casters, Epoxy wire shelf, Stainless steel back, Overshelves (single or double), Foot pedal kit (left or right hinge), See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ADA Compliant, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- ADA Compliant Low Profile Design: Standing at only 31.9″ tall, this low profile refrigerator meets ADA (Americans with Disabilities Act) compliance standards.
- Durable Stainless Steel Construction: Features a stainless steel exterior (front, sides, top) and a stainless steel interior.
- Advanced Airflow Performance: Innovative air distribution system distributes air evenly to maintain consistent product temperature.
- Extended Evaporator Life: Enamel-coated evaporator coil provides extra corrosion resistance and extended service life.
- High Ambient Temperature Rating: Engineered to maintain food-safe temperatures even in 100°F ambient conditions.
- Superior Insulation: Insulated with 2″ CFC-free, foamed-in-place polyurethane.
- Eco-Friendly Refrigerant: Utilizes R290 hydrocarbon refrigerant.
- ENERGY STAR® Qualified: Ensures high energy efficiency and reduced operating costs.
- 7-7-7 Warranty: Covered by a 7-year labor, 7-year parts, and 7-year compressor warranty.
- User-Friendly Door System: Field-reversible, spring-assisted self-closing doors with a stay-open feature (no kit required).
- ABS Door Liners: (2) stainless steel doors equipped with durable ABS interior liners.
- Flush Mount Handles: Sleek extruded aluminum flush mount door handles.
- Adjustable Shelving: Includes (2) epoxy-coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports.
- Ample Capacity: Net capacity of 12 cubic feet.
Specifications
| Category / Property | Technical Details |
| Electrical Specs | |
| Electrical Connection | 115V / 60Hz / 1-Phase |
| Plug Type | NEMA 5-15P |
| Power Cord | 10 ft. cord and plug |
| Energy Consumption | 1.05 kWh/day |
| Amperage | 3 A |
| Max Fuse / HACR Breaker | 15 A |
| Operating Limits | |
| Ambient Temp Range | 45 – 100°F |
| Voltage Range | 104 – 126V |
| Control Setpoint Range | 32 – 52°F |
| Refrigerant | R290 |
| Refrigeration Data | |
| Nominal Compressor Capacity | 798 BTU/hr at 1/5 HP |
| Heat Rejection | 278 BTU/hr |
| Storage Specs | |
| Nominal Storage Capacity | 12 ft³ |
| Interior Storage Capacity | 12 ft³ |
| Door Opening Dimensions | 19.5″ W x 23″ H |
| Depth with Door Open (90°) | 51.5″ D |
| Shelves Included | 2 |
| Shipping Weight | |
| Gross Weight | 249 lbs |
| Warranty | |
| Warranty Coverage | 7 Years Labor / 7 Years Parts / 7 Years Compressor |
