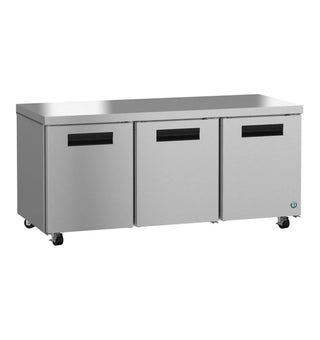

Hoshizaki UR72B Refrigerator, Three Section Undercounter, Stainless Doors, R290 Hydrocarbon Refrigerant, Heavy-Duty Construction, Optimized Cooling Performance, Ergonomically Designed Doors, Self-Closing And Reversible Doors, Evaporator Protection
The UR72B Steelheart Series Undercounter three section refrigerator with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 18.27 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR72B is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR72B also includes (3) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 1.12 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Stacking Kit, Epoxy wire shelf, Stainless steel shelf, Overshelves, See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Capacity & Dimensions: 18.27 cu. ft. net capacity with overall dimensions of 72″ W x 30″ D x 33.63″ H.
- Heavy-Duty Construction: Stainless steel exterior (front, sides, top) and stainless steel interior with 2″ CFC-free, foamed-in-place polyurethane insulation.
- Optimized Cooling Performance: Innovative air distribution system distributes air evenly to maintain consistent product temperatures.
- Ambient Condition Rating: Engineered to maintain food-safe temperatures even in 100°F ambient conditions.
- Evaporator Protection: Enamel-coated evaporator coil for enhanced corrosion resistance and extended life.
- Eco-Friendly Refrigerant: Utilizes R290 hydrocarbon refrigerant.
- Ergonomically Designed Doors: (3) stainless steel doors with ABS interior liners and extruded aluminum flush-mount handles.
- Self-Closing & Reversible Doors: Field-reversible, spring-assisted self-closing doors with stay-open feature (no kit required).
- Adjustable Shelving: (3) epoxy-coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports.
- Defrost System: Automatic off-cycle defrost for energy-efficient operation.
- Standard Casters: Includes (4) 4″ stem casters (2 with brakes).
- Power Specifications: Nominal 1/5 HP compressor (1354 BTU/hr) operating on 115V/60/1 with a 10 ft. cord and plug included.
- Energy Efficiency: ENERGY STAR® qualified for reduced power consumption.
- Shipping Specs: Shipping crate dimensions of 73.75″ L x 32″ D x 36.5″ H at 339 lbs.
- Coverage & Options: Backed by a 7-7-7 warranty (7 years labor, 7 years parts, 7 years compressor), with optional kits for 2.25″ or 6″ casters, stacking, overshelves, and additional shelves.
Specifications
| Category | Overview | Details |
| Electrical Specs | Electrical Connection | 115V / 60Hz / 1-Phase, NEMA 5-15P plug (10 ft. cord included) |
| Energy Consumption | 1.12 kWh/day | |
| Amperage | 3.0 A | |
| Max Fuse / HACR Breaker | 15 A | |
| Operating Limits | Ambient Temp Range | 45°F – 100°F |
| Voltage Range | 104V – 126V | |
| Control Setpoint Range | 32°F – 52°F | |
| Refrigerant | R290 (Hydrocarbon) | |
| Refrigeration Data | Compressor | Nominal 1/5 HP (1354 BTU/hr) |
| Heat Rejection | 360 BTU/hr | |
| Storage Specs | Nominal Capacity | 21.25 cu. ft. |
| Net (Interior) Capacity | 18.27 cu. ft. | |
| Door Opening (W × H) | 19.5″ × 23″ | |
| Depth (Door Open 90°) | 52.5″ | |
| Shelves Included | (3) Epoxy-coated wire shelves | |
| Dimensions & Weight | Overall Dimensions (W × D × H) | 72″ × 30″ × 33.63″ |
| Shipping Weight | 339 lbs. | |
| Warranty | Manufacturer Warranty | 7-7-7 (7 Years Labor / 7 Years Parts / 7 Years Compressor) |
