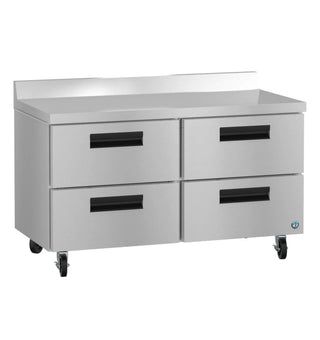

Hoshizaki WF48B-D4 Freezer, Two Section Worktop, Stainless Drawers, Eco-Friendly R290 Hydrocarbon Refrigerant, Ambient Operating Conditions, Optional Field Kits And Accessories, Drawer Hardware
The WF48B-D4 Steelheart Series Worktop two section freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient worktop freezer and front air flow design is perfect for hot/tight kitchens. The WF48B-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The WF48B-D4 also includes Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others), (4) 6″ stem casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 3.6 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 4″ casters, Overshelves, Stainless steel back, Drawer divider bars. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Overall Exterior Dimensions: 48″ Width x 30″ Depth x 40″ Height (Height includes standard 6″ stem casters)
- Shipping Crate Dimensions: 52.5″ Length x 34″ Depth x 40.5″ Height
- Shipping Weight: 346 lbs
- Storage Capacity: Net usable capacity of 12.0 cubic feet
- Cabinet Construction: Heavy-duty stainless steel exterior (front, sides, and worktop surface) paired with a sanitary stainless steel interior
- Thermal Insulation: 2″ thick CFC-free, foamed-in-place polyurethane insulation for maximum temperature retention and energy efficiency
- Drawer Configuration: (4) fully welded stainless steel drawers, securely mounted to the cabinet frame
- Drawer Hardware: 16-gauge stainless steel drawer slides equipped with high-durability acetal rollers
- Drawer Handles: Ergonomic extruded aluminum flush-mount handles
- Top Drawers Capacity: Holds (1) 1/2-size pan and (1) 1/3-size pan up to 4″ deep (pans sold separately)
- Bottom Drawers Capacity: Holds (1) 1/2-size pan and (1) 1/3-size pan up to 6″ deep (pans sold separately)
- Refrigeration System: Eco-friendly R290 hydrocarbon refrigerant
- Airflow System: Advanced airflow distribution system ensures even air circulation to maintain precise, food-safe product temperatures
- Evaporator Coil: Enamel-coated evaporator coil for superior corrosion resistance and extended service life
- Compressor Rating: Powered by a 1/3 HP compressor generating a nominal capacity of 1,426 BTU/hr
- Defrost Mechanism: Automatic, time-initiated heated defrost system
- Ambient Operating Conditions: Engineered to reliably maintain food-safe storage temperatures in ambient environments up to 100°F
- Electrical Requirements: 115V / 60 Hz / 1-Phase power supply with a factory-attached 10 ft. power cord and plug
- Standard Mobility: Ships standard with (4) heavy-duty 6″ stem casters (2 with locking brakes)
- Optional Field Kits & Accessories: 2.25″ or 4″ low-profile casters, overshelves, stainless steel back cover kit, and stainless steel drawer divider bars
- Manufacturer Warranty: 7-7-7 Warranty (7 years parts coverage, 7 years labor coverage, and 7 years compressor coverage)
Specifications
| Category | Details |
| Model | Hoshizaki WF48B-D4 |
| Product Type | Two-Section Worktop Freezer with Stainless Drawers |
| Overall Dimensions ($W \times D \times H$) | $48'' \times 30'' \times 40''$ (includes 6" stem casters) |
| Depth with Drawer Fully Extended | $52''$ |
| Interior Storage Capacity | 12.0 $\text{ft}^3$ |
| Nominal Storage Capacity | 13.66 $\text{ft}^3$ |
| Number of Drawers | 4 Stainless Steel Drawers |
| Top Drawer Pan Capacity | (1) $1/2$-size & (1) $1/3$-size pan up to 4" deep (pans sold separately) |
| Bottom Drawer Pan Capacity | (1) $1/2$-size & (1) $1/3$-size pan up to 6" deep (pans sold separately) |
| Electrical Supply | 115V / 60 Hz / 1-Phase |
| Amperage | 4.0 Amps |
| Max Fuse / HACR Breaker | 15 Amps |
| Electrical Plug & Cord | NEMA 5-15P plug with 10 ft. power cord |
| Energy Consumption | 3.6 kWh/day |
| Refrigerant Type | Eco-friendly R290 |
| Compressor Rating | 1/3 HP (1,426 BTU/hr nominal capacity) |
| Heat Rejection | 756 BTU/hr |
| Defrost System | Automatic time-initiated heated defrost |
| Control Setpoint Range | $-10^\circ\text{F}$ to $+10^\circ\text{F}$ |
| Ambient Temperature Range | $45^\circ\text{F}$ to $100^\circ\text{F}$ |
| Voltage Operating Range | 104V to 126V |
| Shipping Crate Dimensions | $52.5'' \text{ L} \times 34'' \text{ D} \times 40.5'' \text{ H}$ |
| Shipping Weight | 346 lbs |
| Manufacturer Warranty | 7-7-7 Warranty (7 Years Parts, 7 Years Labor, 7 Years Compressor) |
