Whitehall HydroLift HYL-10-M Professional 10-Gallon Mobile Extremity Whirlpool with Hydrolift Elevation for Arm/Leg Hydrotherapy in PT, Podiatry & OT

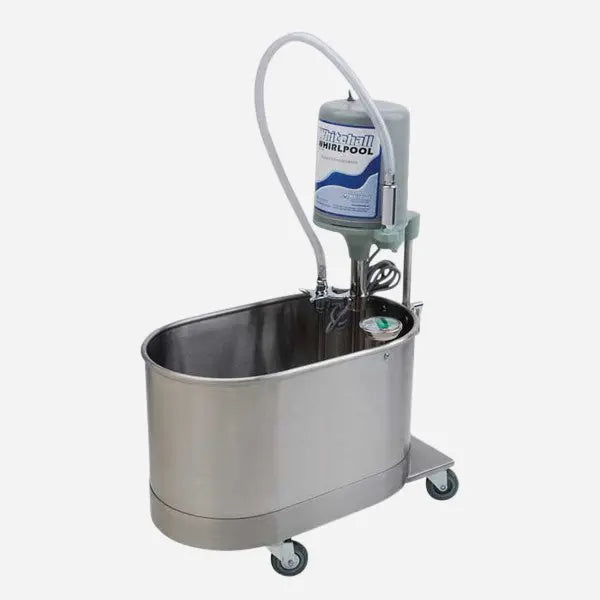

Whitehall’s HYL-10-M 10-Gallon Mobile Hydrolift Whirlpool offers compact, versatile hydrotherapy for upper/lower extremities like arms, wrists, hands, legs, ankles, and feet in podiatry, physical/occupational therapy, athletic training, chiropractic, and long-term care settings. The adjustable Hydrolift raises/lowers the stainless steel tank up to 53 inches for ergonomic access, staying stationary during sessions while enabling caster-based mobility when floor-lowered. Switch seamlessly between warm whirlpool agitation (1/2 HP turbine) and cold tank mode by removing the turbine/thermometer. Durable Type 304 stainless steel construction resists corrosion and sanitizes easily; optional Enviro-Glaze powder coating for branding. UL-listed turbine meets US/Canadian/European medical standards; made in the USA with a 3-year warranty for reliable, infection-controlled performance.
Features:

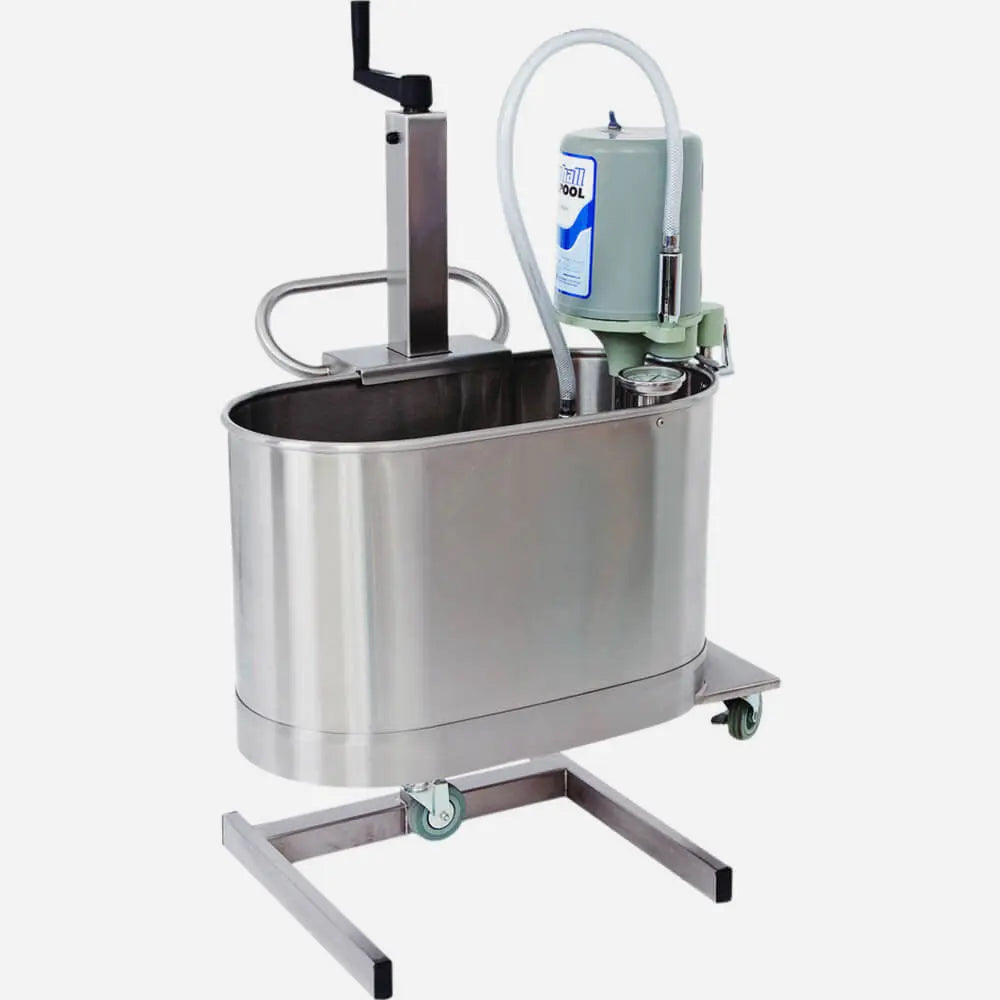

- Hydrolift mechanism elevates tank rim up to 53" for comfortable clinician/patient positioning, reducing strain in extremity treatments
- Mobile design with heavy-duty locking casters for easy transport; lowers to floor for stability or relocation between rooms
- 10-gallon capacity with 1/2 HP turbine for adjustable agitation; converts to cold tank by removing turbine/thermometer
- Spacious tank (22" L x 13" W x 12" D x 17" H) optimizes immersion for arms, legs, and joints without overflow
- Type 304 stainless steel tank for superior strength, easy cleaning, and sanitization; optional powder coating for logos/team colors
- UL-listed turbine with thermal overload protection, sealed bearings, and pump-out hose for reversing to drain into sinks
- Versatile for warm/cold therapy: Enhances circulation, reduces edema, and aids healing in podiatry/hand therapy/PT protocols
- Compact base (19" x 19.5") fits tight spaces; cord options for 115V (6.2-6.9A) or 230V (3.1-3.5A) global compatibility
- Made in USA for medical-grade durability and compliance with IEC/UL 60601-1 standards
Specifications:
| Specification | Details |
|---|---|
| Model | HYL-10-M Mobile Whirlpool |
| Brand | Whitehall |
| Capacity | 10 Gallons (37.85 L) |
| Tank Dimensions | 22" L x 13" W x 12" D x 17" H (560 mm x 330 mm x 305 mm x 430 mm) |
| Hydrolift Max Height | 53" (1,345 mm) |
| Base Dimensions | 19" Side-to-Side x 19.5" Front-to-Back (485 mm x 495 mm) |
| Body Areas Treated | Arm, Wrist, Hand, Leg, Ankle, Foot |
| Applications | Podiatry, Physical/Occupational Therapy, Athletic Training, Chiropractic, Long-Term Care |
| Turbine Power | 1/2 HP Jet Pump (UL-Listed) |
| Voltage/Current | 115V (6.2-6.9A) or 230V (3.1-3.5A), 50/60 Hz |
| Material | Type 304 Stainless Steel Tank & Frame |
| Mobility | Heavy-Duty Locking Casters |
| Weight | 65 lbs (Shipping) |
| Warranty | 3-Year Limited |
| Compliance | UL 60601-1, CSA C22.2 No. 601.1, IEC 60601-1; Prop 65 Warning |
Contents:
| Description | Quantity |
|---|---|
| 10-Gallon Mobile Whirlpool Tank | 1 |
| Integrated Hydrolift Mechanism | 1 |
| 1/2 HP Turbine Assembly with Pump-Out Hose | 1 |
| Thermometer | 1 |
| Lockable Casters Set | 4 |
| User Manual & Setup Guide | 1 |
