IBI Scientific IB56000B HR-2025 Horizontal Electrophoresis System for 160 Samples, 1200ml Buffer, 200V Max with Recirculation for PCR/RFLP Screening

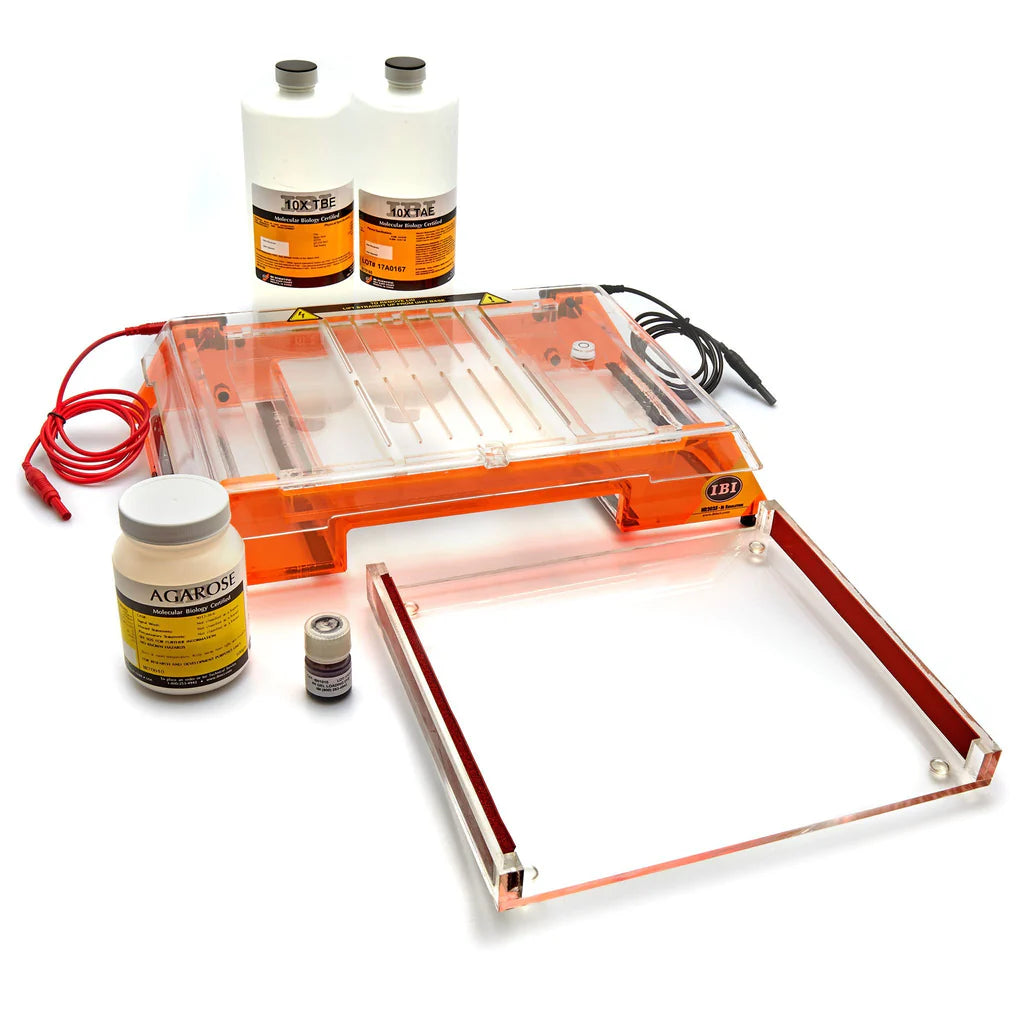

IBI’s HR-2025 High-Resolution Electrophoresis Gel Box is ideal for separation of nucleic acids in agarose gels. It is designed for rapid screening of PCR fragments, RFLP analysis or plasmid screening, field inversion, genomic DNA separations, and electrophoresis procedures requiring recirculation. The HR-2025 is constructed of durable cast acrylic which stands up to high voltages and extreme temperatures without cracking or warping for years of dependable operation. The combs are machined Delrin™ and come in a variety of configurations including some that are multi-channel pipette compatible. The unit can accommodate up to 4 combs, each containing 40 wells, for a total of 160 samples. The quick casting system is based on a compressible gasket for ease of use without the need for adjustments or leaky gates. The HR-2025 is designed for high resolution electrophoresis. The maximum suggested applied voltage for the electrophoresis of DNA in agarose gels using the HR-2025 is 140 V. The suggested run parameters for the electrophoresis of RNA in agarose gels containing formaldehyde is 60-80 V. The IB56000 has a patented vented lid. Patent# 5,779,869. Additional combs can be purchased including combs compatible with multi-channel pipettes and preparatory combs. Unit dimensions: 8.3 cm (H) x 23.5 cm (W) x 39.4 cm (L).
Features:
- High-resolution separations for PCR fragments/RFLP/plasmid screening
- Recirculation ports for buffer maintenance in extended runs
- Durable cast acrylic resists high voltage/heat without warping
- Supports up to 160 samples with multi-channel pipette combs
- Quick compressible gasket casting system, no adjustments needed
- Max 200V with 140V recommended for DNA; 60-80V for RNA
Specifications:
| Specification |
Details |
| Model |
IB56000B HR-2025 |
| Gel Dimensions |
20.0 cm (W) x 25.0 cm (L) |
| Max Sample Capacity |
160 samples (4 combs x 40) |
| Buffer Capacity |
1200 ml |
| Electrode Distance |
35.0 cm |
| Max Voltage |
200 V |
| Unit Dimensions (H x W x L) |
8.3 cm x 23.5 cm x 39.4 cm |
| Material |
Cast Acrylic |
| Warranty |
1-Year Limited |
| Shipping Weight |
6 lbs |
| Carton Dimensions |
12" x 12" x 8" |

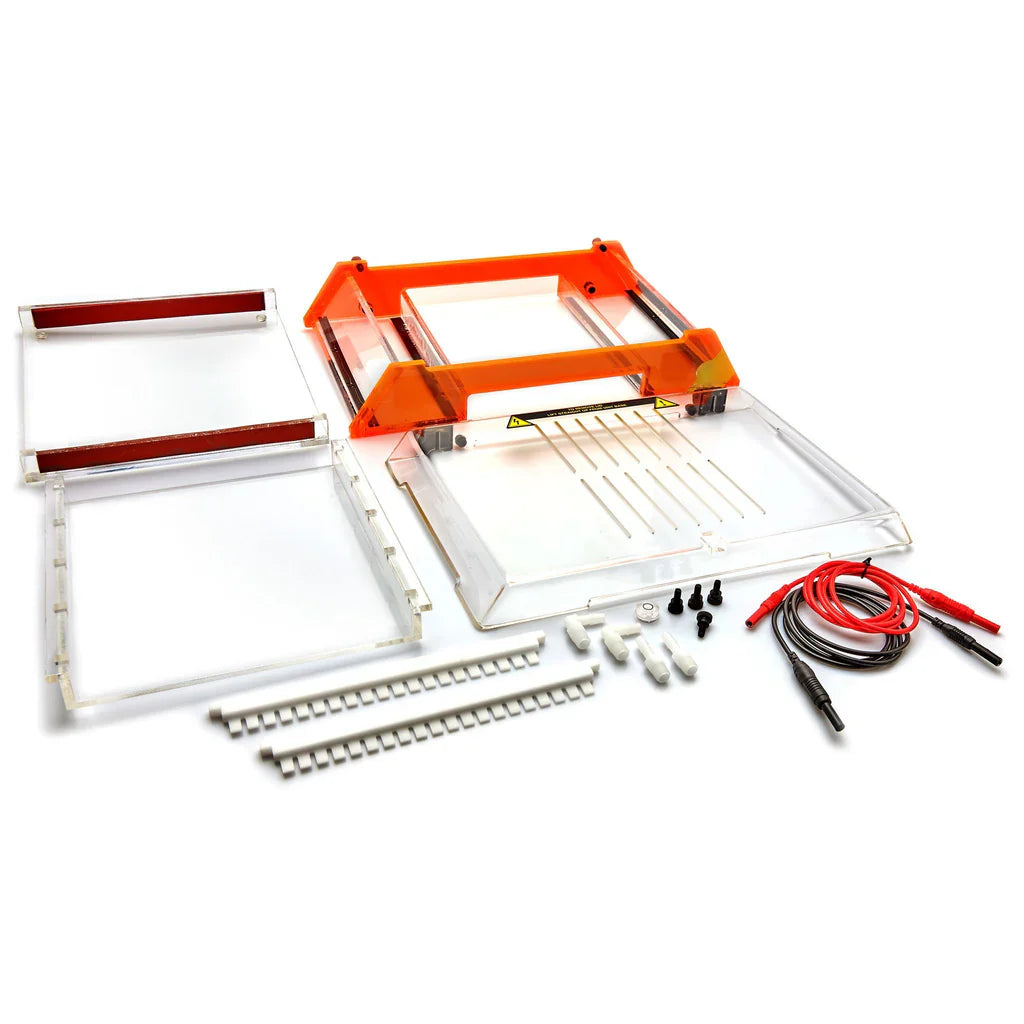

Contents:
| Description |
Quantity |
| Vented Lid |
1 |
| UVT Casting Tray |
1 |
| Casting Fixture |
1 |
| 2.0 mm x 20 Tooth Combs |
2 |
| Bubble Level |
1 |
| Buffer Ports |
1 |
| Adjustable Feet |
4 |
| Power Cords |
1 |
