IBI Scientific IB62000 Vertical Electrophoresis System for 20 Samples, 600V Max, 22x18cm Gels, 460ml Buffer, 600V Max with Notched Plates for Protein/NA Blotting

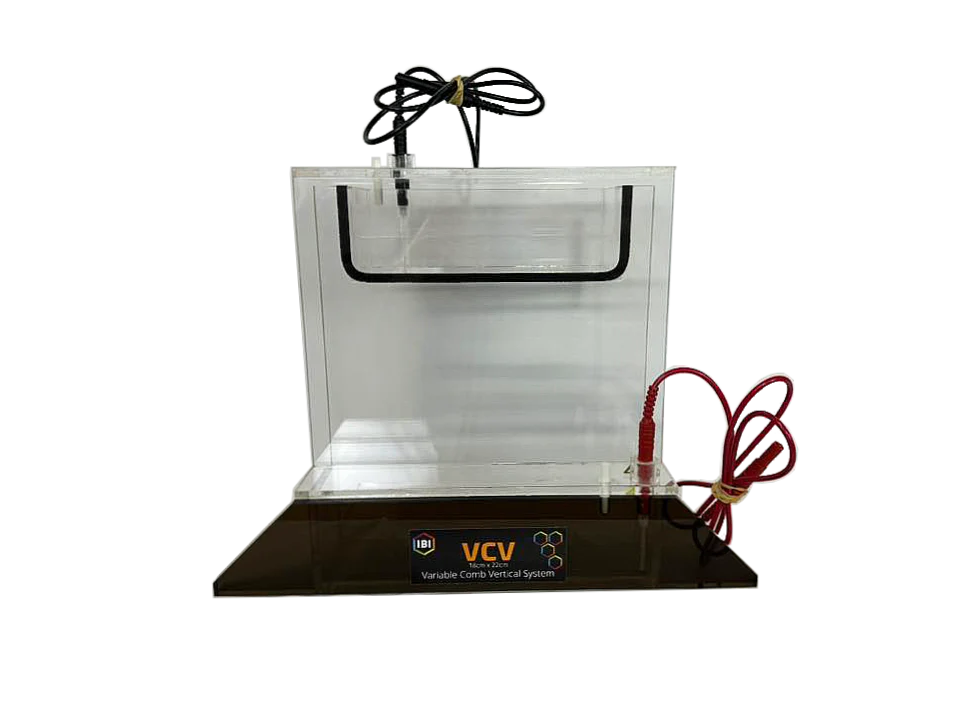

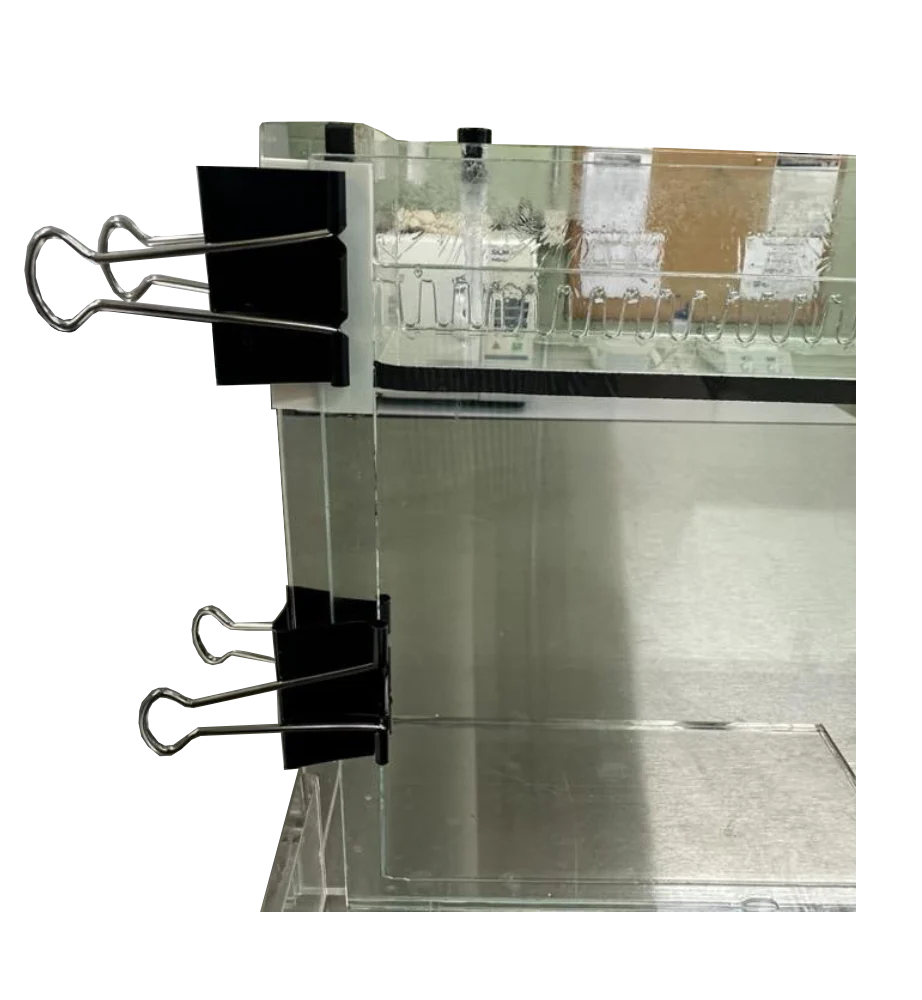

The Variable Comb Vertical (VCV) Electrophoresis System (IB62000) is designed for high resolution and rapid analysis of protein and nucleic acid samples in 22 cm x 18 cm format agarose and polyacrylamide gels. It is ideal for mapping or blotting procedures. The simple design, durable construction, and variety of accessories available with the VCV Electrophoresis System enables the VCV system to be used for many different applications. The IB62000 is constructed of durable cast acrylic for years of faithful operation. Unit dimensions: 29.0 cm (H) x 36.0 cm (W) x 12.5 cm (L).
Features:
- High-resolution analysis for protein/NA in 22x18cm gels
- Supports mapping/blotting with variable comb options
- Durable cast acrylic construction for long-term use
- Simple design with multiple accessories for versatility
- 460 ml buffer capacity per reservoir
- Max 600V for rapid runs
Specifications:
| Specification |
Details |
| Model |
IB62000 VCV Single Slab Vertical |
| Gel Dimensions |
22 cm (W) x 18 cm (L) |
| Max Sample Capacity |
20 samples (1 x 20 tooth comb) |
| Buffer Capacity |
460 ml (Upper/Lower Reservoir) |
| Max Voltage |
600 VDC |
| Unit Dimensions (H x W x L) |
29.0 cm x 36.0 cm x 12.5 cm |
| Material |
Cast Acrylic |
| Warranty |
1-Year Limited |
| Shipping Weight |
10 lbs |
| Carton Dimensions |
15" x 15" x 10" |

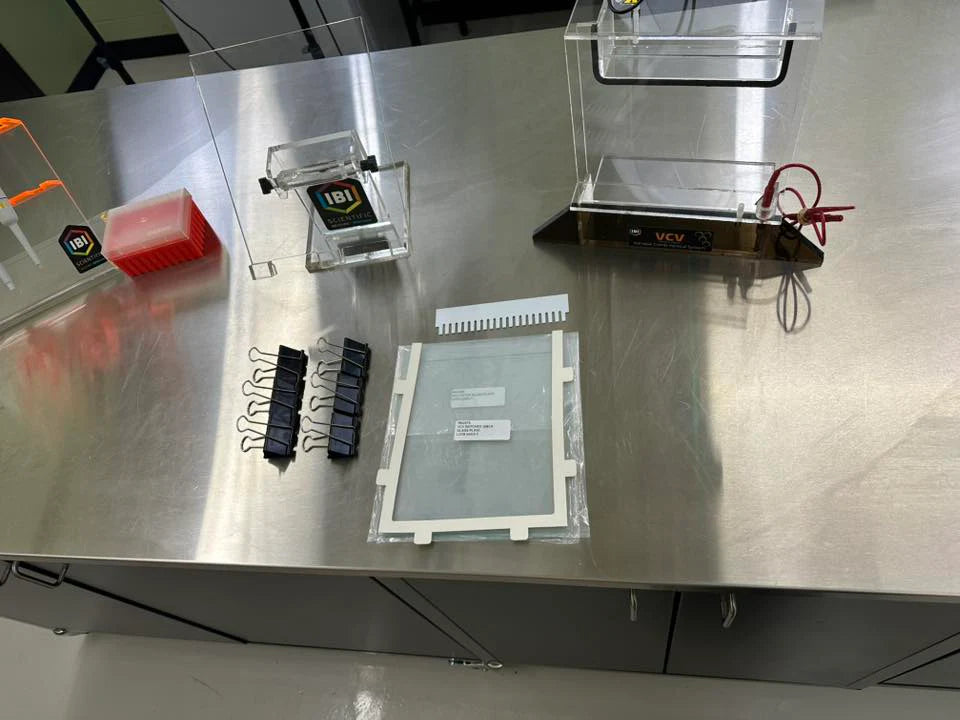

Contents:
| Description |
Quantity |
| VCV Vertical Electrophoresis System |
1 |
| Removable Clear Acrylic Lid w/ Power Cords |
1 |

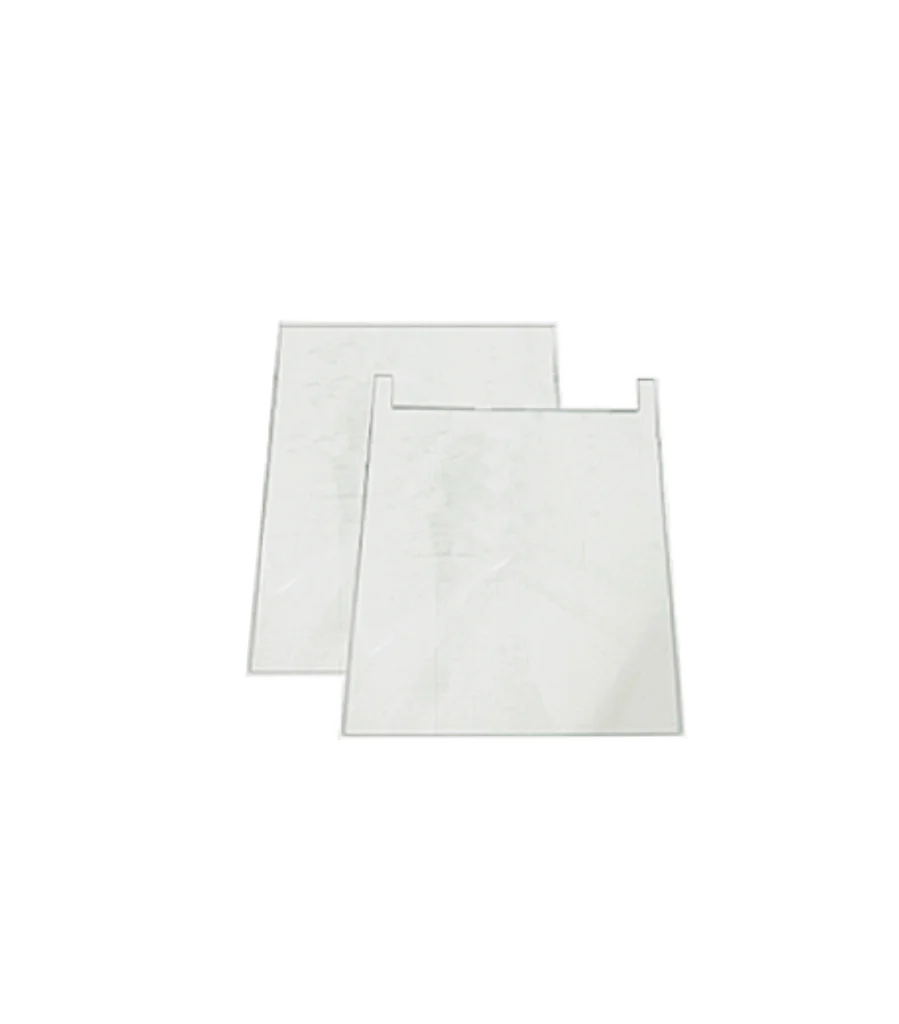

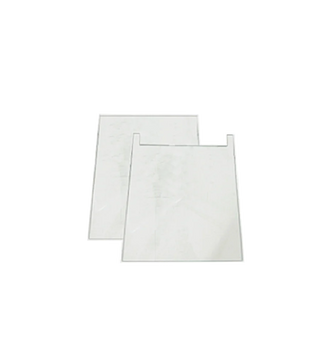

| Inner Notched Glass Plate |
1 |
| Outer Glass Plate |
1 |

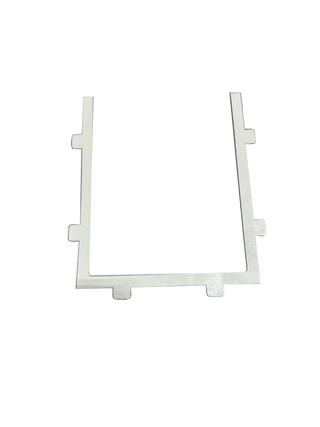

| 1.5 mm One Piece Spacer |
1 |
| 1.5 mm Spacer Dams |
2 |
| Comb |
1 |

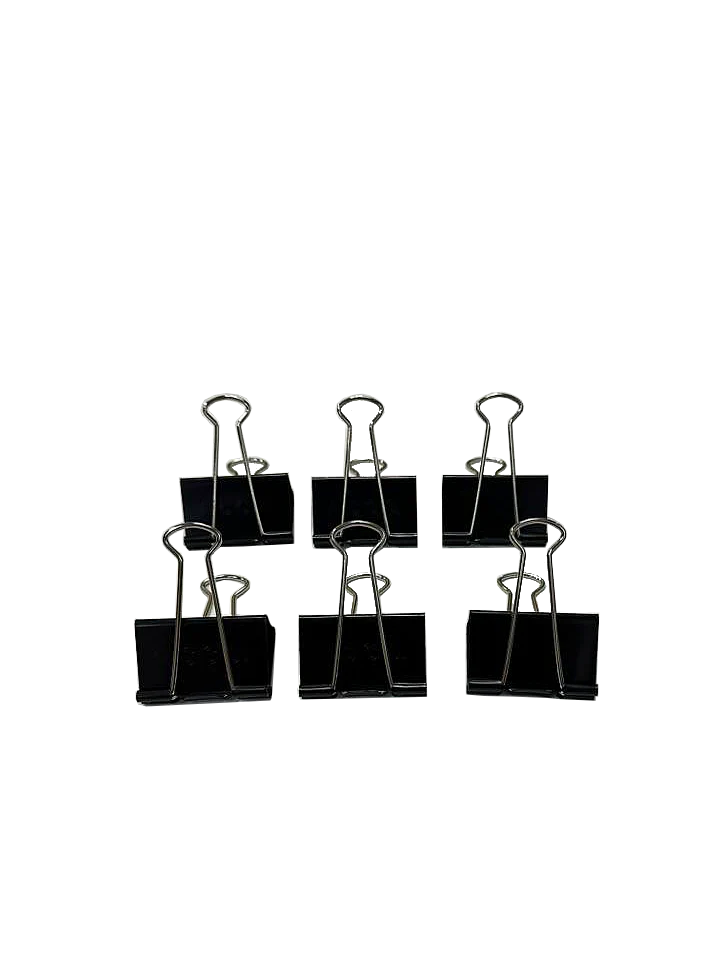

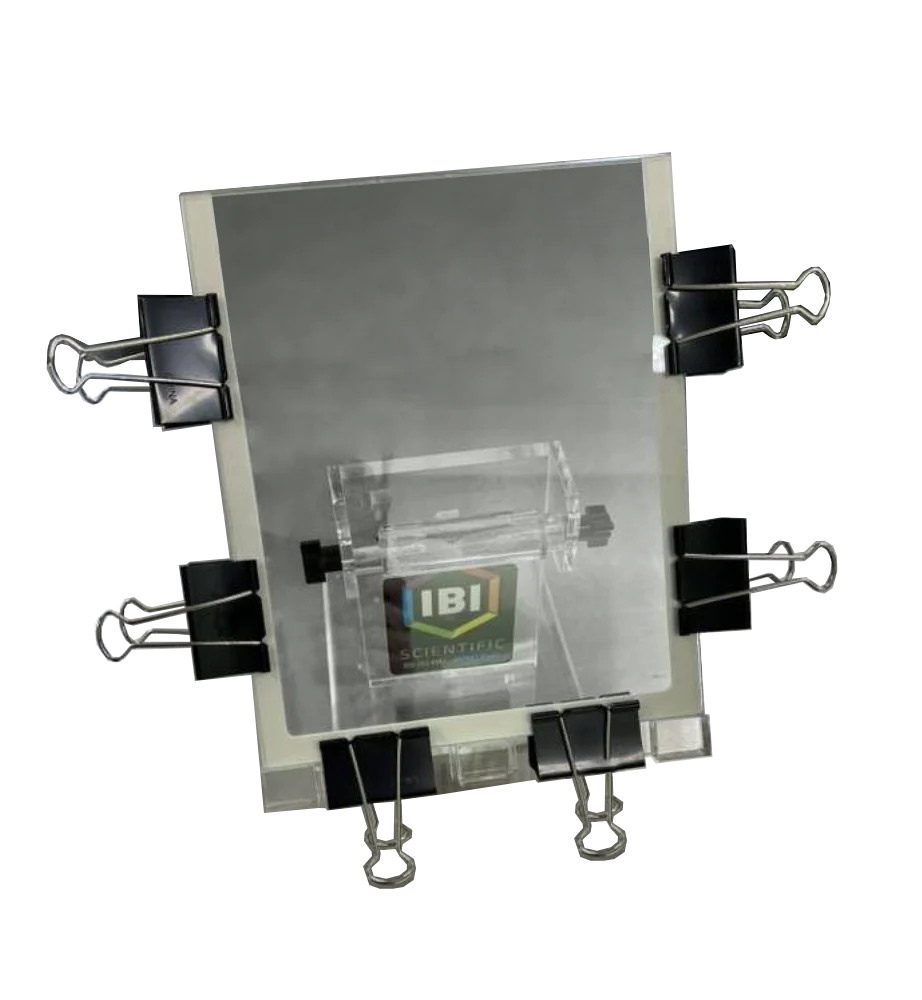

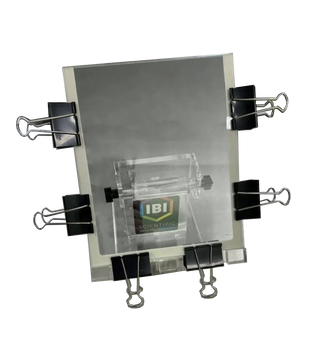

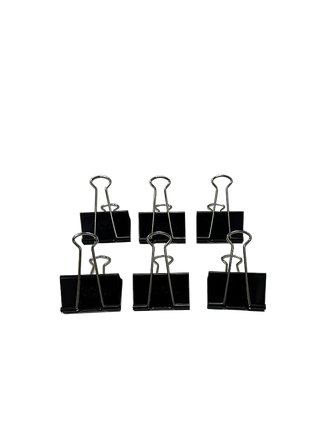

| Gel Sandwich Clips |
6 |
| Operation Manual |
1 |
