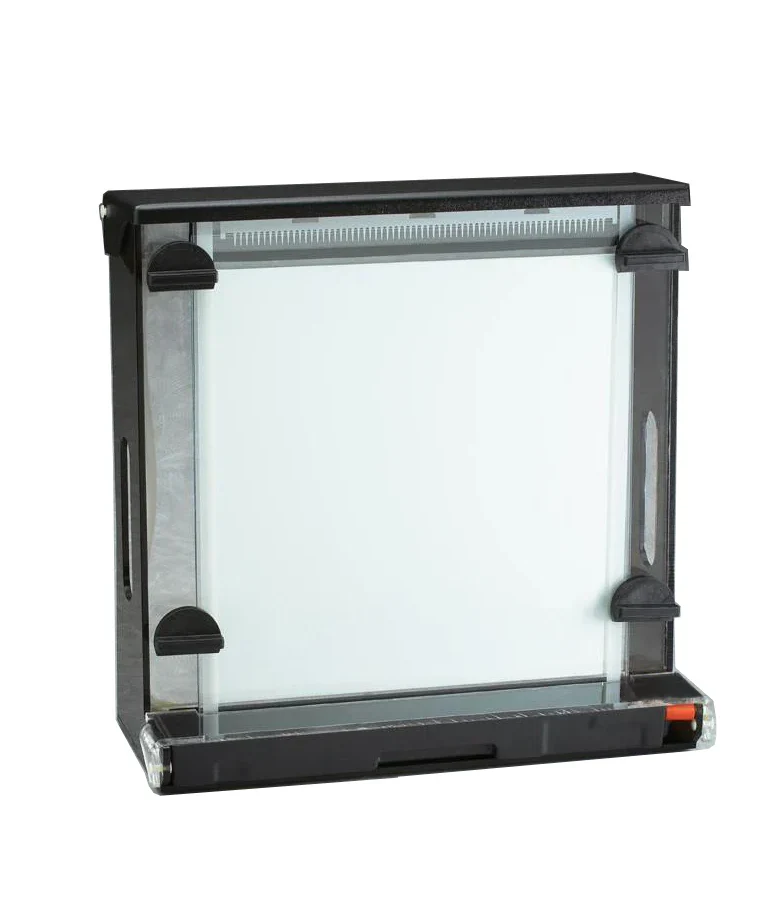

IBI Scientific IB80000 STS-45i Vertical Electrophoresis System for 96 Samples, 530ml Buffer, 3000V Max with Platinum Electrodes for Sequencing
The STS-45i Sequencing System is designed with the user in mind. The patented slant-back feature prevents the glass plates from falling forward during setup. The white enamel thermoplate not only distributes heat evenly to prevent smiling or frowning, but is a perfect background to follow the dye's progression. The patented easy-turn knobs provide even pressure to the glass plates and thermoplate ensuring sharp bands without distortion. Both lower and upper electrodes are made from corrosion-resistant platinum. The formed lower reservoir is removable for easy disposal of radioactive material. The STS-45i upper and lower reservoirs are equipped with interlocking safety covers to help protect the user.
Power to the STS-45i is supplied by an external DC voltage power supply. This power supply must be ground isolated in such a way that the DC voltage output floats with respect to ground. The power should have two no-load and ground fault safety features. The maximum specified operating parameters for this unit are: 3000 VDC maximum voltage limit, 70 W maximum power limit, and 50⁰C maximum ambient temperature limit.
The STS-45i is constructed of durable cast acrylic for years of faithful service.
Features:
- Patented slant-back prevents plate falling during setup
- White enamel thermoplate for even heat distribution/sharp bands
- Easy-turn knobs for uniform pressure without distortion
- Corrosion-resistant platinum electrodes
- Removable lower reservoir for easy radioactive waste disposal
- Interlocking safety covers for user protection
- Supports 96 samples for high-throughput sequencing
Specifications:
| Specification | Details |
|---|---|
| Model | IB80000 STS-45i Vertical Sequencer |
| Gel Dimensions | 36.0 cm (W) x 43.0 cm (L) |
| Max Sample Capacity | 96 samples (1 comb x 96) |
| Buffer Capacity | 530 ml (Upper/Lower Reservoir) |
| Max Voltage | 3000 VDC |
| Power Limit | 70 W |
| Ambient Temp Limit | 50°C |
| Unit Dimensions (H x W x L) | 22 cm x 49 cm x 48 cm |
| Material | Cast Acrylic |
| Warranty | 1-Year Limited |
| Shipping Weight | 15 lbs |
| Carton Dimensions | 20" x 20" x 15" |
Contents:
| Description | Quantity |
|---|---|
| Upper Reservoir Lid | 1 |
| Lower Reservoir Lid | 1 |
| Inner Glass Plate | 1 |
| Outer Glass Plate | 1 |
| Removable Lower Buffer Tank | 1 |
| 0.4 mm x 32 Tooth Combs | 2 |
| 0.4 mm x 64 Tooth Combs | 2 |
| 0.4 mm x 64 Sharkstooth Combs | 2 |
| 0.4 mm Spacer Set | 1 |
| Spacer Tabs | 4 |
| Power Cords | 1 |
