Invacare 1566293 Alber e-fix E35 Electric Wheelchair Conversion Kit – 24" Wheel Size, 6 Ah Battery, Up to 3.75 mph & 10-mile Range, Tool-Free Installation for Manual Wheelchair Power Assist

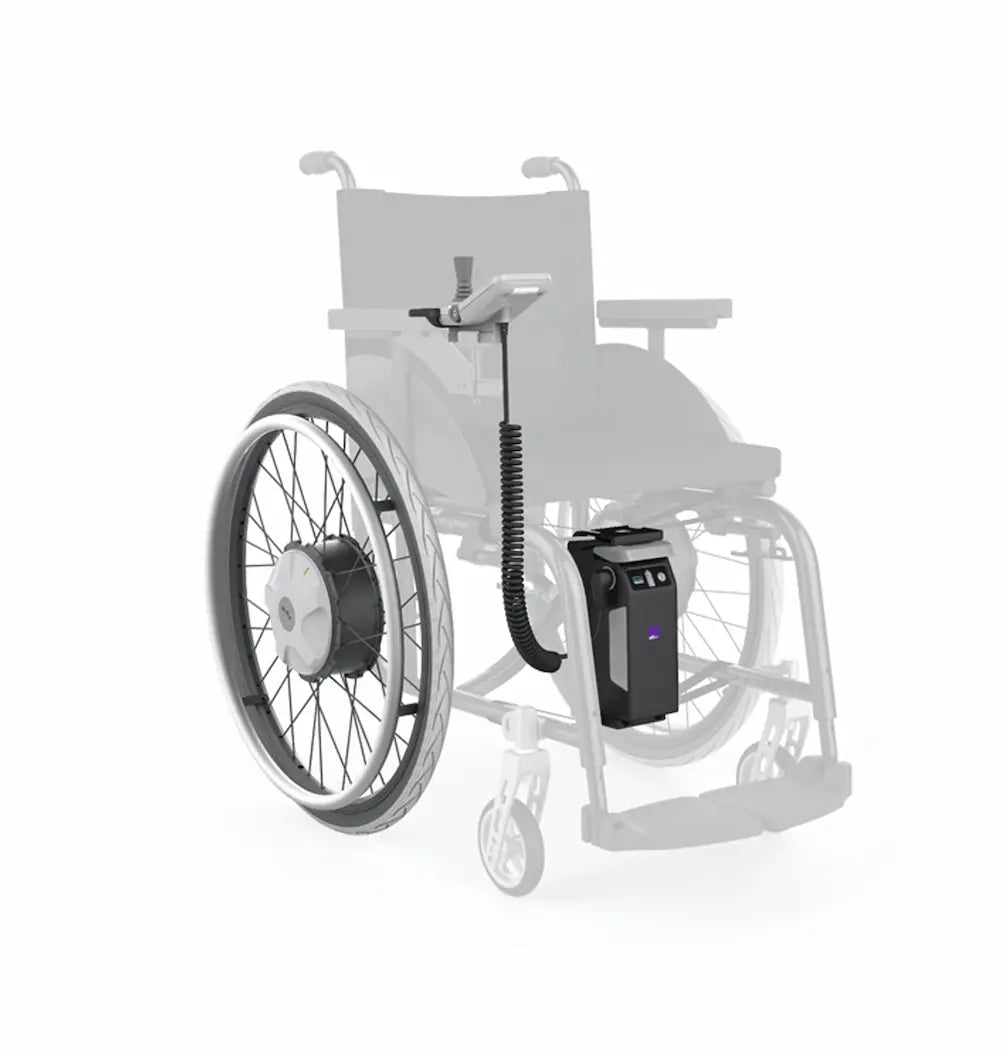

The Alber e-fix E35 (SKU: 1566293) is a compact, portable electric add-on drive system that transforms almost any manual wheelchair into a powerful, easy-to-use electric wheelchair. With individual programming options, the e-fix adapts perfectly to personal needs, significantly increasing range of movement, helping users cover longer distances, climb slopes effortlessly, and reduce physical strain.
The 24" wheel version with 6 Ah battery offers a balanced combination of range, power, and compact design. The system is quick to attach/remove without tools, making it ideal for transport, travel, and daily use in home care, rehabilitation, and community mobility.
Features:
- Portable power – lightweight components can be taken anywhere; quick-release mechanism allows easy wheel removal for transport
- Tool-free installation – components attach/detach without tools for fast setup and removal
- Programmable control – individually adjustable to user needs (speed, acceleration, braking, joystick sensitivity)
- Joystick options – user-operated or attendant-controlled joystick for flexible operation
- Speeds up to 3.75 mph – smooth, controlled movement
- Range up to 10 miles – sufficient for most daily activities (depending on terrain, user weight, and conditions)
- Max user weight 264 lbs – suitable for standard adult and many heavier users
- 24" wheel size – optimized for stability and performance on varied surfaces
Specifications:
| Specification | Details |
|---|---|
| Model / SKU | 1566293 |
| Wheel Size | 24" |
| Battery | 6 Ah lithium-ion |
| Max Speed | 3.75 mph (6 km/h) |
| Range (up to) | 10 miles (16 km) – varies by conditions |
| Max User Weight | 264 lbs (120 kg) |
| Installation | Tool-free quick-release mechanism |
| Control | Programmable joystick (user or attendant) |
| Drive Type | Electric add-on (rear-wheel drive) |
| Compatibility | Most manual wheelchairs (check axle & frame) |
| Intended Use | Daily mobility, power assist, long distances, slopes |
| Country of Origin | Alber (Germany – WHILL/Alber brand) |
| Brand | Alber / e-fix |
| Shipping Weight (Approx.) | 25–35 lbs (kit only – standard shipping) |
Variants:
| Variant Name | Description | SKU | Notes / Shipping Weight (Approx.) | ||
|---|---|---|---|---|---|
| Standard E35 24" Wheel, 6 Ah Battery | Tool-free add-on drive, programmable, flip-back arms compatible | 1566293 | 25–35 lbs (kit only) |
Contents:
| Description | Quantity |
|---|---|
| Alber e-fix E35 Power Drive Unit (24" wheel) | 1 |
| 6 Ah Lithium-Ion Battery | Included |
| Programmable Joystick Controller | Included |
| Tool-Free Quick-Release Mounting Hardware | Included |
| User Manual & Programming Guide | 1 |
General Information:
- Condition: New – Made to order or in-stock availability varies (contact for current status). Drop ships directly from vendor (Alber / Invacare distribution). Not cancellable, not returnable once processed.
- Shipping: Medium-weight kit – standard shipping available. Calculated at checkout.
- Installation Tips: Tool-free quick-release system; fits most manual wheelchairs (verify axle diameter and frame compatibility). Programming and initial setup recommended by dealer/technician.
- Cleaning: Wipe joystick, battery housing, and wheels with mild soap or disinfectant; avoid submerging electrical components.
- Permissible Ambient: Indoor/outdoor use; battery should be charged/stored in moderate temperatures.
- Applications: Daily power-assisted mobility, long distances, slopes, reduced physical effort for users with limited upper body strength or endurance in home care, nursing homes, rehab centers, hospitals, and community settings. Volume discounts available – call or email for orders of 10+ units.
