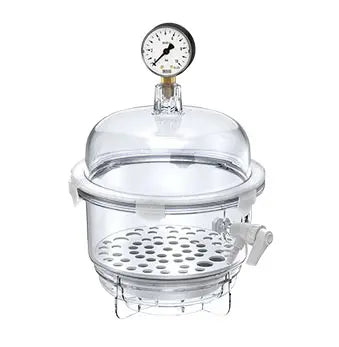

Jeio Tech VDR-30UG Vacuum Desiccator with Gauge and UV block effect, 9.5lbs/ Dia. 16.8 x 18.7, 20L (0.7cu ft)
Features
Performance / Convenience
- Maximum vacuum of 1 Torr (1.33×10-4 Mpa) for more than 72 hours
- High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment.
- Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.
- Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange. The barbed fitting on each side secures attachment of tubing.
- Flange lock holding the top and the bottom together during non-vacuum conditions.
- Various models available with respect to sizes and UVblocking effect.
- Minimizing damages or discoloration of light-sensitive samples (for U/UG models).
- A vacuum gauge attachable at the center of the lid for easy vacuum level checking (for G/UG models).
- The top and bottom of round vacuum desiccators and cylindrical vacuum desiccators are compatible with each other for diverse use.
- ※ RoHS except for VDR-U models.
Specifications
| Model 1) |
VDR-20/20G VDR-20U/20UG |
VDR-25/25G VDR-25U/25UG |
VDR-30/30G VDR-30U/30UG |
|
|---|---|---|---|---|
|
Internal volume (L / cu ft) |
6 / 0.2 |
10 / 0.4 |
20 / 0.7 |
|
|
Gauge range (Mpa) |
0 to -0.1 |
|||
|
Nozzle (mm / inch, Ø) |
9.5 / 0.37 |
|||
|
Max. permissible vacuum (Bodies) |
1.33x10-4 Mpa |
|||
|
Material |
Lid / Bottom |
Polycarbonate |
||
|
Perforated sample tray |
Polypropylene |
|||
|
Drying agent tray |
||||
|
Locker |
Polypropylene |
|||
|
Vacuum seal |
Silicone rubber |
|||
|
Dimension (I.D. × H) |
Overall (Ø x H, mm / inch) |
252x279 (252x354) / 9.9x11 (9.9x13.9) |
316x325 (316x400) / 12.4x12.8 (12.4x15.7) |
403x399 (403X475) / 15.9x15.7 (15.9x18.7) |
|
Internal (Ø x H, mm / inch) |
183x173 / 7.2x6.8 |
242x206 / 9.5x8.1 |
300x266 / 11.8x10.5 |
|
|
Net weight (kg / lbs) |
1.5 / 3.3 |
2.5 / 5.5 |
4.2 / 9.3 |
|
|
Cat. No. |
Clear body |
AAAD2011 | AAAD2111 | AAAD2211 |
|
Clear body with vacuum gauge (G) |
AAAD2021 | AAAD2121 | AAAD2221 | |
|
UV block effect body (U) |
AAAD2031 | AAAD2131 | AAAD2231 | |
|
UV block effect body with Vacuum gauge (UG) |
AAAD2041 | AAAD2141 | AAAD2241 | |
