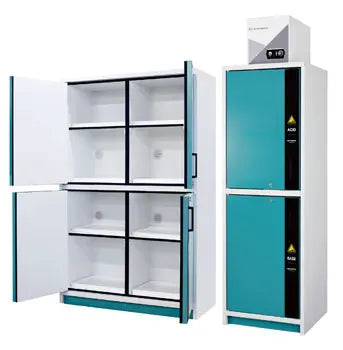

Jeio Tech AAAF60122 SC-C-0812D2 Acid/Corrosive cabinet
Jeio Tech AAAF60122 SC-C-0812D2 Acid/Corrosive cabinet
Features
Convenient and safe ventilation system.
- Built-in ventilation hole.
- Ventilation hole on the top and exhaust holes at the back prevent the accumulation of explosive gas. - Exhaust system connection.
- Cabinet can be connected to an in-house laboratory exhaust system to efficiently exhaust the vapor inside of the cabinet. (except for SC-C0706D1)
Safe storage of corrosive substances.
- Corrosion-resistant interior material.
- Phenol resin coated panel is suitable for long-term storage of acid / base substance. - Robust metal structure.
- Sturdy steel frame prevents deformation.
- Epoxy coated surface provides excellent chemical resistance. - Space-efficient interior design.
- Internal compartment structure is beneficial for practical and safe space use by organizing the inner space efficiently according to the characteristics of the stored samples. (except for SC-C0706D1)

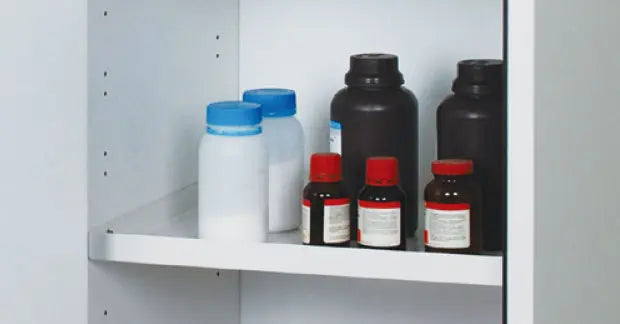

Sturdy and secure shelf structure.
- Sturdy shelf structure.
- Max. 80kg heavy load sustainable shelf.
- Designed to perfectly fastened to both walls. - Safe shelf design.
- Shelf with the height of 30mm blocks spreading leakage from accidental sample spillage. - Optimum shelf selection according to the stored samples.
- The unit comes together with epoxy powder coated steel shelves and polypropylene spill tray for high chemical resistance.(except for SC-C0706D1)

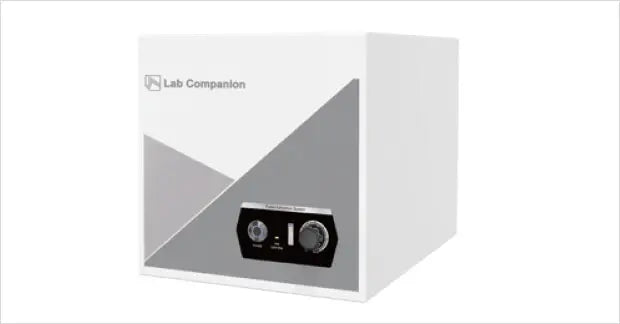

Filter-type harmful gas exhaust(option)
Filters harmful gas inside the cabinet with a carbon filter without connecting a separate duct. (see page 201 for details)

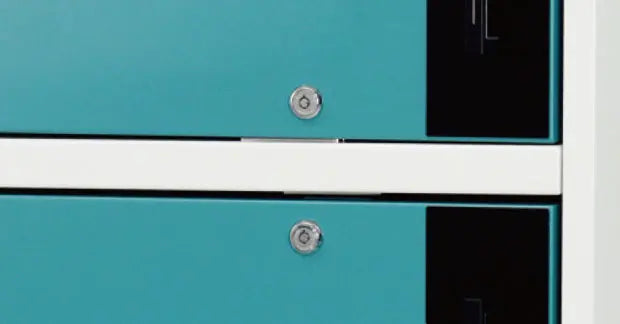

Key lock device
Key lock is provided as standard to block unauthorized access.
Key lock is provided as standard to block unauthorized access.
212 Corrosion-resistant PP TraySpill tray to prevent leakage of stored materials.

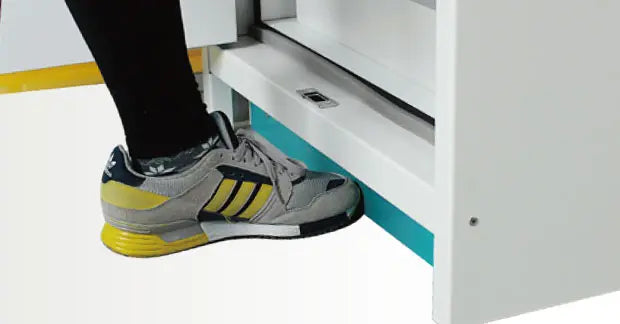

Safe stored materials handling
Ergonomic structure with easy access to shelves for user's safety and convenience.
Ergonomic structure with easy access to shelves for user's safety and convenience.

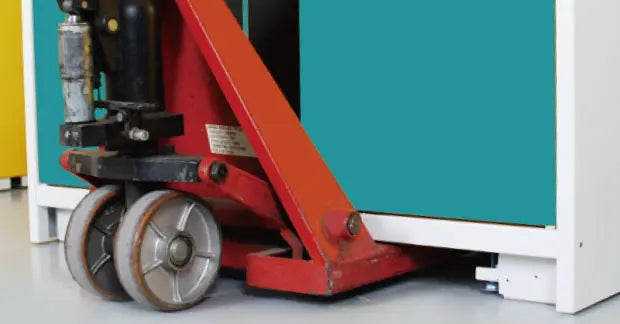

Convenient moving and installation
Forklift space for convenient movement. Leveling feet for stable installation.
Forklift space for convenient movement. Leveling feet for stable installation.

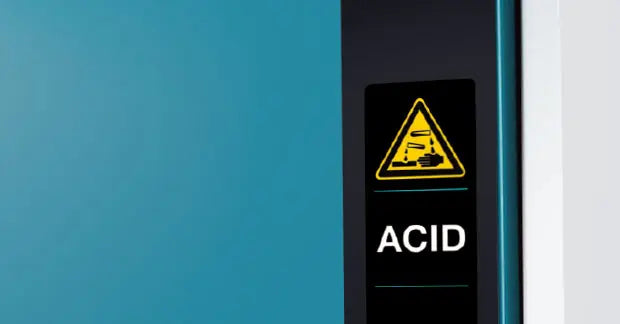

Identification pictogram stickers provided
Easy to classify stored materials with the provision of removable acid/base stickers.
Easy to classify stored materials with the provision of removable acid/base stickers.
Specifications
| Model | SC-C-1912D4 | SC-C-1912D2 | SC-C-1906D2 | SC-C-1906D1 | |
|---|---|---|---|---|---|
| Internal volume (L / cu ft) | 852 (213 x 4ea) / 30.0 (7.5 x 4ea) |
894 (447 x 2ea) / 31.6 (15.8 x 2ea) |
426 (213 x 2ea) / 15.0 (7.5 x 2ea) |
445 / 15.7 | |
| Dimension (W×D×H) |
Interior (mm / inch) |
561x466x818 x 4ea / 22.1x18.3x32.2 x 4ea |
561x466x1712 x 2ea / 22.1x18.3x67.4 x 2ea |
561x466x818 x 2ea / 22.1x18.3x32.2 x 2ea |
558x466x1712 / 21.9xx18.3x67.4 |
|
Exterior (mm / inch) |
1229x555x1900 / 48.4x21.9x74.8 |
1229x555x1900 / 48.4x21.9x74.8 |
655x555x1900/ 25.8x21.9x74.8 | 655x555x1900/ 25.8x21.9x74.8 | |
| Quantity of shelf (standard / max.) |
4 / 8 | 6 / 12 | 2 / 4 | 3 / 6 | |
| Quantity of tray (standard / max.) |
8 / 12 | 8 / 14 | 4 / 6 | 4 / 7 | |
| Distance of between shelves (mm / inch) |
120 / 4.7 | 100 / 3.9 | 130 / 5.1 | 100 / 3.9 | |
| Max. load per shelf (kg / lbs) | 50 / 110.2 | ||||
|
Net weight (kg / lbs) |
284 / 626.1 | 257 / 566.6 | 160 / 352.7 | 146 / 321.9 | |
| Model | SC-C-0812D2 | SC-C-0809D2 | SC-C-0806D1 | SC-C-0706D1 | ||
|---|---|---|---|---|---|---|
| Internal volume (L / cu ft) | 312 (156 x 2ea) / 11.0 (5.5 x 2ea) |
226 (113 x 2ea) / 8.0 (4.0 x 2ea) |
146 / 5.2 | 115 / 4.1 | ||
| Dimension (W×D×H) |
Interior (mm / inch) |
543 x 456 x 634 * 2ea / 21.4 x 18.0 x 25.0 * 2ea |
393 x 456 x 634 * 2ea / 15.5 x 18.0 x 25.0 |
505 x 456 x 634 / 19.9 x 18.0 x 25.0 |
505x421x542 / 19.9x16.6x21.3 |
|
|
Exterior (mm / inch) |
1200 x 548 x 820 / 47.2 x 21.6 x 32.3 |
900 x 548 x 820 / 35.4 x 21.6 x 32.3 |
600 x 548 x 820 / 23.6 x 21.6 x 32.3 |
600x510x650 / 23.6x20.1x25.6 |
||
| Quantity of tray (standard / max.) |
2 | 2 | 1 | 1 | ||
| Max. load per tray (kg / lbs) | 50 / 110.2 | |||||
|
Net weight (kg / lbs) |
110 / 242.5 | 92 / 202.8 | 65 / 143.3 | 52 / 114.6 | ||
