Jeio Tech EP-18 Electrophoresis
Features
Performance & Convenience
- The electrophoresis system is a molded transparent polycarbonate product with superior shock-resistance, transparent, and durability to acrylic adhesives.
- Detachable electrode assembly allows for easy cleaning and maintenance.
- Each unit comes with one banana cable. Black & red cables are coupled together and can be inserted or extracted at the same time.
- Diverse-sized molded gel trays and casters for leak-free casting

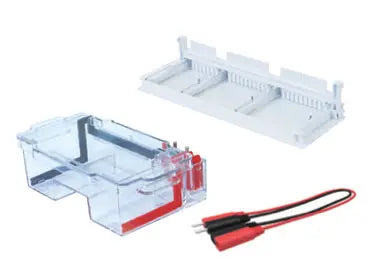

- - EP-5 : 82x81mm (1ea) and 82x58mm (2ea) gel trays with one comb position.

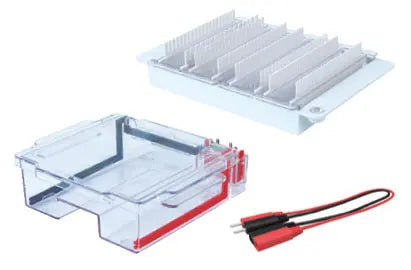

- EP-10 : 181x103mm (2ea) gel trays with max. four comb positions.

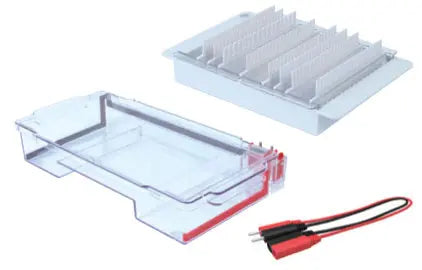

- EP-18 : 181x206mm (1ea) gel tray with max. six comb positions. - Double-sided combs are provided depending on each model.
- EP-5 : 1mm thick 27-and 40-well comb (1ea)
- EP-10, 18 : 1.5mm thick 20-and 31-well comb (2ea),
1mm thick 20-and 31-well comb (2ea),
1.5mm thick 16-and 20-well comb (2ea),
1mm thick 16-and 20-well comb (2ea),
1.5mm thick 25-and 34-well comb (2ea),
1mm thick 25-and 34-well comb (2ea) - 31-well comb and 16-well comb for matching multichannel pipettes. Suitable for large amounts of sample screening- up to 186 samples at once using 6 combs in EP-18 gel tray.
- Comb-setting grooves in gel trays or caster prevents sliding of combs.
- Adjustable gel length.
- Flat, uniformly thick gels are formed by built in level maker on the gel tray and level bubble on the gel castor.
Specifications
| Model | EP-05 | EP-10 | EP-18 |
|---|---|---|---|
|
Electrophoresis Unit (Tank & Lid, Electrode, Power Cord) |
1 set | 1 set | 1 set |
| Gel Caster | 1 ea | 1 ea | 1 ea |
| Gel Tray | 3 ea | 2 ea | 1 ea |
| Comb | 27/40 well (1.0 mm) x 1ea | 20/31 well (1.0 mm) x 2ea 20/31 well (1.5 mm) x 2ea 16/20 well (1.0 mm) x 2ea 16/20 well (1.5 mm) x 2ea 25/34 well (1.0 mm) x 2ea 25/34 well (1.5 mm) x 2ea |
20/31 well (1.0 mm) x 2ea |
Specification
| Model | EP-05 | EP-10 | EP-18 | |
|---|---|---|---|---|
|
Buffer capacity (L / cu ft) |
0.5 / 0.02 |
1.0 / 0.04 |
1.8 / 0.07 |
|
|
Material |
Tank, Lid, Gel tray, Gel caster |
PC (polycarbonate) |
||
|
Comb |
ABS (acrylonitrile-butadienestyrene) |
|||
|
Electrode |
Platinum wire |
|||
|
Dimension |
Electrophoresis tank(mm / inch) |
219x134x70 / 8.6x5.3x2.8 |
219x214x70 / 8.6x8.4x2.8 |
387x214x70 / 15.2x8.4x2.8 |
|
Gel caster (W×D×H) (mm / inch) |
254x87x17 / 10x3.4x0.7 |
167x264x30 / 6.6x10.4x1.2 |
167x264x30 / 6.6x10.4x1.2 |
|
|
Gel tray (W×D×H) (mm / inch) |
82x81x17 / 3.2x3.2x0.7 |
180x102x29 / 7.1x4.0x1.1 |
180x205x29 / 7.1x8.1x1.1 |
|
|
82x57x17 / 3.2x2.2x0.7 |
||||
|
Comb (W×D) (mm / inch) |
225x45 / 8.9x1.8 |
158x46 / 6.2x1.8 |
158x46 / 6.2x1.8 |
|
|
Net weight (Kg / lbs) 1) |
0.39 / 0.86 |
0.60 / 1.32 |
0.93 / 2.05 |
|
| Cat. No. | AAAJ6011 | AAAJ6021 | AAAJ6031 | |
