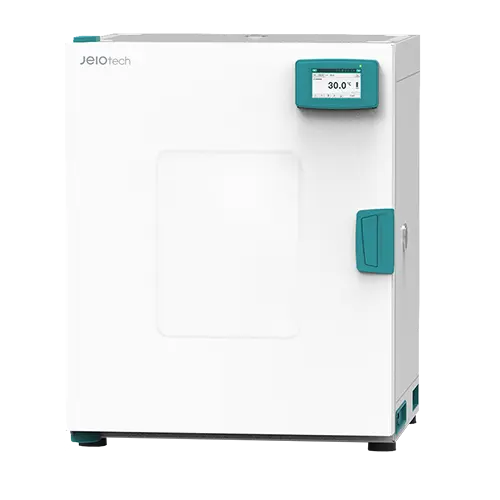

Jeio Tech AAH12986U OF4-15PW Programmable Forced Convection Oven (Window, 147L, 120V, 60Hz), US Plug

Features

Easy setting program temperature for everyone

  • User interface that provides a quick view of temperature changes
    (heating, stable, and cooling) and fan speed also.
  • Set various test condition using 10 programs and 10 steps, which can be repeated up to 99 times.
  • Start temperature, temperature and time for each step, and Opti-flowTM all adjustable as desired.

Structural and functional features for improved user convenience

  • Opti-flow™, a function to flexibly adjust the fan speed
    according to the specimen type and test conditions.
  • Stacking Kit (optional) ensuring the safe fitting of one unit
    to another, thus doubling the amount of work done in a given area for improved space efficiency.
  • Hands-free™ door system to allow users to easily open
    the door while carrying samples with both hands.

Real-time monitoring to check status of device

  • BMS communication port that helps monitor the device temperature on the building management system, enabling quick response in case of abnormality. (option)
  • Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (option)

Convenient checking for the test progress and data

  • RS-232/USB port and compatible software provided to enable easy device control and data management using PC.
  • Test data is automatically saved and easily downloaded via USB;
    easy to edit and use. (in CSV format)
  • 36 latest events, such as errors and door opened or closed, automatically recorded, helping user obtain feedback on experimental results.
  • Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)

Reliable temperature control performance based on stable control mechanisms

  • Wide temperature range of up to 250℃.
  • Three-point temperature calibration that ensures high temperature accuracy over a wide temperature range.
  • Ramping rates (℃/min) flexibly adjustable for each test performed.
  • Excellent temperature distribution through the formation of optimal airflow for uniform heat transfer.
    (±1.9℃ or below at 100℃)

Specifications

Model Solid door (without window) OF4-03P OF4-05P OF4-10P OF4-15P
Window door OF4-03PW OF4-05PW OF4-10PW OF4-15PW
Chamber volume (L/cu ft) 26/0.92 61/2.15 112/3.96 147/5.19
Temperature 1) Range (℃/℉) Amb. + 10~250 / Amb. + 18 ~ 482
Fluctuation at 100℃ (±℃/±℉) 0.3/0.54 0.3/0.54 0.3/0.54 0.3/0.54
Variation at 100℃ (±℃/±℉) 1.4/2.52 1.9/3.42 1.7/3.06 1.5/2.70
Heating time to 100℃ (min) 8 10 14 15
Recovery time at 100℃ (min) 4 4 4 4
Control Panel 5inch TFT Color LCD
Communication interface USB, RS-232, BMS
Function Program setting 10 program, 10 step, start temp.
Scehdular Set day, time, and program No
Recently event record 36ea
Fan speed adjustable Three-step wind speed settings
Recommended temperature Three frequently used temperature settings suggested
Graph Available checking the stored and real-time data as graphs
Data storage Save the test data in CSV format
Temp. ramping rate (℃/min. / ℉/min.) 0~13/0~23.4 0~9/0~16.2 0~6/0~10.8 0~5/0~9
Dimensions Interior (W x D x H, mm/inch) 300 x 210 x 400 /
11.80 x 8.27 x 15.75
380 x 330 x 480 /
14.97 x 13.0 0x 18.90
485 x 350 x 655 /
19.09 x 13.78 x 25.79
550 x 376 x 710 /
21.65 x 14.80 x 27.95
Exterior (W x D x H, mm/inch) 478 x 527 x 604 /
18.82 X 20.75 X 23.78
558 x 648 x 684 /
21.97 X 25.51 X 26.93
663 x 677 x 859 /
26.1 X 26.65 X 33.82
728 x 704 x 914 /
28.66 X 27.72 X 35.98
Net weight (kg/lbs) 33/72.8 53/116.8 63/138.9 73/160.9
Shelves Quantity of shelves (Standard/max.) 2/4 2/5 2/8 2/9
Max. Load per shelf (kg/lbs) 30/66.1
Number of Air change per hour at 100 ℃ 2) 123 22 18 11
Electrical requirements (230V, 50/60Hz, A) 6.4
Cat. No. Solid door (without window) AAH12915K AAH12925K AAH12935K AAH12945K
Window door AAH12955K AAH12965K AAH12975K AAH12985K
Electrical requirements (120V, 60Hz, A) 12.3
Cat. No. Solid door (without window) AAH12916U AAH12926U AAH12936U AAH12946U
Window door AAH12956U AAH12966U AAH12976U AAH12986U
