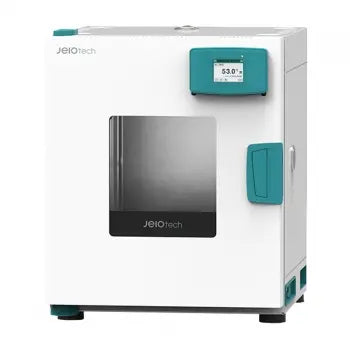

Jeio Tech AAH15186U ON4-15SW Standard Natural Convection Oven (Window, 147L)
Features
Intuitive Touch Controller
- Intuitive interface with 3.5-inch display.
- 'Wait on / Wait off' timer function.
Reliable Temperature Control Performance
- Wide temperature range of up to 250℃.
- Temperature accuracy for wide range by 3-point calibration.
- The upper and lower temperature limits can be set, enabling alerts for deviations to trigger quick actions.
- Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±3.6 ℃ at 100℃)
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC. (option)
- Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)
Ensuring User Safety
- ON4-03 fits in a fume hood for easy gas exhaust during operation.
- Safe surface even when operating at max temperatures. (less than 70℃ at 250℃)
- Implemented with the top-rated overheating prevention system. (Patent 10-0397583)
- Over Temperature Limiter.
- Complaint to IEC Class II protection standards and temperature protection in line with DIN 12880 Class 3.1.
Convenient Structural Functions
- Logs the last 12 events, including run times, stops, and errors.
- Double stackable with stacking set (option) maximizes space utilization.
- Hands-free™ door allows both hands free while holding samples.
Specifications
| Model | Solid Door (without window) | ON4-03S | ON4-05S | ON4-10S | ON4-15S |
|---|---|---|---|---|---|
| Window door | ON4-03SW | ON4-05SW | ON4-10SW | ON4-15SW | |
| Chamber volume (L / cu ft) | 26 / 0.92 | 58 / 2.05 | 110 / 3.88 | 147 / 5.19 | |
| Temperature | Range (℃ / ℉) | Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
| Fluctuation at 100℃ (±℃ / ℉) | 0.4 / 0.72 | 0.5 / 0.90 | 0.5 / 0.90 | 0.5 / 0.90 | |
| Variation at 100℃ (±℃ / ℉) | 2.8 / 5.04 | 2.6 / 4.68 | 3.6 / 6.48 | 3.5 / 6.30 | |
| Heating time to 100℃ (min.) 1) | 25 | 39 | 22 | 21 | |
| Recovery time at 100℃ (min.) | 17 | 19 | 10 | 9 | |
| Control panel | 3.5 inch TFT Color LCD | ||||
| Communication interface | USB-B, RS-232 (option) | ||||
| Function | Recently event record | 12 ea | |||
| Dimension (W×D×H) |
Interior (W x D x H, mm / inch) | 273 x 270 x 350 / 10.75 x 10.63 x 13.78 |
340 x 390 x 422 / 13.4 x 15.35 x 16.61 |
441 x 420 x 597 / 17.36 x 16.54 x 23.5 |
500 x 446 x 659 / 19.69 x 17.56 x 25.95 |
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
558 x 648 x 684 / 21.97 x 25.5 x 26.93 |
663 x 677 x 859 / 26.1 x 26.65 x 33.82 |
728 x 704 x 914 / 28.66 x 27.7 x 36.0 |
|
| Net weight (Kg / lbs) | 33 / 72.8 | 53 / 116.8 | 63 / 138.9 | 73 / 160.9 | |
| Shelves | Quantity of shelves (standard/max.) | 2 / 4 | 2 / 5 | 2 / 8 | 2 / 9 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | |
| Number of air change per hour at 100℃ | 16 | ||||
| Electrical requirements (230V, 50 / 60Hz, A) | 3.2 |
3.5 |
5.7 | 7.4 | |
| Cat. No. |

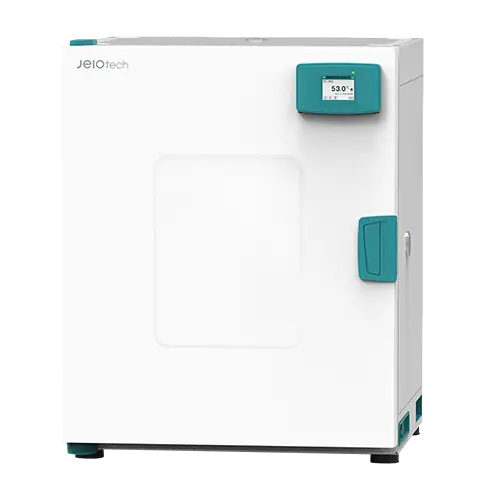

Solid Door (without window) | AAH15045K | AAH15065K | AAH15075K | AAH15085K |
| Window door | AAH15145K | AAH15165K | AAH15175K | AAH15185K | |
| Electrical requirements (120V, 60Hz, A) | 6 |
6.7 |
10.9 | 14.2 | |
| Cat. No. |
Solid Door (without window) | AAH15046U | AAH15066U | AAH15076U | AAH15086U |
| Window door | AAH15146U | AAH15166U | AAH15176U | AAH15186U | |
