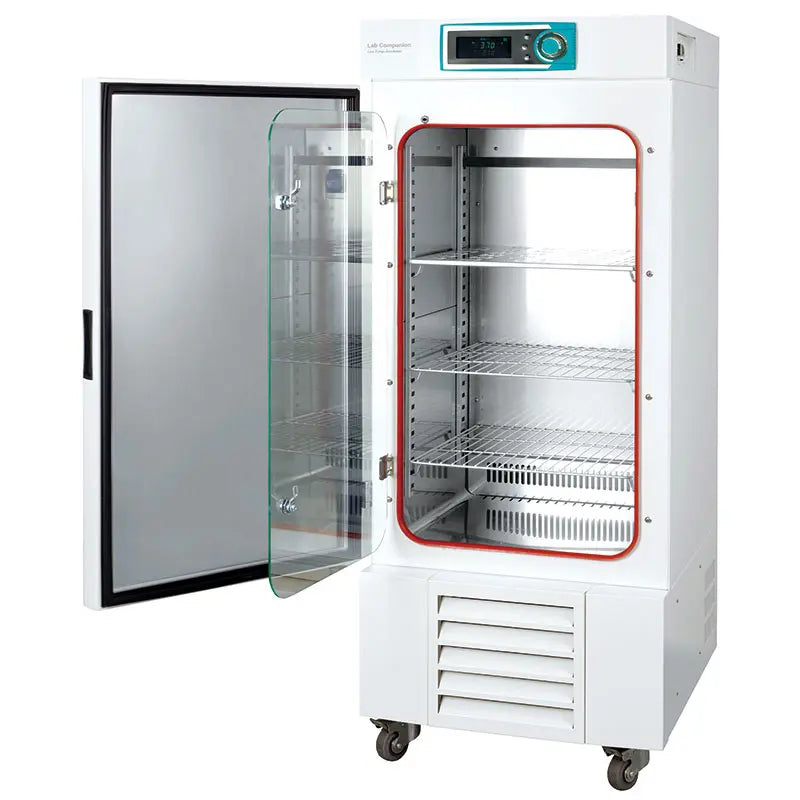

Jeio Tech IL3-25A Low Temperature Incubator including RS-232 interface and software
Features
Performance
- Temperature range from 4°C to 70°C.
- Microprocessor PID control.
- Three point temperature calibration / Automatic tuning.
- Natural convection within the chamber induced by the heater and the fan located inside the air jacket.
Convenience
- Large chamber volume: maximum 254L.
- Bright VFD display (0.1℃resolution)
- Dual delayed on/off timer modes. (1 min. to 99 hr. 59 min.)with heating level indication and quick adjustable dial knob.
- Convenient preset function for 3 most commonly used temperature settings.
- Built-in electrical outlet with a safety cover inside the chamber.
- Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
- Rounded inner chamber corners for easy cleaning and optimal airflow.
- Quick-release front grill for easy cleaning of the condenser.
- Built-in RS-232 port and USB port for external control and data collection.
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
Safety
- Automatic run after power interruption.
- Over-current protection.
- Triple independent temperature monitor system.
- Temperature deviation alarm (High/Low)
- Electronic temperature limiter (High/Low)
- Mechanical over-temperature limiter (High) - Keypad lock function prevents accidental changes during operation.
- Audible and visible open door alarms.
Specifications
| Model | IL3-15A | IL3-25A | |||
|---|---|---|---|---|---|
| Chamber volume (L / cu ft) | 156 / 5.5 | 254 / 8.97 | |||
| Refrigerator (Hp) | 1 / 6 HBP | 1 / 6 HBP | |||
| Temperature | Range (℃ / ℉) | 4 to 70 / +39.2 to 158 | |||
| Fluctuation 1) at 37℃ (±℃ / ℉) | 0.2 / 0.36 | ||||
| Variation 1) at 37℃ (±℃ / ℉) | 0.7 / 1.26 | ||||
| Dimension(W×D×H) | Interior (mm / inch) | 600×520×500/ 24×20.5×20 | 500×540×940/ 20×21.3×37 | ||
| Exterior (mm / inch) | 770×790×1115/ 30×31.1×43.9 | 670×805×1668/ 26.4×31.7×65.7 | |||
| No. of wire shelf (standard / max.) | 2 / 11 | 3 / 25 | |||
| Net weight (Kg / lbs) | 108 / 238.1 | 145 / 319.7 | |||
| Electrical requirements (230V) | 60Hz, 6.6A | 50Hz, 6.6A | 60Hz, 8.0A | 50Hz, 8.0A | |
| Cat. No. | AAH220612K | AAH220612K | AAH220712K | AAH220712K | |
| Electrical requirements (120V) | 60Hz, 10.2A | 60Hz, 12.3A | |||
| Cat. No. | AAH220632U | AAH220732U | |||
