Jeio Tech AAH23732K ISS-4075R Incubated Shaker(150L) 230V, 50/60Hz
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?

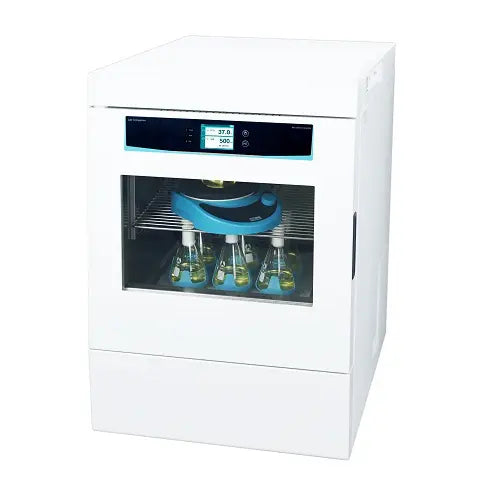

Jeio Tech ISS-4075R Incubated Shaker(150L)
Features
Structural Functional Features
- Best space-efficient model with double stacking.
- Up to 80°C, 500rpm enables setting of various experimental conditions.
- Three operating modes: Temperature & Shaking, Temperature, or Shaking.
- Includes internal power outlet.
- Shaking structure with minimized vibration.
Design for Sustainability
- Eco-friendly design with R-600a refrigerant to minimize greenhouse gas emissions (R models)
Use Convenience Features
- Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
- Countdown timer (999 hours 59 minutes) of shaking operation.
- Intuitive operation with color touch display.
- High brightness / low-power LED illumination makes it easy to observe inside.
- Spill drain port for internal cleanliness and easy maintenance.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Outstanding Safety
- Electronic over temperature protection system. (advanced over temperature (A-OT) limiter)
Independent precision temperature sensor and controller provides more secure and reliable over temperature protection. - Conventional over-temperature protection system. (B-OT, backup over temperature limiter)
A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors. - Soft start and stop shaking function.
- Malfunction prevented by controller lock function.
- Displays all information such as device operation and error occurrence.
- Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.
Smart Self-diagnosis
Real-time self-diagnostics to check equipment for abnormal conditions.
- Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
- Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
- Automatic restart as it was operated after power recovery.
Specifications
| Model | ISS-3075 | ISS-3075R | ISS-4075 | ISS-4075R | |||||
|---|---|---|---|---|---|---|---|---|---|
| Temperature | Range (℃ / ℉)1) |
Amb. +5 to 80 / Amb. +9 to 176 |
Amb. -20 (Min. 4) to 80 /Amb. -36 (Min. 7.2) to 176 |
Amb. +5 to 80 /Amb. +9 to 176 |
Amb. -20 (Min. 4) to 80 /Amb. -36 (Min. 7.2) to 176 |
||||
|
Fluctuation at 37℃ in flask (±℃ / ℉) |
0.1 / 0.18 | ||||||||
|
Variation at 37℃ in flask (±℃ / ℉) |
0.5 / 0.90 | ||||||||
| Refrigerator (Hp) | - | 1/6Hp | - | 1/6Hp | |||||
| Shaking system | Motion type | Orbital | |||||||
| Amplitude size (mm / inch, dia.) | 19.1 / 0.75 | ||||||||
| Speed range (rpm) | 20 to 500 (stackable : 20 to 250) | ||||||||
| Speed stability2)(rpm, %) | ±1 | ||||||||
| Timer (count-down) | 999 hr 59 min. | ||||||||
| Max. Speed per permissible Load (rpm) |
500 (max.10kg / 22.0 lbs) 400 (max.15kg / 33.1 lbs) 250 (max.15kg / 33.1 lbs) - (stacked) |
500 (max.10kg / 22.0 lbs) 400 (max.21kg / 46.3 lbs) 250 (max.21kg / 46.3 lbs) - (stacked) |
|||||||
| Dimension | Volume (L / cu ft) | 80 / 2.8 | 150 / 5.3 | ||||||
| Platform (W×D, mm / inch) | 350×350 / 13.8x13.8 | 450×450 / 17.7×17.7 | |||||||
| Interior (W×D×H, mm / inch) | 440×440×418 / 17.3×17.3×16.5 | 540×540×518 / 21.3×21.3×20.4 | |||||||
| Exterior (W×D×H, mm / inch) | 578×815×854 / 22.8x32.1x33.6 | 678×895×934 / 26.7x35.2x36.8 | |||||||
| Shelves (Standard / Max) | 2 / 8 | 2 / 11 | |||||||
| Net weight (kg / Ibs) | 153 / 337.3 | 160 / 352.7 | 183 / 403.4 | 190 / 418.9 | |||||
| Electrical requirements (230V, 50/60Hz, A ) | 6.2 | 7.9 | 6.2 | 7.9 | |||||
| Cat. No. |
AAH23432K |
AAH23532K |
AAH23632K |
AAH23732K |
|||||
| Electrical requirements (120V, 60Hz, A) | 9.5 | 13 | 9.5 | 13 | |||||
| Cat. No. | AAH23415U | AAH23515U | AAH23615U | AAH23715U | |||||
