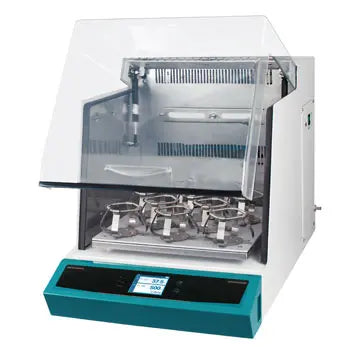

Jeio Tech IST-4075R Incubated Shaker(83L)
Features
Performance
- Temperature range:
- Ambient +5°C to 80°C for IST-3075 / 4075.
- Ambient -15°C (Min. 15) to 80°C for IST-3075R / 4075R. - Competitive high shaking speed up to 500 rpm.
- Orbital shaking motion in 19mm diameter.
- Microprocessor PID control.
- Three point temperature calibration / Automatic tuning.
- Wide speed range even with heavy workload.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion. - Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevents chemical spills from flasks or test tubes. - High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
- Air-tight silicone door seal to provide excellent temperature uniformity
Design for Sustainability
- Eco-friendly design with R-600a refrigerant to minimize greenhouse gas emissions (R models)
Convenience
- Intuitive touch screen LCD controller with easy icons and logical menus.
- Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
- Wide sample monitoring and convenient sample loading.
- Convenient sample monitoring without affecting inside environment thanks to the three side transparent acryl lid with bright LED lamps.
- Gas spring lid supports providing smooth motion, soft opening and closing. - Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process. - Corrosion resistance stainless steel interior.
- Built-in RS-232 port and USB port for external control and data collection.
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Safety
- Automatic run after power interruption.
- Temperature and shaking speed deviation alarm.
- Over-current protection, Stalled platform check.
- Mechanical over-temperature protection device.
- Environment-friendly CFC-free refrigerant. (for IST-3075R / 4075R)
- Audible and visible open door alarms.
Specifications
| Model | IST-3075 | IST-3075R | IST-4075 | IST-4075R | |||||
|---|---|---|---|---|---|---|---|---|---|
|
Temperature |
Range (℃ / ℉) |
Amb. +5 to 80 / Amb. +9 to 176 |
Amb. -15 (Min. 15) to 80 /Amb. -27 (Min. 27) to 176 |
Amb. +5 to 80 / Amb. +9 to 176 |
Amb. -15 (Min. 15) to 80 /Amb. -27 (Min. 27) to 176 |
||||
|
Fluctuationat 37℃ in flask |
0.1 / 0.18 |
||||||||
|
Variationat 37℃ in flask |
0.5 / 0.90 |
||||||||
|
Refrigerator (Hp) |
- |
1 / 6 HBP |
- |
1 / 6 HBP |
|||||
|
Shaking system |
Motion type |
Orbital |
|||||||
|
Amplitude size (mm / inch, dia.) |
19.1 / 0.75 |
||||||||
|
Speed range (RPM) |
20 to 500 |
||||||||
|
Accuracy |
±1% of set speed (>100rpm) / ±1 (≤100rpm) |
||||||||
|
Timer |
1 min. to 999 hr 59 min. |
||||||||
|
Max. load (kg / Ibs) |
10 / 22.0 at 500 rpm15 / 33.1 at 400 rpm |
14 / 30.9 at 500 rpm21 / 46.3 at 400 rpm |
|||||||
|
Dimension |
Volume (L / cu ft) |
53 / 1.9 |
83 / 2.9 |
||||||
|
Platform (W×D) (mm / inch) |
350×350 / 13.8×13.8 |
450×450 / 17.7×17.7 |
|||||||
|
Interior (W×D×H) (mm / inch) |
410×410×320 / 16.1×16.1×12.6 |
510×510×320 / 20.1×20.1×12.6 |
|||||||
|
Exterior (W×D×H) (mm / inch) |
440x785x510 / 17.3x30.9x20.1 |
540x 890 x510 / 21.3x35x20.1 |
|||||||
|
Net weight (Kg / lbs) |
65 / 143.3 |
73 / 160.9 |
81 / 178.6 |
90 / 198.4 |
|||||
| Electrical requirements (230V) | 60Hz, 4A | 50Hz, 4A | 60Hz, 5.5A | 50Hz, 5.5A | 60Hz, 4A | 50Hz, 4A | 60Hz, 5.5A | 50Hz, 5.5A | |
| Cat. No. |
AAH 23422K |
AAH 23422K |
AAH |
AAH 23526K |
AAH 23622K |
AAH 23622K |
AAH 23726K |
AAH |
|
| Electrical requirements (120V) | 60Hz, 7.5A | 60Hz, 10.1A | 60Hz, 7.5A | 60Hz, 10.1A | |||||
| Cat. No. | AAH23465U | AAH23565U | AAH23665U | AAH23765U | |||||
