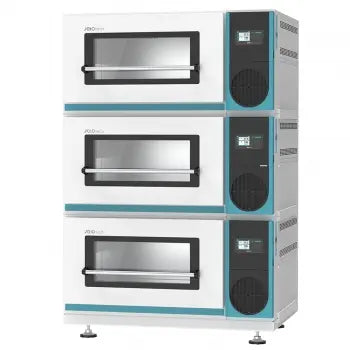

Jeio Tech AAH239232K ISS-7200R Incubated Shaker
Features
Structural Functional Features
- Large-capacity triple stackable incubated shaker.
- Up to 80°C, 400rpm enables experimental conditions for various applications.
- Three operating modes: Temperature & Shaking, Temperature, or Shaking.
- Shaking structure with minimized vibration.
- Convenient to change samples with glide-up door.
- Stable shaking of high-load samples. (registration KR 10-1678160)
- Applied a direct drive motor that has outstanding durability, a 5-year warranty for the motor.
Design for Sustainability
- Eco-friendly design with R-600a refrigerant to minimize greenhouse gas emissions (R models)
Use Convenience Features
- Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
- Monitor via mobile app anytime, anywhere with LC Connected.
(mobile monitoring system) (when purchased LC GreenBox) - Countdown timer (999 hours 59 minutes) of shaking operation.
- Intuitive operation with color touch display.
- High brightness / low-power LED illumination makes it easy to observe inside.
- Spill drain port for internal cleanliness and easy maintenance.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Outstanding Safety
- Electronic over temperature protection system. (A-OT, advanced over temperature limiter)
Independent precision temperature sensor and controller provides more secure and reliable over temperature protection. - Conventional over-temperature protection system. (B-OT, backup over temperature limiter)
A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors. - Soft start and stop shaking function.
- Malfunction prevented by controller lock function.
- Displays all information such as device operation and error occurrence.
- Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.
Smart Self-diagnosis
Real-time self-diagnostics to check equipment for abnormal conditions.
- Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
- Automatic restart as it was operated after power recovery.
Specifications
| Model | ISS-7100 | ISS-7100R | ISS-7200 | ISS-7200R | |||||
|---|---|---|---|---|---|---|---|---|---|
| Temperature | Range (℃ / ℉) 1) |
Amb. +10 to 80 / Amb. +18 to 176 |
Amb. -20 (Min. 4) to 80 /Amb. -36 (Min. 7.2) to 176 |
Amb. +10 to 80 /Amb. +18 to 176 |
Amb. -20 (Min. 4) to 80 /Amb. -36 (Min. 7.2) to 176 |
||||
|
Fluctuation at 37℃ in flask (±℃ / ℉) |
0.1 / 0.18 | ||||||||
|
Variation at 37℃ in flask (±℃ / ℉) |
0.6 / 1.08 | 0.5 / 0.90 | 0.6 / 1.08 | 0.5 / 0.90 | |||||
| Refrigerator (Hp) | - | 1/6Hp | - | 1/6Hp | |||||
| Shaking system | Motion type | Orbital | |||||||
| Speed range (rpm) | 30 to 400 (stackable2) : 30 to 250) | 30 to 300 (stackable2) : 30 to 200) | |||||||
| Max. speed per permissible load (rpm) |
1 unit only 400 (max. 20 kg / 44.1 Ibs) |
1 unit only 400 (max. 20 kg / 44.1 Ibs) |
|||||||
| Stacked units 250 (max. 15 kg / 33.1 Ibs) 150 (max. 20 kg / 44.1 Ibs) |
Stacked units 200 (max. 15 kg / 33.1 Ibs) 150 (max. 20 kg / 44.1 Ibs) |
||||||||
| Amplitude size (mm / inch, dia.) | 25.4 / 1 | 50.8 / 2 | |||||||
| Speed stability 2)(rpm, %) | ±1 | ±1 | |||||||
| Timer (count-down) | 999 hr 59 min. | 999 hr 59 min. | |||||||
| Dimension | Chamber volume (L / cu ft) | 198 /7.0 | |||||||
| Platform (W×D, mm / inch) | 755×520 / 29.7x20.5 | ||||||||
| Interior (W×D×H, mm / inch) | 809×624×393 / 31.9×24.6×15.5 | ||||||||
| Exterior (W×D×H, mm / inch) 3) | 1 unit ; 1307 x 996 x 755 / 51.5 x 39.2 x 29.7 1 unit+stand-I or 2 units stacked ; 1307 x 996 x 1355 / 51.5 x 39.2 x 53.3 2 units+stand-II stacked ; 1307 x 996 x 1655 / 51.5 x 39.2 x 65.2 3 units stacked ; 1307 x 996 x 1955 / 51.5 x 39.2 x 77.0 |
||||||||
| Net weight (kg / Ibs) | 300 / 661.4 | 320 / 705.5 | 300 / 661.4 | 320 / 705.5 | |||||
| Electrical requirements (230V, 50/60Hz) | 3.7A | 5.6A | 3.7A | 5.6A | |||||
| Cat. No. |
AAH238132K |
AAH238236K |
AAH239132K |
AAH239236K |
|||||
| Electrical requirements (120V, 60Hz) | 7.1A | 10A | 7.1A | 10A | |||||
| Cat. No. | AAH238115U | AAH238215U | AAH239115U | AAH239215U | |||||
