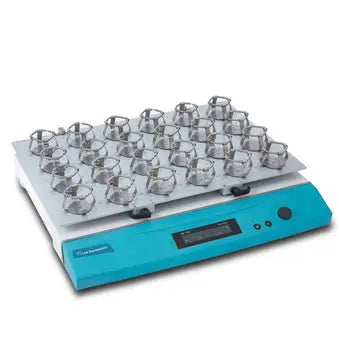

Jeio Tech AAH30226U SKC-7200 Shaker (orbital, 2" stroke) ) 120V, 60Hz
Jeio Tech AAH30226U SKC-7200 Shaker (orbital, 2" stroke)
Features
Performance
- Microprocessor PID control maintaining constant speed
- Competitive high shaking speed up to 500 rpm.
- Orbital shaking motion in various diameters.
- 19mm for SKC-7075
- 25mm for SKC-7100
- 50mm for SKC-7200 - Wide speed range even with heavy workload.
- Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation. - Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
- Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock. - Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevent chemical spills from flasks or test tubes. - Exceptional low-profile design (only 12cm from bottom to platform) minimizes vibration or sliding caused by the high speed shaking motion.
Convenience
- User friendly control panel.
- Lab Companion’s unique VFD-bright, clear, easy to read.
- Durable membrane touch switch and control knob. - Easy-exchangeable slide type universal platform reduces physical fatigue when handling the heavy load samples. (optional)
- Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process. - Variety of accessories are available to meet application demands.
Safety
- Shaking speed deviation alarm.
- Over-current protection.
| rogramming parameters | ||
|---|---|---|
| Max. number of segments in one(1)pattern(cycle) | 20 | |
| Max. number of patterns(cycle)saved | 20 | |
| Shaking motion- Forward & Backward, Pause | Time | 1min. to 99hr. 59min. |
| rpm | 30 to 500 | |
Specifications
| Model | SKC-7075 | SKC-7100 | SKC-7200 | ||
|---|---|---|---|---|---|
|
Control system |
PID feedback control |
||||
|
Display |
VFD |
||||
|
Shaking system |
Motion type |
Orbital |
|||
|
Amplitude size(mm / inch, dia) |
19 / 0.75 |
25 / 1 |
50 / 2 |
||
|
Speed range2)(rpm) |
30 to 500 |
||||
|
Accuracy at 100 rpm |
±1 |
||||
|
Dimension |
Platform(W×D) (mm / inch) |
Small |
755×520 / 29.7×20.5 |
||
|
Large |
885×520 / 34.8×20.5 |
||||
|
Body1)(W×D×H) (mm / inch) |
754.8×662×122.2 |
||||
|
29.7×26.1×4.8 |
|||||
|
Net weight(kg / Ibs) |
75 / 165.4 |
||||
| Electric requirements(230V, 50 / 60Hz) | 0.4A | ||||
| Cat. No. | AAH30205K | AAH30215K | AAH30225K | ||
| Electric requirements(120V, 60Hz) | 0.8A | ||||
| Cat. No. | AAH30206U | AAH30216U | AAH30226U | ||
