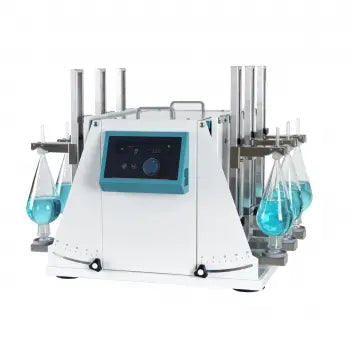

RS-2 Recipro Shaker (Incl. 4 pieces of funnel holder) (120VAC,60Hz), US Plug
Features
High mixing efficiency and enhanced durability

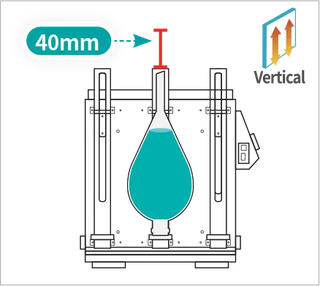

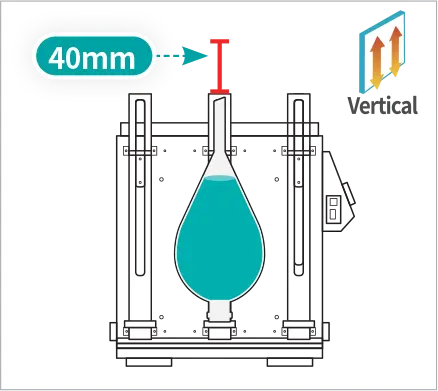

- Vertical reciprocation at a maximum of 300 rpm and 40 mm stroke length.

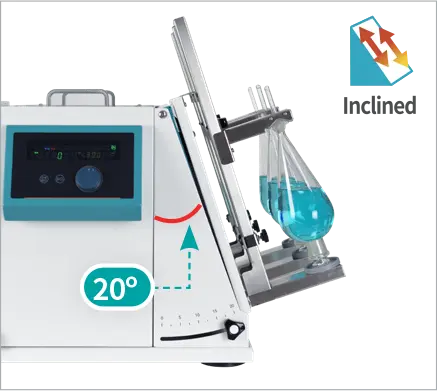

- Adjustable shake tilt to achieve high mixing efficiency at low rpm.
- Use of BLDC motor provides outstanding durability, lower noise level, and enhanced stability compared to competitor products using DC motors.
Easy sample installation and removal;stable operation

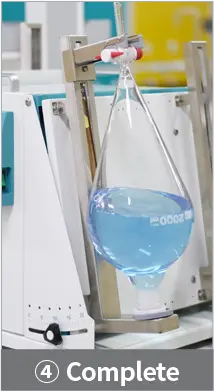

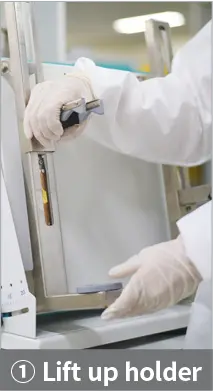

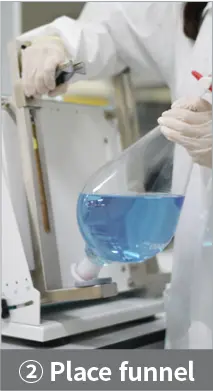

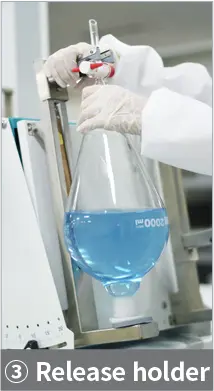

- One-touch mechanism for swift and easy funnel installation and removal, even by female researchers.
- Stable center of gravity design minimizing vibration even with one sided sample installation or high speed tilted movement.
Simultaneous mixing of up to 4 * 2L funnels
- Fits cone or cylindrical type funnels of up to 2L capacity (capacity limit for previous model was 1L).
- Simultaneous installation of up to 10 * ❮ 0.5L funnels, 6 * 0.5-1L funnels, and 4 * 2L funnels (4 funnel holders are included in the product package).
Controller for convenience and safety in use

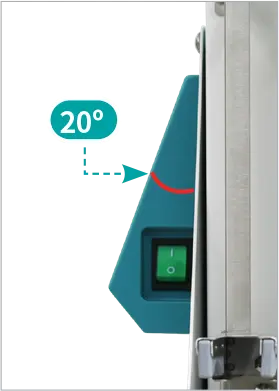

- Controller with display panel installed at a 20º angle, allowing good visibility even from the floor; ease of operation.
- Safety devices for protecting the user and the experiment (protecting the device from overcurrent, automatic resumption upon return of power supply after power failure).
More flexibility in experiment schedule

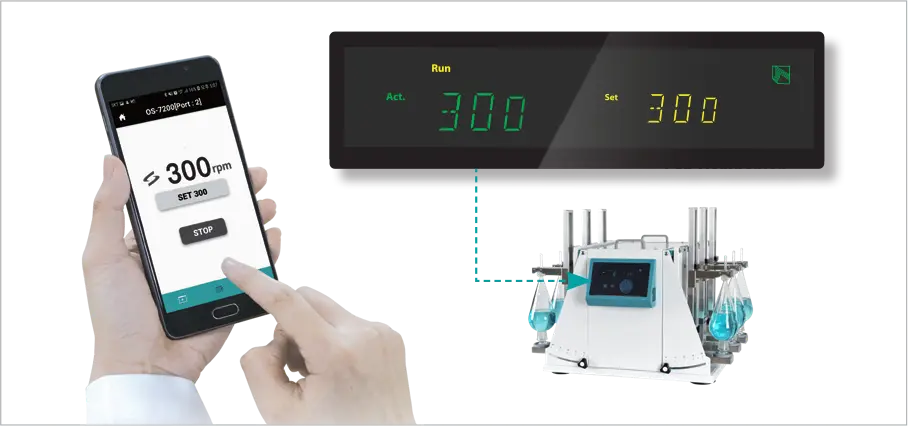

- LC Connected (mobile monitoring system) network for flexibility in experiment planning (option).
- Count-down timer (Max. 999 hr. 59 min.).
Specifications
| Model | RS-2 |
|---|---|
|
Shaking system |
|
|
Motion type |
Vertical & Inclined reciprocating (0 ~ 20°) |
|
Speed range (rpm) |
Vertical 30 to 300 / Inclined 30 to 250 |
|
Speed accuracy at 100rpm (± rpm) |
1 |
|
Timer |
999hr 59 min |
|
Dimension |
|
|
Exterior (W x D x H, mm) |
600 x 460 x 470 |
|
Minimum required space considering 20º tilt |
900 x 460 x 670 |
|
Max. load per each side (kg) |
5 |
|
Net weight (kg) |
52 |
|
Electrical data & Ordering No. |
|
|
AC 100~240V, 50/60Hz (A) |
0.88 MAX. |
|
Cat.No. |
AAH32025K |
|
Cat.No. |
AAH32023U |
