Jeio Tech AAH344XXX Hotplate & Magnetic Stirrer (Digital), KR or US plug, 120V / 230V, 50/60Hz
Features
Performance & Convenience
- Microprocessor PID temperature control.
- Feedback control allows constant stirring speed.
- Auto-tuning and temperature calibration functions.
- Multi-functional temperature control modes. (optimal / fast / slow / user / point)
- Optimum heating level is adjustable from 0 to 100%.
- Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
- Fast and precise stirring operations are enabled by BLDC motor and special magnet with extremely strong magnetic coupling power.
- Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media.
- Instant halt of the stirring operation.
- Precise temperature is set by digital display and optimum heating level is adjustable.
- Advanced dual wait on/off timer modes.
- User can set timer to starts immediately after the timer setting or only after reaching the set temp. - Separate operation RUN/STOP button.
- Provided temperature probe detects the actual temperature of media in real time. (PT100, max. 250℃, SN-8-4 connector sensor)
Safety
- Hot top warning Indicator, built in thermal shut off, current limit protection.
- High and low temperature limit setting for user convenience and safety.
- ※ CSA except for TS-18QG. / ※ RoHS except for TS-17SG, 18QG.
Specifications
| Model | TS-14SG | TS-17SG | TS-18QG | |
|---|---|---|---|---|
| Heating | Temperature range (℃ / ℉) | Max. 350 / 662 | ||
| Control | Feedback control with PID | |||
| Display | LED digital (0.1℃ resolution) | |||
| Heating power (W) | 600 | 800 | 800 | |
| Stirring | Speed range (rpm) | 30 to 2,000 | ||
| Capacity (L / cu ft, H2O) | 20 / 0.71 | |||
| Magnetic bar, Max. (ØxL, mm / Inch) | 8 x 40 / 0.31 x 1.57 | |||
| Safety | Hot top indicator (℃ / ℉) | Warning lamp (50 / 122) | ||
| Over temp. | Top plate / Main body / PCB | |||
| Over current | Current limit protection | |||
| Motor | BLDC motor | |||
| Timer | 2 type, 1min. to 99 hr. 59 min. | |||
| Load, Max (kg / Ibs) | 25 / 55.1 | |||

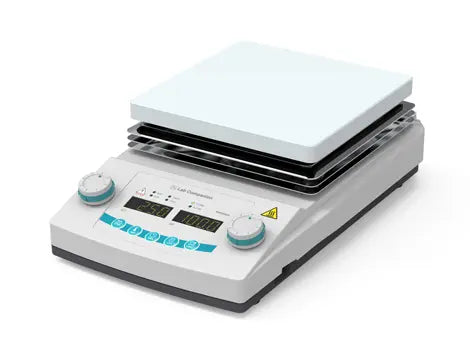

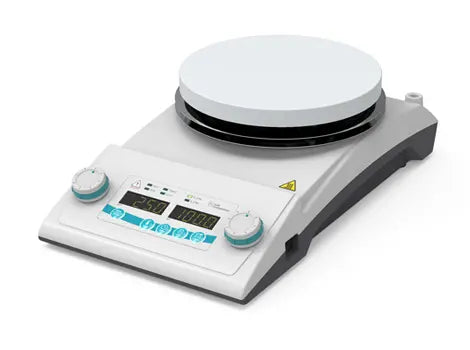

| Top plate | Shape | Round type | Square type | |
| Material | Ceramic coated aluminum | |||
| Dimension (Ø or WxD) (mm / inch) | 140 / 5.51 | 170 / 6.69 | 180x180 / 7.08x7.08 | |
| Body | Shape | Straight body | ||
| Material | Aluminum | |||
| Dimension (WxDxH) (mm / inch) | 161x290x100 / 6.34x11.42x3.94 | 191x330x101 / 7.52x12.99x3.98 | 209x326x102 / 8.22x12.83x4.0 | |
| Net weight (kg / Ibs) | 2.8 / 6.17 | 3.5 / 7.72 | 3.8 / 8.37 | |
| Electrical requirements (230V, 50/60Hz) | 3.0 A | 4.0 A | ||
| Cat. No. | AAH34445K | AAH34475K | AAH34485K | |
| Electrical requirements (120V, 60Hz) | 5.0 A | 6.7A | ||
| Cat. No. | AAH34443U | AAH34473U | AAH34483U | |
