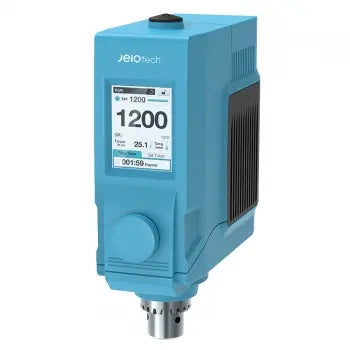

Jeio Tech AAH371XXXX Mechanical Stirrer(LCD, digital) US Plug or Kr Plug, 60 to 100 Stirring Capacity
Features
Performance
- Years of vibration-free and silent operation.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, and yet powerful stirring. - Powerful torque capable of handling high viscosity tasks.
- Maintenance of constant motor speed by PID feedback control system even under conditions of changing viscosity.
- Best effort function intelligently manages its stirring speed to keep stirring even workload is out of its capacity.
- Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.
Convenience
- Touch type LCD controller.
- Various essential information are visible at once and intuitionally controlled.
- Set/present rpm and run time view, simple timer set. (max. 99 hr. 59 min.)
- Varying motor torque is indicated on display in real time.
- Motor temperature condition is indicated on display by three different colors to protect motor.
- Stirring directions are selectable depending on each impeller’s shape. - Built-in USB port for external control and data collection.
- Useful for PC control and data management task.
- Lab Companion software and USB cable are provided as standard. - Practical external controller.
- Intuitive and easy control with color touch LCD.
- It enables convenient and safe external control without opening the sash of the fume hood or safety cabinet. - Compact and slim head design for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Sturdy aluminum main body efficiently absorbing and emitting the heat generated by the motor.
- Safety features against overload and overheating for continuous operation.
- When it comes to heavy workload, it tries to activate best effort function.
But if it determines that performing the work is harmful for it, than it stops stirring.
- Equipped with a mini fan inside to minimize overheating of the motor. - Separated adapter from the main body minimizes the risks of electrical hazards to the users.
- Screen lock function prevents accidental changes during operation.
Specifications
| Model | MSH-0512 | MSH-0520 | |
|---|---|---|---|
| Speed control | PID feedback control | ||
| Speed range (rpm) | 50 to 1,200 | 50 to 2,000 | |
| Chuck range (mm / inch, dia) | 3 to 10 / 0.1 to 0.4 | ||
| Stirring capacity, Max. (L, H2O) | 100 | 60 | |
| Viscosity, Max. (cP) 1) |
5,000 (~1,200rpm)
10,000 (~1,200rpm)
30,000 (~1,200rpm)
50,000 (~700rpm)
|
5,000 (~2,000rpm)
10,000 (~1,600rpm)
30,000 (~600rpm)
50,000 (~300rpm)
|
|
| Torque, Max. (N·cm) | 41.6 | 20.8 | |
| Motor rating input / output (W) | 71 / 48 | ||
| Material | Body / Cover / Motor | Powder coated aluminum / Polypropylene / BLDC | |
| Dimension | Overall (W×D×H) (mm / inch) | 80x185x235 / 3.1x7.3x9.3 | |
| Net weight (Kg / lbs) | 3.1 / 6.8 | ||
| Protection class (DIN EN 60529) | IP30 | ||
| Electrical requirements | AC 100 to 240V, 50/60Hz with power adapter | ||
| Power consumption (W) | 5.0 A | 5.0 A | |
| Cat. No. | KR Plug | AAH371415K | AAH371515K |
| US Plug | AAH371415U | AAH371515U | |
