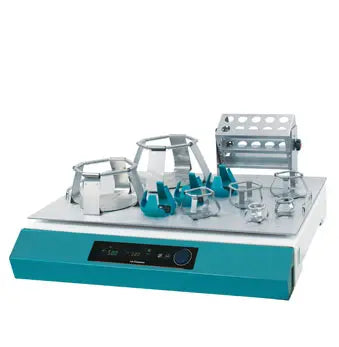

Jeio Tech AAH3D1565U OS-7200 Shaker(Orbital, 2.0") 120V, 60Hz
Jeio Tech AAH3D1565U OS-7200 Shaker(Orbital, 2.0")
Features
Performance
- Microprocessor PID control.
- Intelligent speed controller enables reproducible results. - Shaking speed calibration enables matching the displayed rpm to the reference point.
- Competitive high shaking speed up to 500 rpm.
- Orbital shaking motion in various diameter.
- 25.4mm for OS-7100
- 50.8mm for OS-7200 - Wide speed range even with heavy workload.
- Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation. (for OS-7100/7200) - Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
- Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock. - Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevent chemical spills from flasks or test tubes. - Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.
Convenience

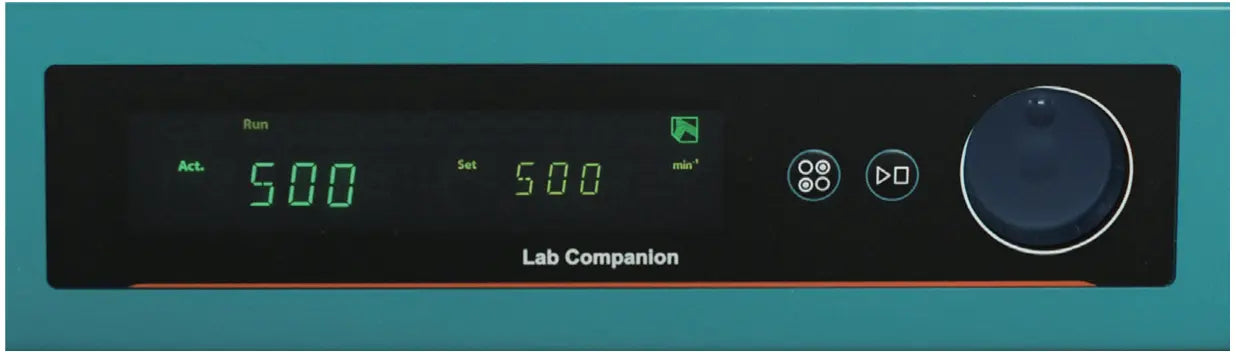

- User friendly control panel.
- Lab Companion’s unique VFD-bright, clear, easy to read.
- Durable membrane touch switch and control knob. - Easy-set digital timer. (1 min. to 999 hr. 59 min.)
- Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process. - Speed is basically set and displayed in increments of 1 rpm. Also speed increment interval can be set among 1, 5, 10 rpm according to users preference.

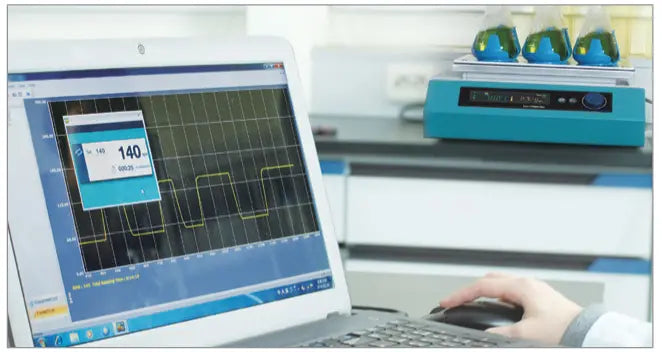

- Built-in RS-232 port and USB port for external control and data collection.

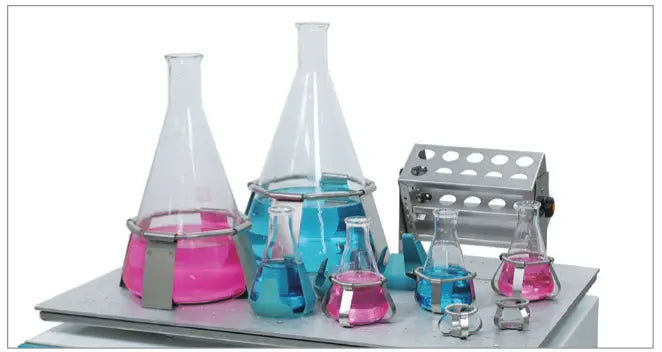

- Variety of accessories are available to meet application demands.
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
Safety
- Automatic run after power interruption.
- Shaking speed deviation alarm.
- Over-current protection
Specifications
| Model | OS-7100 | OS-7200 |
|---|---|---|
| Shaking system | ||
|
Motion type |
Orbital | Orbital |
| Speed range (rpm) | 30 to 500 | 30 to 300 |
| Max. speed per permissible load 1) |
500rpm (max. 10 kg) 400rpm (max. 30 kg) |
300rpm (max. 23 kg) 250rpm (max. 35 kg) |
|
Amplitude size |
25.4 / 1 |
50.8 / 2 |
|
Speed stability 2) (rpm, %) |
1 |
1 |
|
Timer (count-down) |
9999hr 59min |
999hr 59min |
| Dimension | ||
|
Platform (W×D) (mm / inch) |
755 x 520 / 29.6 x 20.5 |
|
|
Body 1) (W×D×H) (mm/inch) |
755 x 627 x 151 / 29.7 x 24.7 x 5.9 |
|
|
Net weight (Kg / lbs) |
117 / 257.9 |
|
| Electrical requirements (230V, 50 / 60Hz) |
0.4A |
|
| Cat. No. | AAH3D1415K | AAH3D1515K |
| Electrical requirements (120V, 50 / 60Hz) | 0.8A | |
| Cat. No. | AAH3D1465U | AAH3D1565U |
