Jeio Tech AAH3E115U CRT-350 Rotator US Plug 100-240V, 50/60Hz
Jeio Tech AAH3E115U CRT-350 Rotator US Plug
Features4
| Tube | Quantity (ea) |
|---|---|
| 1.5ml | 120 |
| 5ml | 36 |
| 15ml | 36 |
| 50ml | 24 |
Performance
- Microprocessor PID control.
- Adjustable speed range from 2 to 70 rpm.

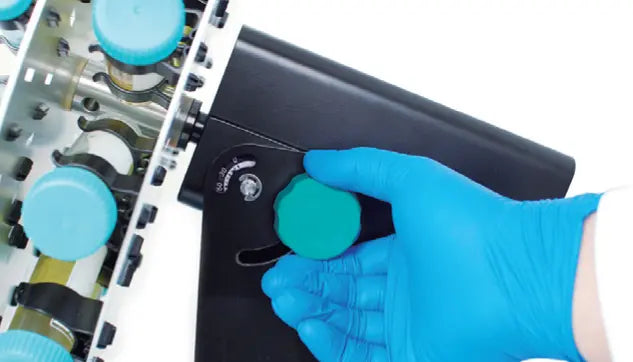

- Fully adjustable tilt angle up to 90°.
- Horizontal for minimal mixing and vertical for full end-over-end mixing. - Digital speed control providing gentle rotating even at low speed.
- Low-profile design with rubber feet for minimal vibration and noise.
Convenience

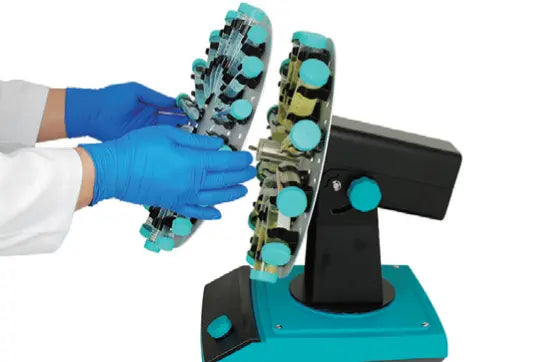

- Simple fixture of accessories equipped to disk for quick installation and removal.
- Various selection of optional tubes and flask clamp holder disks to accommodate most application.

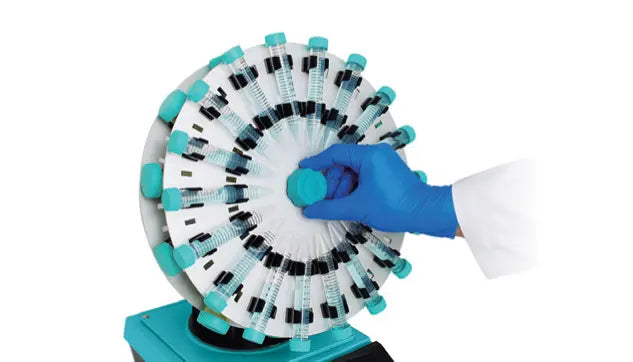

- Available to rotary maximum 120 test tubes simultaneously with use of two tube holders by optional dual holder accessory.
- Vivid and colorful vacuum fluorescent display (VFD) with touchsensitive keypad.
- One-touch timer range: 1 min. to 99 hr. 59 min.
Safety
- Stepping motor with self-protection function for advanced durability.
- Self-diagnostic function identifying errors.
- Its polypropylene main body is highly chemical-resistant and easy-to-clean.
- Over-current protection.
| Model | CRT-350 | |
|---|---|---|
|
Control system |
PID feedback control |
|
|
Display |
VFD |
|
|
Shaking system |
Motion type |
Orbital |
|
Speed range (rpm) |
2 to 70 |
|
|
Tilt angle |
0 to 90° |
|
|
Max. load (kg / Ibs) |
4 / 8.8 |
|
|
Material |
Disk (optional) |
Aluminum |
|
Body |
PP(polypropylene) |
|
|
Dimension |
Exterior with disk (optional) (W×D×H) (mm / inch) |
320x325x463 / 12.6x12.8x18.2 |
|
Net weight with disk (optional) (kg / Ibs) |
7.5 / 16.5 |
|
| Electrical requirements | AC 100 to 240 V, 50/60 Hz | |
| Cat. No. | KR plug | AAH3E115K |
| US plug | AAH3E115U | |
