Jeio Tech AAH45135K BW-20H Heating Bath(20L) 230V, 50/60Hz
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?

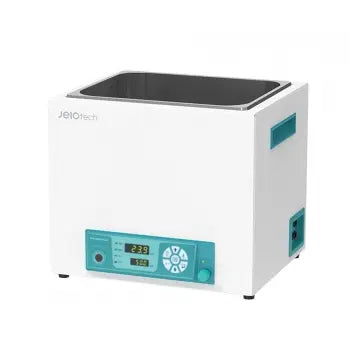

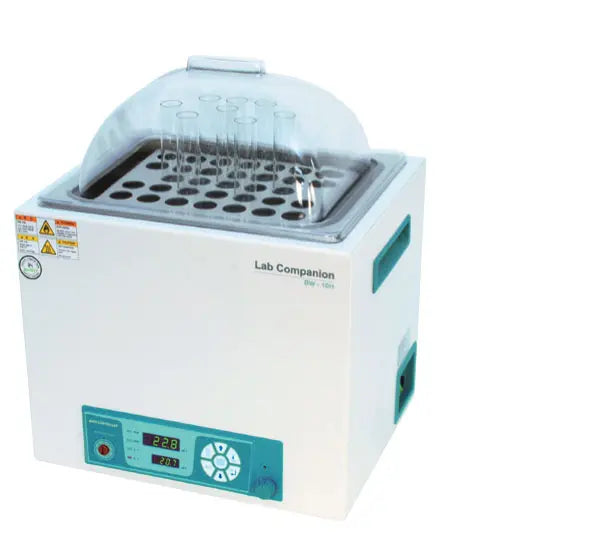

Jeio Tech BW-20H Heating Bath(20L)
Features
Performance
- Temperature range from ambient +5℃ to 100℃.
- Microprocessor PID control / Automatic tuning / Calibration.

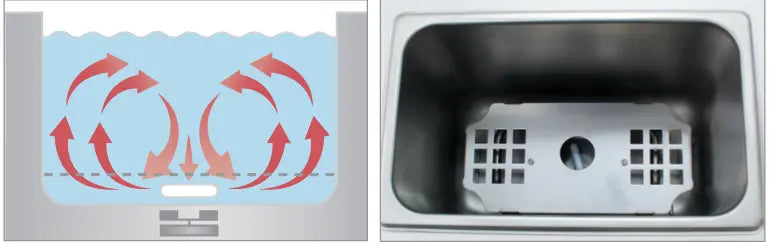

- Powerful circulation system using our patented agitator.
Safety

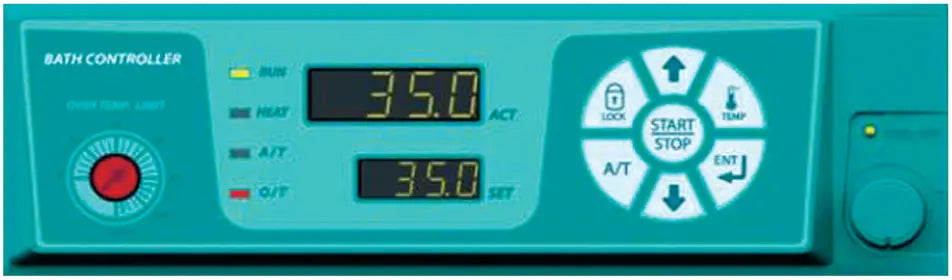

- Digital LED displays with quick adjustable dial knob. (0.1℃resolution)
- Low-profile design with sloped control panel for easier access and better safety.
Convenience
- Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.
- Complete safety protection system with warning alarms.
- Over-temperature, over-current protection. - Keypad lock function prevents accidental changes during operation.
Specifications
| Digital Model | BW-05H | BW-10H | BW-20H | |
|---|---|---|---|---|
|
Bath volume (L / cu ft) |
3.5 / 0.1 |
11.5 / 0.4 |
20 / 0.7 |
|
|
Temperature |
Working temperature range (℃ / ℉) |
Amb. +5 to 100 / Amb. +9 to 212 |
||
|
Temperature stability at 50℃ (±℃ / ℉) |
±0.1 / 0.18 |
|||
|
Heat up time to 70℃ (min) 1) (±℃ / ℉) |
25 |
45 |
50 |
|
|
Dimension |
Bath opening / depth |
240×136, 150/ 9.4×5.4, 5.9 |
300×240, 200/ 11.8×9.5, 7.9 |
498×300, 200/ 19.6×11.8, 7.9 |
|
Exterior(W×L×H) (mm / inch) |
307×216×266 / 12.1×8.5×10.5 |
364×316×318 / 14.3×14.4×12.5 |
564×372×318 / 22.2×14.6×12.5 |
|
|
Net weight (kg / lbs) |
6.5 / 14.3 |
9.5 / 21 |
15.5 / 34.2 |
|
|
Electrical requirements (230V, 50 / 60Hz) |
3.0A |
4.3A |
8.7A |
|
