Jeio Tech HX-XX Compact Lab Chiller / Recirculating Cooler, 3°Cto 40°C
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?

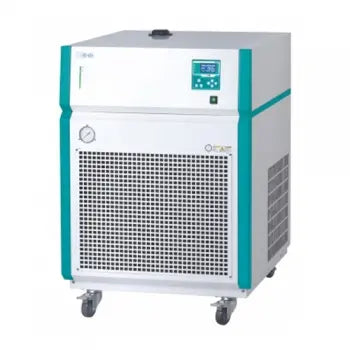

Jeio Tech AAH64159K HX-55H Recirculating cooler (3hp) KR Plug
Features
Performance
- Temperature range from 3°Cto 40°C.
- High cooling capacity up to 7.1kW at 20°C.
- Powerful circulating pumps up to 40L/min., 4.3 bar.
- Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.
- Pump pressure can be controlled using a by-pass function. (for H type)
Convenience

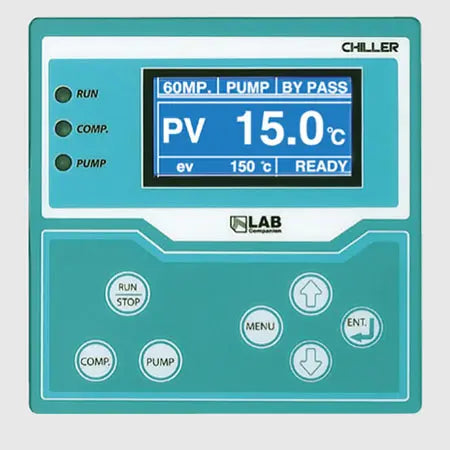

- Clear and easy-to-use LCD display. (resolution 0.1°C)

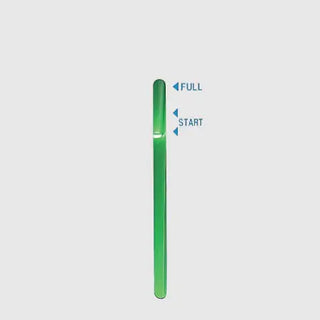

- Bright LED water level indicator can be seen from a distance.

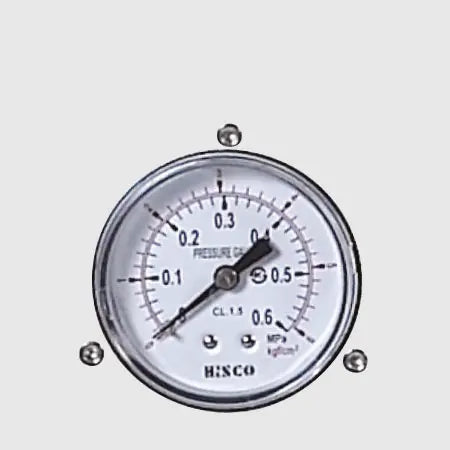

- Built in pressure gauge for checking pump pressure at a glance.
- High/low pressure gauges for condition diagnosis of refrigerating system at a glance. (for H type)
- Wide filling inlet for easy and safe pouring of solution into the unit.
- Suitable model is selectable between magnetic pump, centrifugal pump.
- Double service valve prevents refrigerant leakage for easy maintenance.
- Removable gridded vent for easy maintenance of condenser.
- Built-in casters for easy transport and installation.
Safety
- Self-diagnostic function identifying errors.
- Complete safety protection system with warning alarms.
- Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.
- Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.
- Over-current circuit breaker. - Eco-friendly R-404A refrigerant use for environmental protection.
- Splash-proof keypad.
Specifications
| Model | HX-20 | HX-25 | HX-20H | HX-25H | HX-35H | HX-45H | HX-55H | ||
|---|---|---|---|---|---|---|---|---|---|
| Temperature 1) (bath fluid : water) |
Working temperature range (℃ / ℉) |
+3 to 40 / +37.4 to 104 | |||||||
| Temperaturestability at 15℃ (±℃ / ℉) |
1 / 1.8 | ||||||||
| Cooling capacity (bath fluid : water) |
at 20℃ (kW) | 2.2 | 2.8 | 2.2 | 2.8 | 4.2 | 5.5 | 8.1 | |
| at 10℃ (kW) | 1.6 | 2 | 1.6 | 2 | 3.6 | 4.2 | 5.9 | ||
| at 5℃ (kW) | 1.2 | 1.6 | 1.2 | 1.6 | 2.8 | 3.4 | 4.8 | ||
| Pump | Max. flow rate(L / min, gal / min) | 40 / 10.6 | 32 / 8.5 | ||||||
| Max. pressure (bar / psi) | 2 / 29.0 | 6 / 87.0 | |||||||
| Dimension | Max. filling capacity(L / cu ft) | 35 / 1.24 | 45 / 1.59 | ||||||
| For tubing dia.(mm / inch) | 20 / 3/4 | ||||||||
| Filling inlet(Ø, mm / inch) | 50 / 1.9 | ||||||||
| Overall (W×L×H, mm / inch) | 620×785×990 / 24.4×30.9×39 | 745×800×1095 / 29.3×31.5×43.1 | |||||||
| Net weight (kg / lbs) | 93 / 205 | 101 / 223 | 97 / 214 | 105 / 231 | 120 / 265 | 130 / 287 | 140 / 309 | ||
| Electrical requirements (230V, 60Hz) | 8.5A | 9A | 9.3A | 9.8A | 15A | 19A | |||
| Cat. No. | AAH64011K | AAH64021K | AAH64111K | AAH64121K |
AAH64135K (50/60Hz) |
AAH64141K | - | ||
| Electrical requirements (230V, 50Hz) | 7A | 7.6A | 7.9A | 8.8A | 15A | ||||
| Cat. No. | AAH64015K | AAH64025K | AAH64115K | AAH64125K |
AAH64135K (50/60Hz) |
AAH64145K | - | ||
| Electrical requirements (120V, 60Hz) | 17A | 22A | |||||||
| Cat. No. | AAH64013U | AAH64023U | - | - | - | - | - | ||
| Electrical requirements (380V, 60Hz) | 10A | 11.5A | |||||||
| Cat. No. | - | - | - | - | - | AAH64149K | AAH64159K | ||
| Electrical requirements (380V, 50Hz) | 7A | 8.5A | |||||||
| Cat. No. | - | - | - | - | - | AAH64140K | AAH64150K | ||
