Jeio Tech HL-XX Low Temp Lab Chiller/Recirculating Cooler, -20°Cto 40°C.
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?

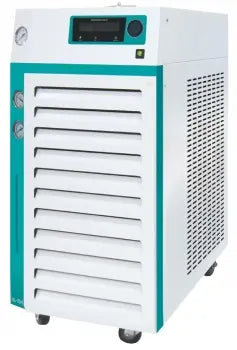

Jeio Tech AAH65179K HL-55H Recirculating Cooler (3hp)
Features
Performance
- Temperature range from -20°Cto 40°C.
- High cooling capacity up to 7.1kW at 20°C.
- Powerful circulating pumps up to70L/min., 6 bar.
- Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.
Convenience
- Designed to simplify operation with a touch screen type display.
- Easy-to-read VFD display with interactive touch keys.
- Setting and resolution indication 0.1°C/°F.
- Quick keypad lock prevents accidental parameter changes.
- Signal indicator for operation status. - Bright LED water level indicator can be seen from a distance.
- Built in pressure gauge for checking pump pressure at a glance.
- High/low pressure gauges for condition diagnosis of refrigerating system at a glance. (for H type)
- Wide filling inlet for easy and safe pouring of solution into the unit.
- Double service valve prevents refrigerant leakage for easy maintenance.
- Removable gridded vent for easy maintenance of condenser.
- Built-in casters for easy transport and installation.
Safety
- Self-diagnostic function identifying errors.
- Complete safety protection system with warning alarms.
- Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.
- Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.
- Over-current circuit breaker.
- Eco-friendly R-404A / R-507 refrigerant use for environmental protection.
- Splash-proof keypad.
Specifications
| Model | HL-05 | HL-10 | HL-15 | HL-20 | HL-15H | HL-20H | HL-25H | HL-35H | 2)HL-45H | 2)HL-55H | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Temperature 1) (bath fluid : ethylene glycol mix 1:1 water) |
Working temp. range (℃ / ℉) | -20 to 40 / -4 to 104 | |||||||||
| Temp. stability at15℃, (±℃ / ℉) | 1 / 1.8 | ||||||||||
| Cooling capacity (bath fluid : ethylene glycol mix 1:1 water) |
at 20℃ (kw) | 0.6 | 0.7 | 1.45 | 1.8 | 1.45 | 1.8 | 2.5 | 3.3 | 6.5 | 7.1 |
| at 10℃ (kw) | 0.5 | 0.6 | 1.15 | 1.5 | 1.15 | 1.5 | 1.8 | 2.3 | 4.5 | 6 | |
| at 0℃ (kw) | 0.35 | 0.42 | 0.86 | 1.15 | 0.86 | 1.15 | 1.1 | 1.7 | 3 | 4.1 | |
| at -10℃ (kw) | 0.18 | 0.32 | 0.62 | 0.85 | 0.62 | 0.85 | 0.65 | 1 | 2.1 | 2.5 | |
| at -20℃ (kw) | 0.04 | 0.14 | 0.3 | 0.40 | 0.3 | 0.4 | 0.4 | 0.55 | 1.2 | 1.5 | |
| Pump |
Max. flow rate (L / min, gal / min) |
50 / 13.2 | 40 / 10.57 | 70 / 18.49 | |||||||
|
Max. pressure (bar / psi) |
1 / 14.5 | 3.3 / 47.9 | 6 / 87 | ||||||||
| Dimension |
Max,. filling Capacity (L, cu ft) |
7.5 / 0.26 | 13.5 / 0.47 | 25 / 0.88 | 39 /1.37 | ||||||
|
For tubing dia. (mm / inch) |
20 / 3/4 | ||||||||||
|
Filling inlet (Ø, mm / inch) |
120 / 4.7 | ||||||||||
|
Overall (WxLxH, mm / inch) |
405×620×710 /15.9×24.4×28 |
515×715× 835 /20.3×28.1×32.9 |
550×900×1140 /21.7×35.4×44.9 |
605×1045×1300 /23.8×41.4×51.2 |
|||||||
|
Net weight (kg / Ibs) |
62.85 /138.6 |
64.85 /143 |
86.5 /190.7 |
87.35 /192.9 |
91.8 /202.4 |
92.65 /204.3 |
141.3 /310.9 |
146.3 /321.9 |
171±10 /377±22 |
176±10 /388±22 |
|
| Electric requirement (230V, 60Hz) | 5A | 5.5A | 6.5A | 7.5A | 6.5A | 7.5A | 9.5A | 13.5A | |||
| Cat. No. |
AAH65001K |
AAH65011K |
AAH65021K |
AAH65031K |
AAH65121K |
AAH65131K |
AAH65141K |
AAH65151K |
- | - | |
| Electric requirement (230V, 50Hz) | 4.5A | 5A | 6A | 7A | 6A | 7A | 7.5A | 12.5A | |||
| Cat. No. |
AAH65005K |
AAH65015K |
AAH65025K |
AAH65035K |
AAH65125K |
AAH65135K |
AAH65145K |
AAH65155K |
- | - | |
| Electric requirement (120V, 60Hz) | 10A | 11A | 13A | 15A | |||||||
| Cat. No. |
AAH65003U |
AAH65013U |
AAH65023U |
AAH65033U |
- | - | - | - | - | - | |
| Electric requirement (380V, 60Hz) | 5.5A | 7A | |||||||||
| Cat. No. | - | - | - | - | - | - | - | - |
AAH65169K |
AAH65179K |
|
| Electric requirement (380V, 50Hz) | 5A | 6A | |||||||||
| Cat. No. | - | - | - | - | - | - | - | - |
AAH65160K |
AAH65170K |
|
