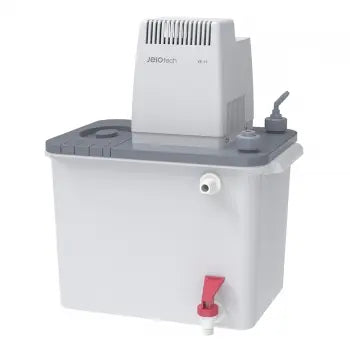

Jeio Tech AAH71016U VE-11 Electric Aspirator 120V, 60Hz
Jeio Tech AAH71016U VE-11 Electric Aspirator 120V, 60Hz
Features
Electrical Aspirator Pump
- Portable dual-channel water-jet aspirator pumps
- Creating a vacuum by means of venturi effect, aspirator pumps are suitable for rotary vacuum evaporation, decompression distillation, vacuum drying, and vacuum filtering. - Built-in circulating pump and water tank make the unit portable.
- Circulating pump continuously pumps water quietly across a set of aspirators, and is therefore clean and efficient.
- Built-in check valve prevents backflow of water into the aspirator pump.
- Corrosion-resistant construction of all wetted parts with 304 stainless steel, polypropylene, silicone, or nickel-coated brass.
- Water tank features a drain port and a spigot for easy changing of water.
Specifications
| Model | VE-11 | ||
|---|---|---|---|
| Bath volume (L / cu ft) | 9.5 / 0.3 | ||
| Max. vacuum (Mpa / mmHg) | 0.0998 / 749 | ||
| Free-air capacity | 18L / minute (0.6 cfm) ×2ea | ||
| Material (bath / aspirator) | Polypropylene / Nickel-coated brass × 2ea | ||
| Bath interior (W×L , D) (mm / inch) | 298×210, 227 / 11.7×8.3 ,8.9 | ||
| Exterior (W×L×H) (mm / inch) | 330×265×390 / 13×10.4×15.4 | ||
| Inhale nozzle | External Ø9.5mm (0.4”) ×2ea | ||
| Drain cook, Over flow nozzle (Ø, mm / inch) | 17 / 0.7 | ||
| Net weight (kg / lbs) | 5.7 / 12.6 | ||
| Electrical requirements | 230V, 60Hz / 0.7A | 230V, 50Hz / 0.7A | 120V, 60Hz / 1.4A |
