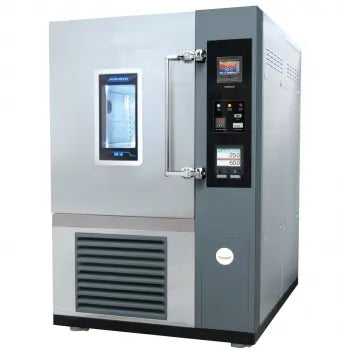

Jeio Tech AAH80078K TH-G-1500 Temperature & Humidity Chamber (1500L, 380V, 50Hz, 3phase) 380V, 50/60Hz, 3ph

Performance

• Microprocessor PID control / Temperature calibration / Automatic tuning.
• Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test.
• Water recycling and filtering system reduce water consumption for longer operation.
• Air-tight door closure with perfect sealed packing.
  - Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.

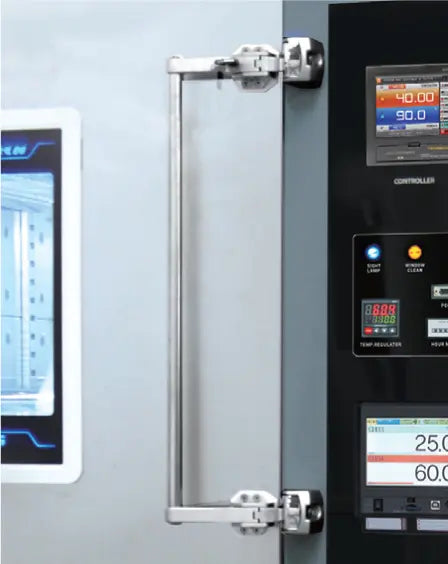

  - Two-point door latch also enhances tightness to door closure.
• Energy efficiency is achieved by optimization of the insulation system.
  - Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃.

Safety

• Built in door lock with a key.
• Automatic shut off after overheat alarm.
• Low and empty water level alarm.
• Power supply leakage breaker.
• Over current protection.
• Open door alarm.

Convenience

• Spacious chamber volume with a maximum capacity of 1500L.
  - Various volume sizes, available to suit any users’ need.
• Corrosion resistance stainless steel chamber and electric polished humidification tank.

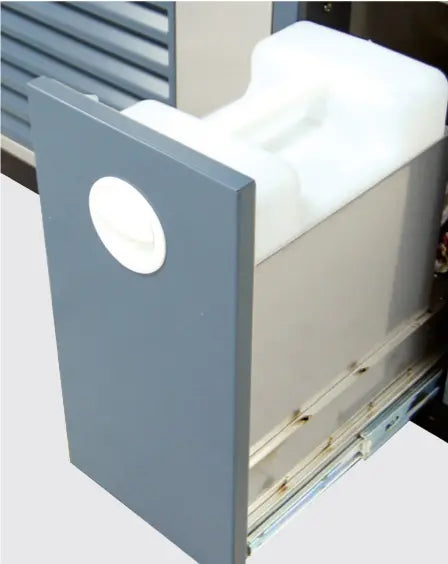

• Maintenance of water supply are easily performed with a front water tank.
  - Portable water container makes supplying water convenient.
• Water supply during operation is also available for long term test purposes.
• Direct water system provides user great convenience when performing long-term tests. (optional)
• Clear observation of samples.
  - Tempered glass door with built in heating wire.
  - Energy efficient, long life span LED lighting.
  - Wider view, inner glass door is available for monitoring of samples. (optional)
• Cable port for introduction of external probes or wires.
  - 50mm diameter cable port comes standard on the left side of the unit.
  - Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)
• Casters for easy mobility during installation or relocation.

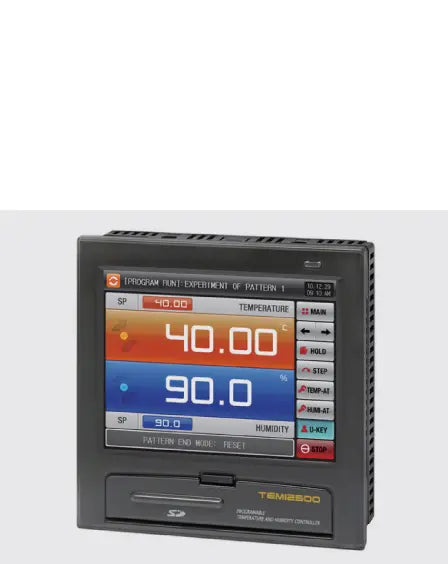

• User friendly LCD controller.
  - 5.7 inch colorful interactive touch type LCD controller.
  - Set value and present value are clearly visible together on display.

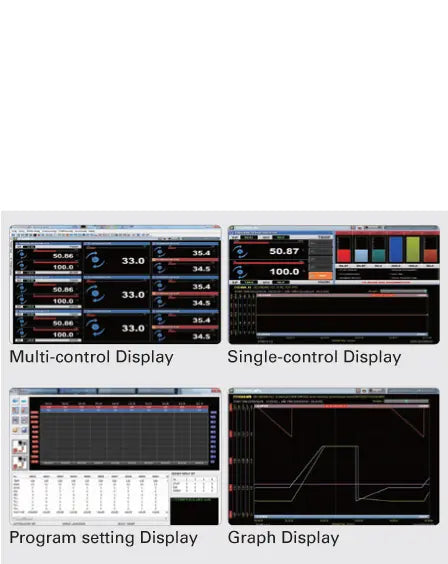

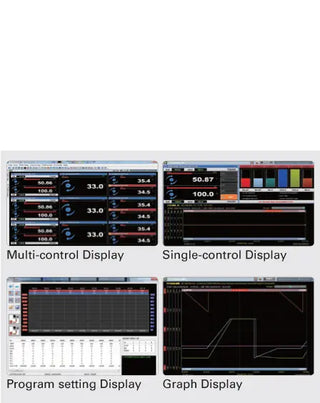

  - Operating progress visible in graph mode allow for direct data interpretation.
  - Built-in SD card drive.
  - Trilingual support. (English / Chinese / Korean)
  - Temperature and other operating parameters recorded with use of selectable recorder. (optional)
  - Sufficient programmable control support.

Specifications
