Optimized Model Configuration

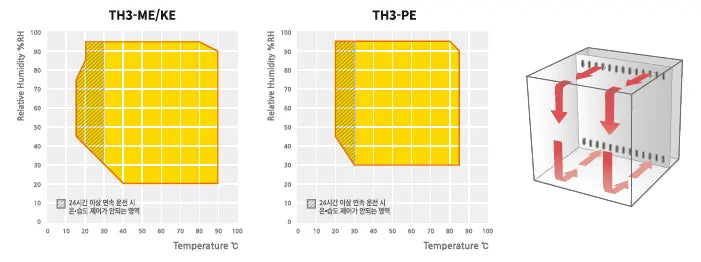

• 3 series (KE, ME, PE) according to temperature / temperature and humidity control range.
  TH3-KE; -40 ~ 100°C
  TH3-ME; -20 ~ 100°C
  TH3-PE; 0 ~ 100°C
• Standard type Temp. & Humid chamber for selecting the optimized model according to test conditions.
• Dedicated stand for convenient use and moving.(option)
• Recorder for maintaining test records. (option)

Structural functional features

• Proven reproducibility and reliability with structural design optimized for miniaturization.
• Compact design for excellent space saving.
• Stable humidity control ability with applying differentiated external humidification system and convenient maintenance for cleaning testing space.
• Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use.
• The door part has a double sealing structure and excellent airtightness.

Use Convenience Features

• Convenient operation with 5.6 inch color touch display controller.
• Possible to check the operation status with graphs.
• Water level check function enables water replenishment at the right time.
• Water inlet is easy to use with easy cap.
• Efficient water supply and recirculation system minimizes water refilling even for long-term high-humidity tests.
• Operation and status monitoring from the front of the chamber.
• Easy observation of samples with tempered glass door with built in heating wire and LED lamp.

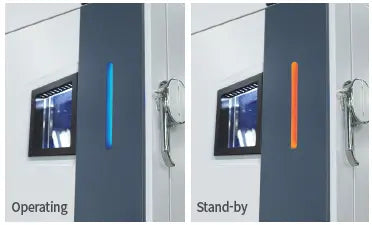

• By displaying the operation status of the device with LED colors, convenient to identify chambers status from a far.
• The cable port and silicone plug included as standard make it convenient to connect external equipment.
• Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration.
• Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)

Multifunction Control System

• Storage and documentation of programs.
• Save program information and back up the set values.
• RS-232 port (default) and RS-485 port (option) supported.
• Control and data processing by connecting up to 32 devices to PC at same time via RS-485 port.
• Reliable control with temperature/humidity auto-tuning and temperature calibration.
• PID zone subdivided into 9 zones for more precise control stability.
• Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
• Convenient checking with useful graph display.
• Save data as excel and text files.

Outstanding Safety

• Electronic over temperature shutdown system.(advanced over temperature (A-OT) limiter)
  Independent precision temperature sensor and controller for safer and more accurate over temperature shutdown.
• General-type over power shutdown system. (B-OT, backup over temperature limiter)
  A backup device for electronic system failure, mechanically preventing over temperature even when it occurs electronic errors.
• Ensures that the surface temperature is kept below 60°C.
• Low and empty water level alarm and automatic shut off.
• Door open warning and automatic shut off.
• Overcurrent and short circuit protection of device.
• Fuse installed for each heater for safety.
• Auto stop when operating current of compressor is overloaded.
